Author Topic: Quick Idea  (Read 3293 times)

Offline Blazinkaos

  • Technology Revolution
  • Art & Theme Team
  • E = MC² Mad Scientist
  • *
  • Posts: 2259
  • Post quality +12/-0
  • Gender: Male
  • Time Passes Will You
    • ROOKIE BUILDERS DISCORD
Quick Idea
« on: August 01, 2008, 01:53:32 AM »

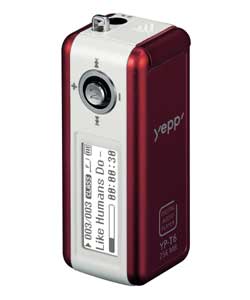

Ok I see how ppl are using the Razor X and all but as i was sorting through electronics i have i found this....



Yea its  pic of the internet but i actually have this devise and the analog on this may be small but would it be possible to use as a dual analog by any chance.
Suggestions Please..

Logged

*Thanks Modders/Friends:Ghost_Death, gr8npwrfl, Blizzrad, Kenshinffx.
*Thanks 802Chives for the Art position!

Offline Jumbo

  • Dr. Mod
  • BST BAN
  • Around the block
  • *
  • Posts: 2399
  • Post quality +0/-3
Re: Quick Idea
« Reply #1 on: August 01, 2008, 05:17:20 AM »
Is it an analog or just the kind that u push down on for the button you want?
Logged

Offline 4dP

  • Millennium Poster
  • *
  • Posts: 1426
  • Post quality +0/-0
  • Modder For Hire - AM Donator
    • Modder For Hire website Hire me
Re: Quick Idea
« Reply #2 on: August 01, 2008, 05:19:25 AM »
does are just like 4 tactile switches where the razor is like 8 in one for each direction
Logged

PINOY AKO

Offline Jumbo

  • Dr. Mod
  • BST BAN
  • Around the block
  • *
  • Posts: 2399
  • Post quality +0/-3
Re: Quick Idea
« Reply #3 on: August 01, 2008, 05:30:25 AM »
Thats what i was trying to say lol
Logged

Offline Blazinkaos

  • Technology Revolution
  • Art & Theme Team
  • E = MC² Mad Scientist
  • *
  • Posts: 2259
  • Post quality +12/-0
  • Gender: Male
  • Time Passes Will You
    • ROOKIE BUILDERS DISCORD
Re: Quick Idea
« Reply #4 on: August 01, 2008, 01:11:12 PM »
Quote
4 tactile switches

yes it is..
Logged

*Thanks Modders/Friends:Ghost_Death, gr8npwrfl, Blizzrad, Kenshinffx.
*Thanks 802Chives for the Art position!

Offline DubbleDutch

  • BlietZ Modding
  • Millennium Poster
  • *
  • Posts: 1234
  • Post quality +3/-0
  • Gender: Male


Re: Quick Idea
« Reply #5 on: August 01, 2008, 02:53:31 PM »
i made this quick in paint ;)
this explains all

Logged



To all of you crying about lag and kicks, remember… when Jesus died, took him 3 days to respawn. Now THAT is lag.

Offline Jumbo

  • Dr. Mod
  • BST BAN
  • Around the block
  • *
  • Posts: 2399
  • Post quality +0/-3
Re: Quick Idea
« Reply #6 on: August 01, 2008, 02:58:32 PM »
Ya it just would be the same either...

ANd it not gonna be much easier to use in FPS games any ways
Logged

Offline Blazinkaos

  • Technology Revolution
  • Art & Theme Team
  • E = MC² Mad Scientist
  • *
  • Posts: 2259
  • Post quality +12/-0
  • Gender: Male
  • Time Passes Will You
    • ROOKIE BUILDERS DISCORD
Re: Quick Idea
« Reply #7 on: August 01, 2008, 03:08:34 PM »
and also guys it can aslo click in as well..just to let ya kno. But yea i was looking through stuff found and thought it would be something to try out...and its small..but need a better grip to bush and that...
Logged

*Thanks Modders/Friends:Ghost_Death, gr8npwrfl, Blizzrad, Kenshinffx.
*Thanks 802Chives for the Art position!

Offline gr8npwrfl

  • Acid Modder
  • *
  • Posts: 582
  • Post quality +0/-0
  • Gender: Male
  • Ignorance is not fatal it can be cured
Re: Quick Idea
« Reply #8 on: August 01, 2008, 09:14:26 PM »
Hey DD

Isn't the one side of the razor switches all tied to ground ?
or Pwr ?
Logged

Offline DubbleDutch

  • BlietZ Modding
  • Millennium Poster
  • *
  • Posts: 1234
  • Post quality +3/-0
  • Gender: Male


Re: Quick Idea
« Reply #9 on: August 01, 2008, 11:49:43 PM »
gr8npwrfl can you explain the question ?
i don't get it? do you mean where you need to solder ?
Logged



To all of you crying about lag and kicks, remember… when Jesus died, took him 3 days to respawn. Now THAT is lag.

Offline gr8npwrfl

  • Acid Modder
  • *
  • Posts: 582
  • Post quality +0/-0
  • Gender: Male
  • Ignorance is not fatal it can be cured
Re: Quick Idea
« Reply #10 on: August 02, 2008, 12:57:16 AM »
Most of the time when switches are hooked to a micro
they switch to either power of ground.

I will open my psp and check my switches.

I think they are wired to ground I just did not know for sure.

So you really only need five wires for a razor.

One wire ties to one side of each of the four switches.

The other side goes to the one side of the internal switch.

Normally we wire each one separate because wiring them as jumpers
is very hard.

So in the case of using a razor for the remote headset mod.

One side of all four of the switches wire to ground
and the other side of the four switches wire to the remote buttons.

That way the razor will definitely work for a remote application
Logged

Offline Blazinkaos

  • Technology Revolution
  • Art & Theme Team
  • E = MC² Mad Scientist
  • *
  • Posts: 2259
  • Post quality +12/-0
  • Gender: Male
  • Time Passes Will You
    • ROOKIE BUILDERS DISCORD
Re: Quick Idea
« Reply #11 on: August 02, 2008, 09:42:10 PM »
ok so what bout this analog that i got from the mp3 is it like the same concept...i took it off the mp3 and it has 6 sections to solder wires to...
Logged

*Thanks Modders/Friends:Ghost_Death, gr8npwrfl, Blizzrad, Kenshinffx.
*Thanks 802Chives for the Art position!
