PspKicks316 · « **on:** December 31, 2008, 06:34:12 PM »

Yeah. I made an external module to plug into the RJ11 jack on any Guitar Hero guitar. I personally used my new GH:WT guitar for it.

*edit*
TEASER VIDEO:
http://www.youtube.com/watch?v=MkLedFVn0ww

Quote

This is just a teaser video, I'll have the guitar hero video up tonight.
This is only to show the module size, use, etc. and the rest will be up later on once I've fixed up my guitar(s).

Yes, I know it's CoD4. Yes, I'm expecting comments on that.
The reason I used this game to show the use off for STARTERS, is because when played CoD4 with the guitar, the player automatically looks to the right continuously. When the Auto-Whammy is plugged in, the player "shakes" back and forth because he is now trying to look to the right(in pulses) and continuously to the left.

You might not be able to see the "shaking" occurring, but it's there. In real life, it's much faster and noticeable. In the vid it's less frequent, but that's because of my piece of crap camera.

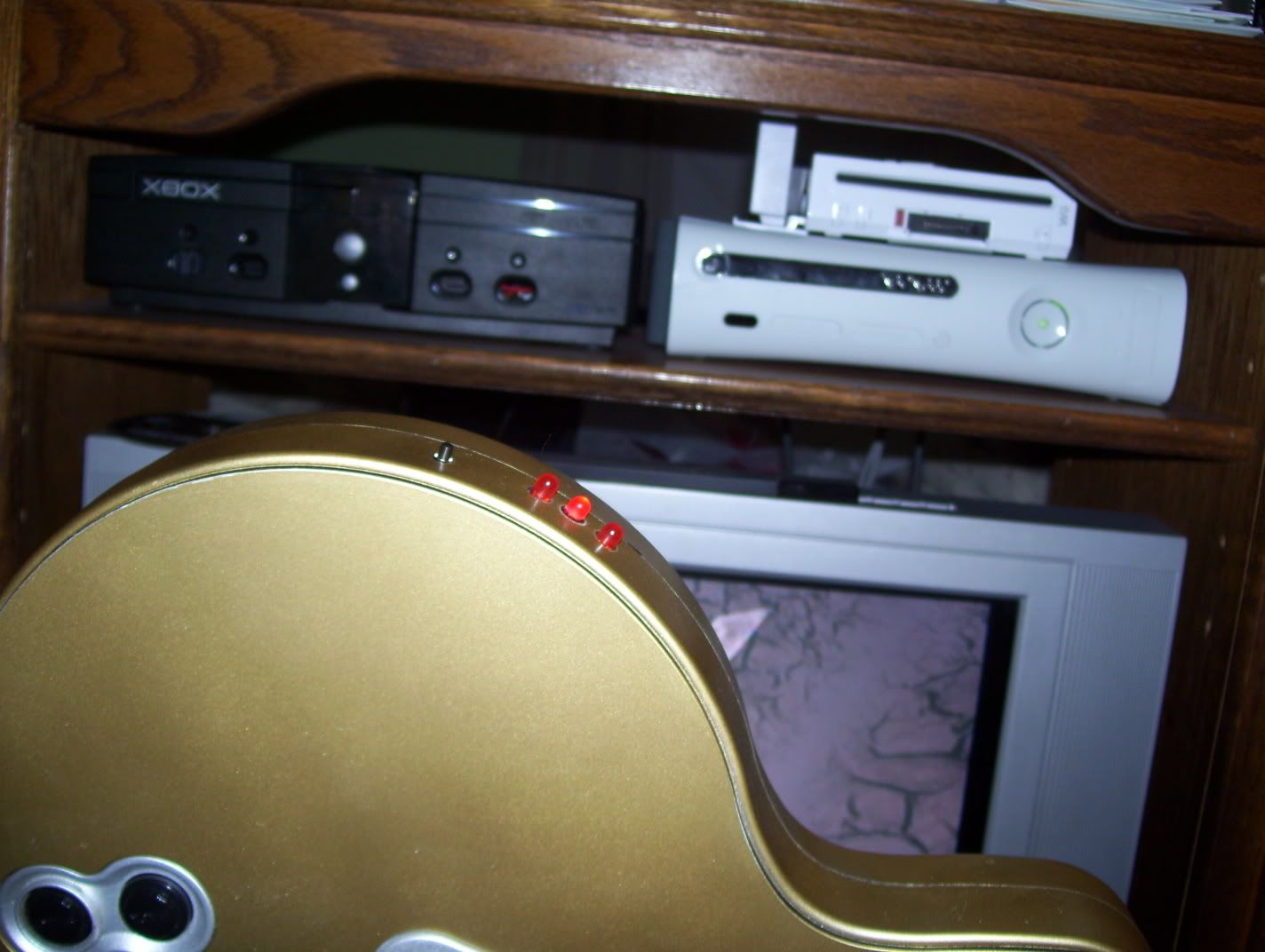

Size comparison to a regular AA battery:

Guitar Hero 3 guitar Auto-Whammy tutorial
Sorry about the crappy quality pics sorta. *CLICK PICS FOR FULL SIZE*

Part 1: Modding the Guitar Hero 3 guitar

Step1: Wiring the board

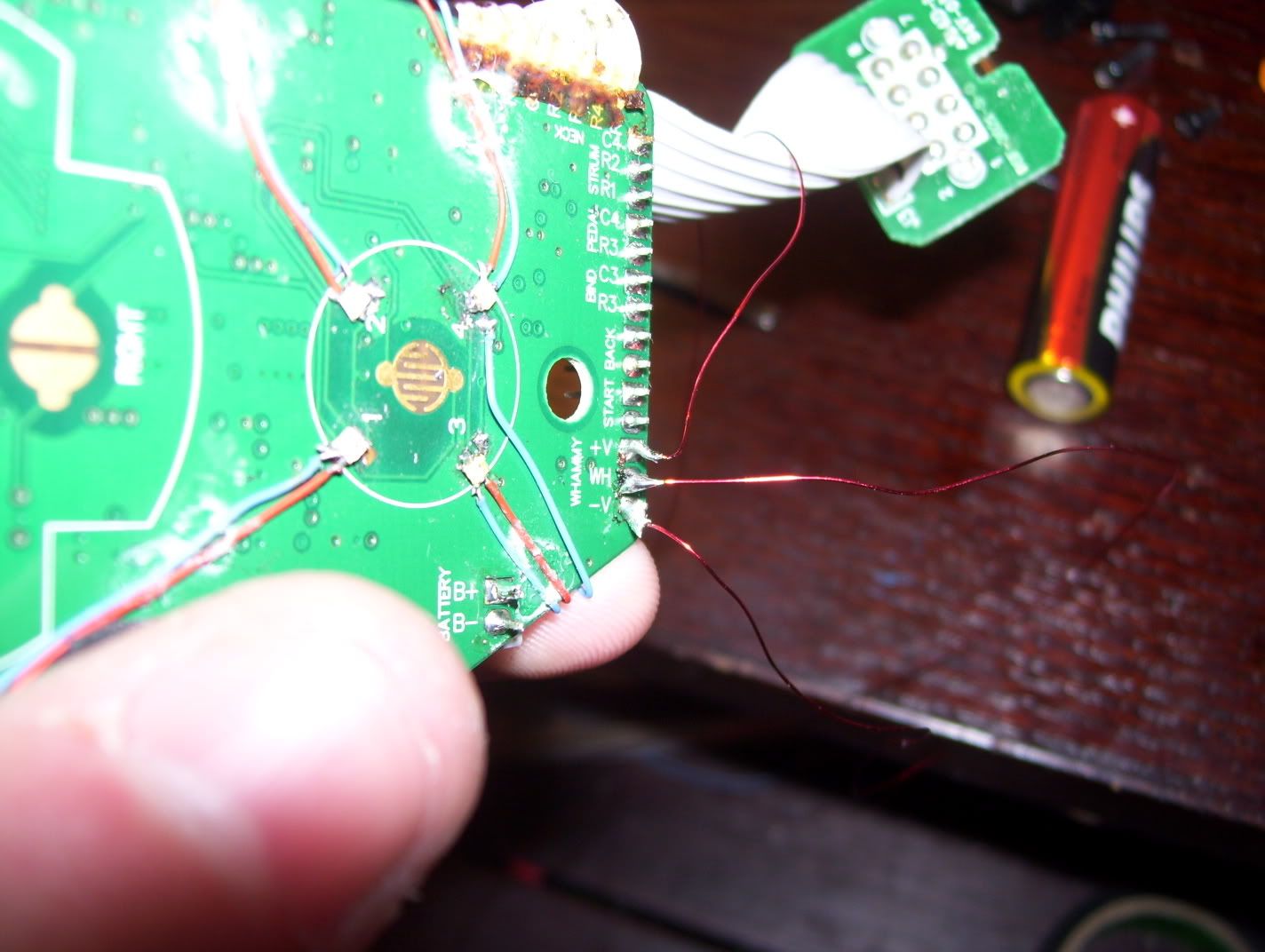

You're gong to take apart the whole guitar body, down to the main board. Flip over the board, and on the pins for the long connector you'll see +V, WH, and -V.
Wire 1 wire to each of these pins, keeping track of which wire is which.

Step2: Prepping the jack

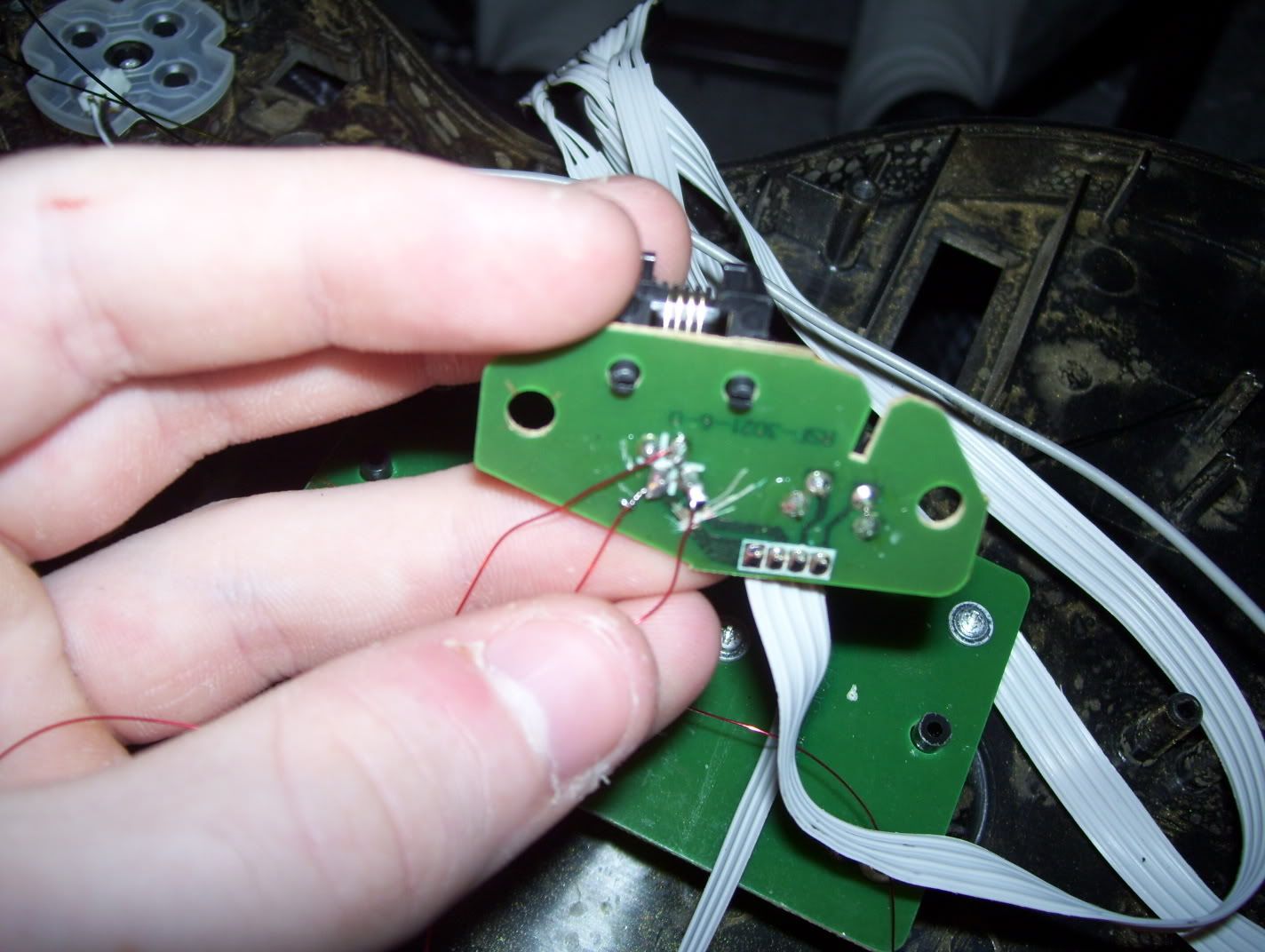

All you're doing here is cutting the 2 traces for the jack.

Step3: Wiring the jack
Looking at the jack oriented the way I have it in the picture, you're going to wire it up like this:
N/A WH
-V +V

That is, the pins farther away from you: Left is blank and right is WH. The pins closer to you, left is -V and right is +V.

Step4: The finished guitar
You're DONE. Just put the guitar back together and move on the the next part.

Part 2: The Whammy module

Step1: The connector
Just get any ordinary RJ11 cable that has all of the middle pins. Preferably get a 6pin cable. It's a fax cable, in case you didn't know.
There's 6 pins, the ones we're using are in bold here, so make sure your cable has those:
- - - - - -

Step2: The guitar jack
This really isn't a step, but really just a picture of how the jack is wired up right now, for reference reasons I guess.

Step3: Shaving the connector
At this point, what you're going to do is just shave down the little clip on the top of the connector so it's nice and smooth.

Step4: The wires
Here's a pic of the 6 wires for my cable. You're going to want to (IF YOU HAVE A 6 PIN) cut the far left wire, and the 2 far right wires.

Step5: The Whammy module
This is just a basic TLC555CP rapidfire module, the same as if it was in a controller. To make one, follow one of the MANY tuts on here. Be careful, as there's tuts for the CMOS 555 and the TLC555, which are different. One of the many tuts can be found right HERE.(Note: You do NOT need any potentiometers or the transistor for this...or a switch)

Step6: Wiring to the connector
Pretty basic, wire the left wire to +, the middle wire to trigger on the 555, and the right wire to GND.

blackburn · « **Reply #1 on:** December 31, 2008, 08:26:28 PM »

cant wait to see it! make a tut as well ill definitely do it.

PspKicks316 · « **Reply #2 on:** December 31, 2008, 08:28:48 PM »

Ehhh. Alright I'll make a tut, but only for the new World Tour guitar(my old GH3 guitar is...lost in my room somewhere...in pieces)

Ghost In Black · « **Reply #3 on:** December 31, 2008, 09:14:38 PM »

Sweet I'd definitly make that but I'm not electrical

so I'd need a tut

PspKicks316 · « **Reply #4 on:** January 01, 2009, 08:18:25 AM »

Come on no one else is interested in this?

Skullmaster · « **Reply #5 on:** January 01, 2009, 09:37:26 AM »

I think that jack is made for a foot whammy bar isn't it? Thats what I allways thought it was for anyhow

PspKicks316 · « **Reply #6 on:** January 01, 2009, 10:26:08 AM »

Don't know. I've never seen anything out there. And looking inside the controller, 2 of the pins are shared with the sync button o_O

robin1989 · « **Reply #7 on:** January 01, 2009, 01:37:48 PM »

i cant wait to see a video

PspKicks316 · « **Reply #8 on:** January 01, 2009, 02:06:34 PM »

Just got back from Radioshack... ;D
Working on it now to finalize it and then I'll be working on something I've wanted to make for a longgg time.

PspKicks316 · « **Reply #9 on:** January 01, 2009, 03:15:31 PM »

Teaser video being uploaded.

Dinner time, I'll post the teaser once I get back.

*edit* teaser video now up
Sorry for the bad quality. I had lights on in my room too... weird. It's brighter on my camera. Oh well, the real video will be up later today.

PspKicks316 · « **Reply #10 on:** January 01, 2009, 08:34:25 PM »

Tutorial for the Guitar Hero 3 guitar is up now. Tut for the GH:WT guitar is coming tomorrow. It's basically the same.

Video coming tomorrow sometime, either before or after my friends get here/leave. Lol.
Tell me what you think, any improvements, the usual.

And in case any of you are wondering, you're allowed to double post for updates.

Modded Matt · « **Reply #11 on:** January 02, 2009, 07:47:04 AM »

why??? this port was made for a foot pedal that Microsoft dropped because most people don’t care about the whammy. this is going to make every note distort with the whammy. please explain the point. I have the guitar hero games and I don’t believe you get extra points fo using the whammy. the only thing being accomplished her is distorted music.

however, nice initiative on your part to think of something completely useless, I hope you had fun building this. you do know Google has many listings for the use of this jack? did you know if you look hard enough you can find a foot pedal that’s been modified to work with the guitar and you don’t have to open the guitar. that port is made for power supply and whammy input, why are you cutting traces? whatever, LOL have fun

PspKicks316 · « **Reply #12 on:** January 02, 2009, 10:06:01 AM »

Uhm, screw you?
Get out of my thread if you don't have anything nice to say.

Maybe I wanted to make this? Ever think of that?
There's TWO TRACES on the gh3 guitar jack. TWO. That will NOT provide power and whammy.
I don't care what you say about this, just shut up and butt out if you don't like it.

kink192 · « **Reply #13 on:** January 02, 2009, 11:53:19 AM »

@modded matt:
dude, the best way to gain star power is with the whammy. wiggling it back and forth during a glowing blue note will gain it faster, the 555 simulates someone pushing the whammy bar back and forth. and yes it does gain points, not all notes will sound distorted either numbnuts, only longer ones and its a varying distortion, if he boosts the transition speed it might not even be noticable.

awesome work kicks.

sean7341 · « **Reply #14 on:** January 02, 2009, 12:07:28 PM »

Wait, I'm kind of confused.

This lets your whammy move back and forth really fast?

robin1989 · « **Reply #15 on:** January 02, 2009, 12:29:40 PM »

Quote from: sean7341 on January 02, 2009, 12:07:28 PM

Wait, I'm kind of confused.

This lets your whammy move back and forth really fast?

it makes the wammy , wammy all the time so that you dont have to do it yourself

PspKicks316 · « **Reply #16 on:** January 02, 2009, 03:23:38 PM »

You know, no one appreciates anything but the "big mods" anymore. You've really got to WOW everyone to get even the slightest bit of positive feedback. I'm not posting a video, there's no point to it. TUT DOWN. PM me if you want it, but don't act like a

like some people.

OH by the way modded matt. Have you noticed that most of the mods on this site are completely useless? LEDs don't do ANYTHING to the console/controller/etc. yet people are always doing that. Yet, when I do one mod that you may think is useless, but it actually serves a purpose, you yell at me and flame? Go to hell.

blackburn · « **Reply #17 on:** January 02, 2009, 08:04:51 PM »

Quote from: PspKicks316 on January 02, 2009, 03:23:38 PM

You know, no one appreciates anything but the "big mods" anymore. You've really got to WOW everyone to get even the slightest bit of positive feedback. I'm not posting a video, there's no point to it. TUT DOWN. PM me if you want it, but don't act like a mother:censored:ing like some people.

OH by the way modded matt. Have you noticed that most of the mods on this site are completely useless? LEDs don't do ANYTHING to the console/controller/etc. yet people are always doing that. Yet, when I do one mod that you may think is useless, but it actually serves a purpose, you yell at me and flame? Go to hell.

i agree 100% kicks. moddedmatt you just need to GTFO, kicks did this, and was successful. its not modding if you just make something for a plug thats already there. It seems now days you have to program a micro processor and add 400 LEDs and an LCD panel into a damn coffee cup and turn it into a full blown computer, just to get a "eh thats pretty cool i guess"

bustinthejustin · « **Reply #18 on:** January 02, 2009, 08:36:06 PM »

Quote from: modded matt on January 02, 2009, 07:47:04 AM

why??? this port was made for a foot pedal that Microsoft dropped because most people don’t care about the whammy. this is going to make every note distort with the whammy. please explain the point. I have the guitar hero games and I don’t believe you get extra points fo using the whammy. the only thing being accomplished her is distorted music.

however, nice initiative on your part to think of something completely useless, I hope you had fun building this. you do know Google has many listings for the use of this jack? did you know if you look hard enough you can find a foot pedal that’s been modified to work with the guitar and you don’t have to open the guitar. that port is made for power supply and whammy input, why are you cutting traces? whatever, LOL have fun

nice initiative on your part to be a complete douche.

PspKicks316 · « **Reply #19 on:** January 02, 2009, 10:00:02 PM »

Quote from: bustinthejustin on January 02, 2009, 08:36:06 PM

nice initiative on your part to be a complete douche.

That made me laugh really hard.

robin1989 · « **Reply #20 on:** January 03, 2009, 03:27:21 AM »

kicks just ignore him - no need to punish all the other users and members just because of his post. i personally liked it and thought it was usefull

PspKicks316 · « **Reply #21 on:** January 03, 2009, 06:19:26 AM »

Ugh fine.

sean7341 · « **Reply #22 on:** January 03, 2009, 08:54:57 AM »

Yeah, I didn't think there were any useful mods for guitars.

I would actually do this.

blackburn · « **Reply #23 on:** January 03, 2009, 09:11:28 AM »

yeah i have an extra TLC555 rapid fire chip i made, i think ill make this with it instead.

PspKicks316 · « **Reply #24 on:** January 03, 2009, 09:23:33 AM »

Yay~
=D

Slim Hacker · « **Reply #25 on:** January 03, 2009, 09:00:01 PM »

Hey is it the same for the PS3 GH3 controller?
also what screwdriver/bit do you use to open the guitar?
The reason im asking is that I love this mod and want to do it!!!

PspKicks316 · « **Reply #26 on:** January 03, 2009, 09:19:45 PM »

Ps3 guitar should be the same.
And, I don't know the bit. I've got a screwdriver set here and I just pick what fits. lol

Slim Hacker · « **Reply #27 on:** January 03, 2009, 09:52:03 PM »

Well at least I know it should be the same I have no clue about the screwdriver bit it looks like a hex bit but I dont know

PspKicks316 · « **Reply #28 on:** January 04, 2009, 08:44:44 AM »

The one I used was slightly bigger than the regular controller bit. So, I'm guessing it's just the next size up. I don't know the controller size either, because I just use my special screwdriver from a faceplate or the bits in my box. I've got the Zoozen Pro Access Toolkit V2. =]

Modded Matt · « **Reply #29 on:** January 04, 2009, 09:19:44 AM »

pspskicks, I appologize for my origional statment. I should not have been so closed to this, it is a good Idea, I was just turned by the fact that it was you doing this. I was being a jerk and I am sorry. I would really like to see this work.

PspKicks316 · « **Reply #30 on:** January 04, 2009, 09:34:19 AM »

It DOES work. I just haven't posted a video of it. in guitar hero, and quite frankly, I don't think it will show good on my camera, since my cam couldn't even pick it up in CoD. I'd need to find a song with long star power cords...if you know a song in gh3 or world tour, then post it and I'll make the vid.

Slim Hacker · « **Reply #31 on:** January 04, 2009, 09:39:46 AM »

I THINK in gh3 "hit me with your best shot" i THINK it has some long star power chords
Ill get on mine and check for ya

EDIT: The very beginning has som moderate chord not star power and a few moderate star power chords
Hope that helped!

PspKicks316 · « **Reply #32 on:** January 04, 2009, 09:53:15 AM »

Problem being, my camera doesn't seem to be fast enough to put up the regular cords. If it was long star power ones, I could show how it's giving me the star power without me pressing the whammy. I'll play in a few minutes and try to find something.

Slim Hacker · « **Reply #33 on:** January 04, 2009, 10:24:15 AM »

ok good luck

Modded Matt · « **Reply #34 on:** January 05, 2009, 07:47:07 AM »

Kicks,

can you list the pinouts for the factory r22 plug? if you look you see a small 4. what are the pins wired two, by default? my wife dont want me to take apart the guitar. there is a supply voltage of 1.3v on one of the pins, but no ground. one of the factory pins should be an input for the whamy, so I am being told

PspKicks316 · « **Reply #35 on:** January 05, 2009, 02:24:29 PM »

Don't know. My port had 2 traces and they were shared with the sync button...Oh well.

I'll eventually get a vid up. It's whether or not I can find the damn whammy module I made, cuz I lost it in my room...

bustinthejustin · « **Reply #36 on:** January 05, 2009, 03:00:39 PM »

LMAO time to clean up your room?

PspKicks316 · « **Reply #37 on:** January 05, 2009, 03:31:02 PM »

Nah just dunno where I placed it. It is small afterall.

Slim Hacker · « **Reply #38 on:** January 05, 2009, 06:20:11 PM »

Quote from: PspKicks316 on January 05, 2009, 03:31:02 PM

It is small afterall.

Thats what she said nah j/k
but seriously man find that.

PspKicks316 · « **Reply #39 on:** January 05, 2009, 06:24:16 PM »

I lol'd hard xD

Slim Hacker · « **Reply #40 on:** January 05, 2009, 06:27:26 PM »

Quote from: PspKicks316 on January 05, 2009, 06:24:16 PM

I lol'd hard xD

When I saw that I knew Ihad to post that,
But yeah seriousley you need to find that.

PspKicks316 · « **Reply #41 on:** January 05, 2009, 06:34:01 PM »

Found it.

Under the couch cushions ftw!

Slim Hacker · « **Reply #42 on:** January 05, 2009, 06:44:42 PM »

Yes iroicly thats where I found the wireless adapter for my GH controller for my PS3!
