Author Topic: cod5 4 mode sleeper wiring diagram for cg?  (Read 1520 times)

Offline dlow87

  • Guppy
  • *
  • Posts: 2
  • Post quality +0/-0
cod5 4 mode sleeper wiring diagram for cg?
« on: January 10, 2009, 05:55:57 PM »
Does anyone have the wiring diagram for the cod 5 4 mode sleeper kit for cg? I just got it and wanted to get er done.
Logged

Offline KingMike_OS

  • Shop Owner - Products & Support
  • Acidmods Alumni
  • Acid Modder
  • *
  • Posts: 929
  • Post quality +14/-0
  • Gender: Male
  • R&D
    • Modding Shop At the end of the Universe
Re: cod5 4 mode sleeper wiring diagram for cg?
« Reply #1 on: January 10, 2009, 08:32:06 PM »
sorry i have not got the TUT done .. been busy replacing all my USPS Lost order  I hope this Helps  :sadno:

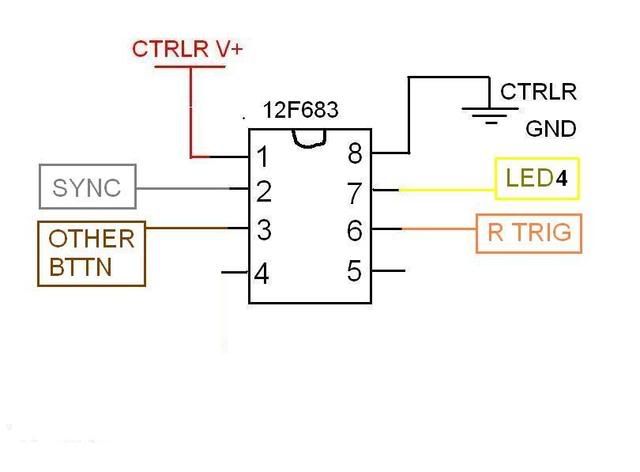

here the Pin Out : Sleeper COD 5


Led Pin 7


D pad Point for On/Off Rapid Fire Pin 3


« Last Edit: January 10, 2009, 08:56:40 PM by KingMike_OS »
Logged

Offline dlow87

  • Guppy
  • *
  • Posts: 2
  • Post quality +0/-0
Re: cod5 4 mode sleeper wiring diagram for cg?
« Reply #2 on: January 12, 2009, 07:08:50 AM »
Thanx Mike this sh_t is tight!
