Author Topic: My Dual Analog Mod ...so far (Read 15932 times)

Blazinkaos · « **Reply #30 on:** April 23, 2009, 08:31:47 AM »

i kno how u feel man i messed up 3 spring doing mine i finally got it working a bit i have video of testing it out.

alentris · « **Reply #31 on:** April 23, 2009, 04:50:27 PM »

Quote from: bustinthejustin on April 22, 2009, 08:11:03 PM

Hot glue ftw?

DUDE agreed... My mod I'm just finishing would fail without hot glue...

Blazinkaos · « **Reply #32 on:** April 23, 2009, 05:44:16 PM »

u got glue your bourd to the top part of nub cuz i first use super glue then i hot glue it down

Tri-edge · « **Reply #33 on:** April 23, 2009, 09:29:42 PM »

ok I sent you some wire today. It should be there in a couple of days. Hope you can finish this

Blazinkaos · « **Reply #34 on:** April 24, 2009, 11:43:27 AM »

well if he got that far he should i faith in him

kemolagger · « **Reply #35 on:** April 25, 2009, 10:40:40 AM »

Well right now my biggest problem(besides my

spring being broken) is every time I try to test out the razor X with all the wires soldered, one or two will pop off, then when I resodler those wires, the hot glue on the other wires comes off. It's a lose/lose battle for me right now. Granted, I'm just practicing until I get the 30AWG from Tri.

Blazinkaos · « **Reply #36 on:** April 25, 2009, 01:39:30 PM »

oh man i havuing that issue to use electric tape to hold it down on the razor thats what im doing its working out for me

kemolagger · « **Reply #37 on:** April 25, 2009, 11:57:26 PM »

This mod is really starting to piss me off! I've alread gone through 3 nubs trying to get the razor X done right. Trying to troubleshoot exactly how much solder each point needs, which is a pain in the ass and takes a lot of time. I have to apply a little bit of solder, then glue it, test all 4 directions, take it apart, apply solder, glue it, test it, take it apart, etc etc!!!! It's a long process! I'm also having trouble fitting the nub into the case, I've already shaved off what I could from the power jack, cut a hole in the frame, but it sitll isn't fitting. I can only cut so much away from the X button. I've even tried putting it in w/o the power jack and taking off alot of the plastic pieces to get it to fit, and it's definitely a pain!!!! ARGH!!! I thought the hardest part would be soldering the wires to the mobo...turns out that's the easiest part. Shoot me some advice fellas!

Alien_X · « **Reply #38 on:** April 26, 2009, 12:05:46 AM »

Nope, epoxy "ftw"

Blazinkaos · « **Reply #39 on:** April 27, 2009, 10:57:30 PM »

u could do that one mod where u solder a mini usb to replace the jack.

kemolagger · « **Reply #40 on:** May 03, 2009, 09:52:47 AM »

UPDATE:

I've moved my power jack to the left side underneath the left analog, it fits nicely and looks pretty good. I'm still troubleshooting the right analog stick. I'll get it working and then install it, and either a wire will pop off the solder point or the spring will mess up inside the razor X and not work properly. Thanks to Tri-Edge for the 30AWG, the mod definitely looks better. I've ordered 2 more analog nubs and another razor x because I keep messing them up trying to troubleshoot it. It's definitely a long process, longer than I had anticipated.

DarkShot · « **Reply #41 on:** May 03, 2009, 10:10:11 AM »

Good spot for the charge port

Tri-edge · « **Reply #42 on:** May 03, 2009, 06:31:03 PM »

glad to see you go the wire

kemolagger · « **Reply #43 on:** May 03, 2009, 06:37:42 PM »

Ahhhhh! I just ripped my power ribbon for the power board(:censored:ing hot glue!) This mod is definitely testing my patience. I ordered a new one for 1-2 day shipping so hopefully I'll get it sometime this week. I'm not even going to touch my psp until this weekend because I'm so irritated with this mod. While I wait, I'm trying to figure out some CFW worked up. I've been searching the web for the last few days. I've got my pandora battery ready, but I can't find out where to start from scratch. Most CFW mods I've looked at require another version of CFW. I need to know "where to begin".

What I have:

Pandora battery
4 GB stick
PSP 2000 with OFW 5.50
PSP Pandora Deluxe 3.1

I know that some motherboards don't support CFW, I'll be looking at that later this week. If anyone can give me the basic begginner steps of what to do, I gladly appreciate it (I know that this should be posted in the CFW boards, but like I said, I can't find one that starts from scratch.)

bustinthejustin · « **Reply #44 on:** May 03, 2009, 06:46:19 PM »

It's simple

I can't remember step-by-step, because I haven't done this in a while, but I can give you the basic tuts that you will need.

1. Make pandora
2. Install latest vestion of DC onto a memory stick (newest is DCV8, I think? Idk.) I think PSP Pandora Deluxe will allow you to do it. Just find a guide on how to use PSP Pandora Deluxe.
3.stick your memory stick in, put your pandora battery in, and follow on-screen instructions. Actually, there should be a guide on how to use DCV8.

Loads of info can be found on psp-hacks.com

JoblessPunk · « **Reply #45 on:** May 03, 2009, 06:50:18 PM »

Quote from: kemolagger on May 03, 2009, 09:52:47 AM

UPDATE:

I've moved my power jack to the left side underneath the left analog, it fits nicely and looks pretty good. I'm still troubleshooting the right analog stick. I'll get it working and then install it, and either a wire will pop off the solder point or the spring will mess up inside the razor X and not work properly. Thanks to Tri-Edge for the 30AWG, the mod definitely looks better. I've ordered 2 more analog nubs and another razor x because I keep messing them up trying to troubleshoot it. It's definitely a long process, longer than I had anticipated.

I really like where you put that.
Just one question, is it hard to plug in the charger?
I could see the actual plug hitting the frame and not be able to be plugged in all the way...

kemolagger · « **Reply #46 on:** May 03, 2009, 07:42:16 PM »

@ Jobless

No, it fits really good, just have to make sure the angle is good.

EliteGamer83 · « **Reply #47 on:** May 03, 2009, 08:26:32 PM »

hmm I like it but I woulda put it at the top next to the wifi button on the left side from the front. Then no worrys of the hassle of trying to get it plugged in just right for it to fit all the way.

non the less *claps* great job on it.

Blazinkaos · « **Reply #48 on:** May 03, 2009, 10:23:15 PM »

Very nice man i love the spot where you placed it. After seeing this should do well when im finishing up my razor.

Nice job.

Quote

I've moved my power jack to the left side underneath the left analog, it fits nicely and looks pretty good.

Do have any pic of you wiring it up lets see how your wiring turned out.

kemolagger · « **Reply #49 on:** May 04, 2009, 04:25:57 PM »

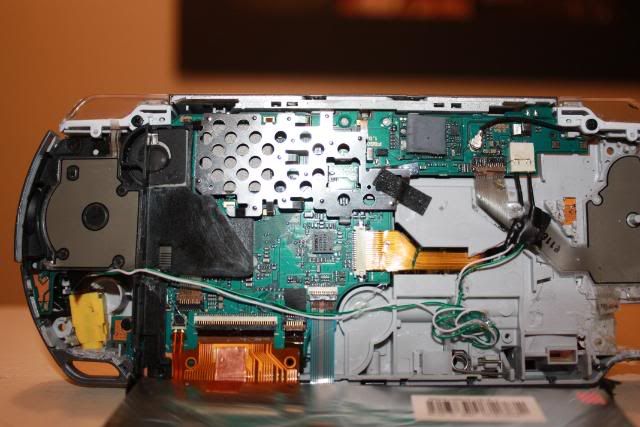

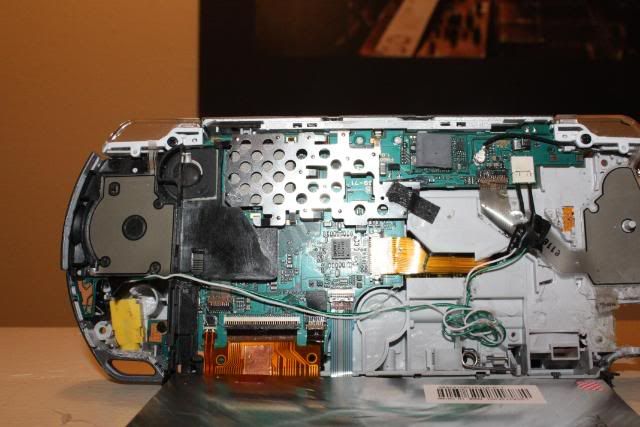

Don't mind the body that was cut away just below the power jack ( right above the retaining loop on the bottom left) I think I did that when I was trying to figure which was the best way to run the wires. I eventually figured that tucking the wires from the jack underneath the D-pad board and then over the motherboard was the best way. Always test your power when you move your wires around and tuck them away and move on to the next part.

bustinthejustin · « **Reply #50 on:** May 04, 2009, 06:00:10 PM »

Wow that is A LOT of wiring stuffed there O_o Some cutting, quick soldering, and electrical tape could fix that

kemolagger · « **Reply #51 on:** May 04, 2009, 07:15:59 PM »

Yeah I know, I spent so much time on this mod that I told myself I would take a break until the weekend. I'll trim up that excess wire when I work on the rest of it this weekend.

Blazinkaos · « **Reply #52 on:** May 04, 2009, 09:41:04 PM »

Yea just trim some of that wire and it should be fine. But other then that nice job its still good look.

seriouslysilly · « **Reply #53 on:** May 06, 2009, 09:01:37 AM »

Keep it up, I'm sure you'll get it sooner or later.
GJ on moving the charging slot.

I have been keeping my eye on this thread as I,too, am planning on doing it. Just ordered the kit and clear case a few days back. Figured this thread will help me with anticipating the common fitting problems and soldering.

Thanks for keeping us all updated.

kemolagger · « **Reply #54 on:** May 06, 2009, 06:26:42 PM »

NP. For some reason I'm having trouble (charge not working) with the wire that I used for the power jack. I'm using the stranded wire from a CAT 5 (LAN network cable) to extend from the power jack to the power plug in for the motherboard, not really sure why it was acting up. Too small of a wire?! Anyways, if you can get your hands on some 28 stranded wire, you shouldn't have any problems(I'm assuming that the wire used for the power jack is 28g, I'm just eyeballin it so anyone that knows please correct me)

Blazinkaos · « **Reply #55 on:** May 06, 2009, 10:33:51 PM »

Hmm i dnt think it matters what wire you use but i may be wrong. Ill try this with the wire i have 30g. kemolagger have tried placing the wire under the mobo instead of on top there actually space under it that should get in the way
