treemty's 360 worklog --Black Hawk-- FINISHED updated with pics and vids
« on: May 12, 2009, 03:17:42 PM »
may 24th:FINISHED!!
my modded xbox 360 in its current state 5/24/09  --Black Hawk--








may 12th:

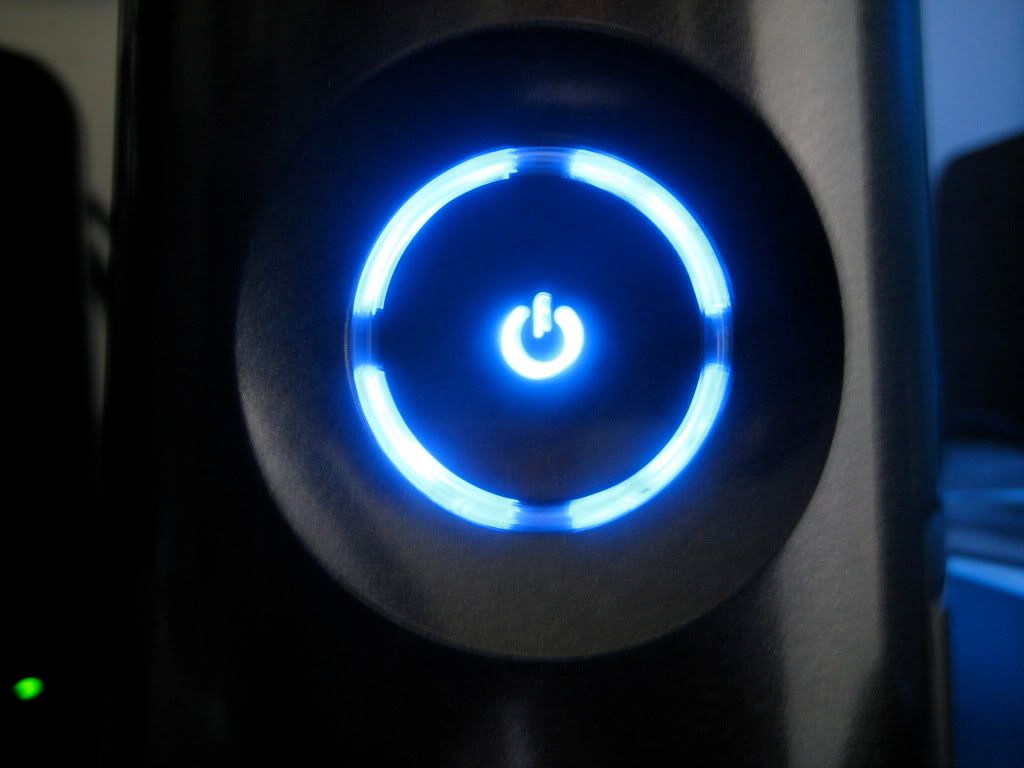

extra fan installed, 12V mod finished, case back from blackburn, cold cathodes installed, dvd drive window installed and flashed as well as an rol swap
cutting window right now, adding a pot so I can manage the fan speeds, also adding some more leds later
pics for now:

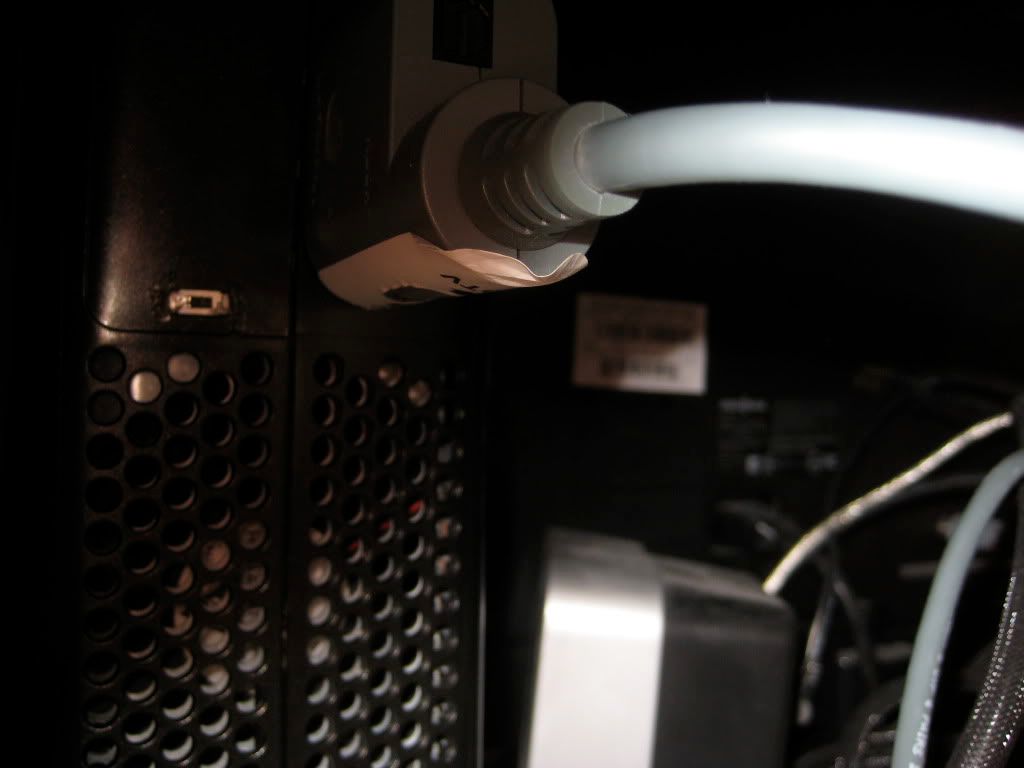

the silver wire is for the cold cathodes...it leads into the inverter
« Last Edit: May 24, 2009, 10:18:13 AM by treemty »
Logged

Offline PspKicks316

  • Acidmods Alumni
  • Mad Bomber
  • *
  • Posts: 5709
  • Post quality +5/-4
  • Gender: Male
Re: treemty's 360 worklog
« Reply #1 on: May 12, 2009, 04:00:24 PM »
Ooo I like it. Care to share the plans?
Logged

Offline treemty

  • l,,l METAL l,,l
  • Millennium Poster
  • *
  • Posts: 1231
  • Post quality +1/-0
  • Gender: Male
  • Will mod for food
    • the1337group.com
Re: treemty's 360 worklog
« Reply #2 on: May 12, 2009, 04:18:39 PM »
sure,
there will be 2 cold cathodes going down the side(blue)
some blue 3mm leds or smd(3mm blue are hard to find around here for some reason) under the fan, as well as on the top and bottom,
I am adding a pot( for fan speed) either plugged into a usb jack(that I will add), serial jack, direct cable into the box and into a project box...or sitting on top(in front of HDD under the trim, because the only pot usable for this project that I could find at radioshack has this REALLY long shaft(which id rather not cut) and has a rather large base lol... what do you guys think? project box, or on top(there is enough space, I already checked with a dummy 360), then USB or serial?(either one does not matter)

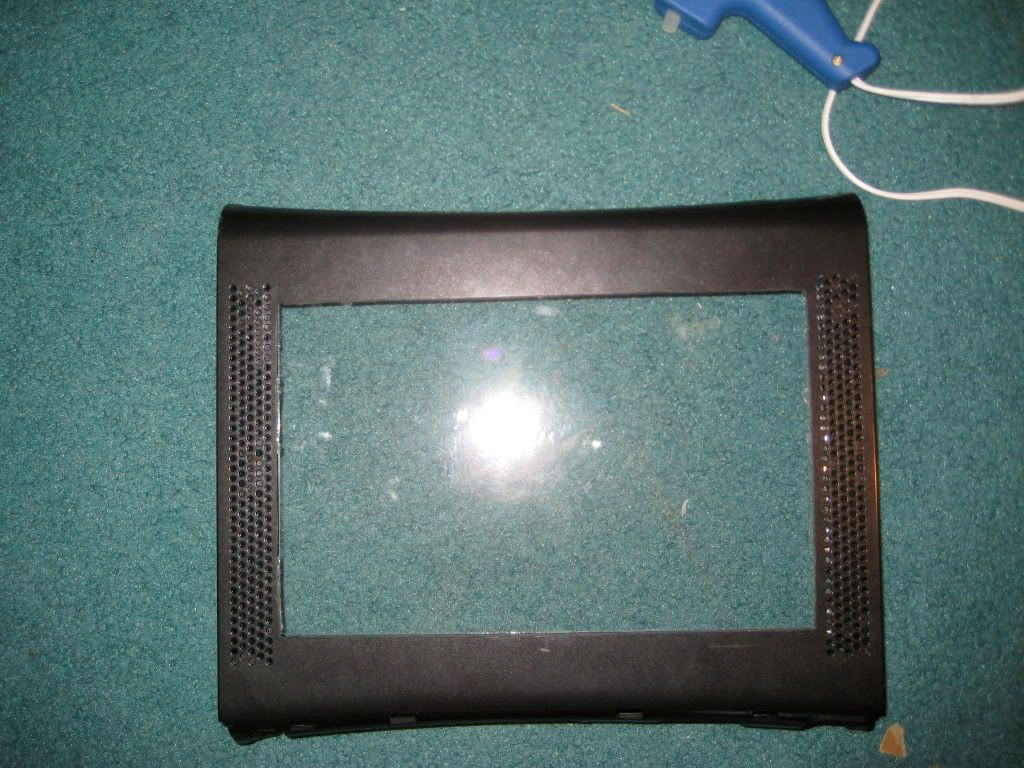

I will update pics in a bit, I got the window in
Logged

Offline treemty

  • l,,l METAL l,,l
  • Millennium Poster
  • *
  • Posts: 1231
  • Post quality +1/-0
  • Gender: Male
  • Will mod for food
    • the1337group.com
Re: treemty's 360 worklog
« Reply #3 on: May 12, 2009, 04:40:16 PM »






DONT WORRY i haz test dummy(where I put the pot)
Logged

Offline Ghost In Black

  • Chaos Lover
  • *
  • Posts: 258
  • Post quality +0/-0
  • Gender: Male
Re: treemty's 360 worklog --Black Hawk--
« Reply #4 on: May 13, 2009, 05:48:22 AM »
Nice job. I'm doing almost the same thing, but I'm also putting in a switch for turning on/off the cold cathodes. I have no clue where to put it. Any ideas?
Logged

Offline treemty

  • l,,l METAL l,,l
  • Millennium Poster
  • *
  • Posts: 1231
  • Post quality +1/-0
  • Gender: Male
  • Will mod for food
    • the1337group.com
Re: treemty's 360 worklog --Black Hawk--
« Reply #5 on: May 13, 2009, 12:43:47 PM »
Quote from: Ghost In Black on May 13, 2009, 05:48:22 AM
Nice job. I'm doing almost the same thing, but I'm also putting in a switch for turning on/off the cold cathodes. I have no clue where to put it. Any ideas?
im putting in 2-3 switches on the back, next to the fan
Logged

Offline psp339

  • Millennium Poster
  • *
  • Posts: 1371
  • Post quality +0/-0
  • Gender: Male
Re: treemty's 360 worklog --Black Hawk--
« Reply #6 on: May 14, 2009, 04:31:41 PM »
It would look better if the window had rounded corners.   :yess:
Logged

Offline whuthefxk

  • King of the Wii-tards
  • *
  • Posts: 181
  • Post quality +1/-0
  • Gender: Male
Re: treemty's 360 worklog --Black Hawk--
« Reply #7 on: May 18, 2009, 05:42:46 PM »
LOL looks like a wifi antenna on ur xbox! never seen a pot with a knob THAT long! lol great work!
Logged
MY CONSOLE LIST:

-1 PS   )                -1 GameCube
-1 PS2 (fa              -2 OG Gameboys
-1 PS2 (slim           -2 color gameboys -1 PS3                   -1 GBA -5 PSP                   -1 Gameboy SP -1 iPod TOUCH                   -2 NDS w/r4 -1 iPod video 5g                 -1 Wii -1 iPod nano (2-1g)(1-3g)    -1 Sega Genisis -2 NES                             -1 Atari Lynx -1 Gameboy micro

Offline treemty

  • l,,l METAL l,,l
  • Millennium Poster
  • *
  • Posts: 1231
  • Post quality +1/-0
  • Gender: Male
  • Will mod for food
    • the1337group.com
Re: treemty's 360 worklog --Black Hawk--
« Reply #8 on: May 18, 2009, 06:06:29 PM »
I broke the pot(yes i know, fail) so its been repl;aced by a slide switch between 6v and 12v
Logged

Offline treemty

  • l,,l METAL l,,l
  • Millennium Poster
  • *
  • Posts: 1231
  • Post quality +1/-0
  • Gender: Male
  • Will mod for food
    • the1337group.com
Re: treemty's 360 worklog --Black Hawk-- FINISHED updated with pics and vids
« Reply #9 on: May 24, 2009, 10:18:54 AM »
updated/bump/finished?
Logged

Offline RoBot1ks

  • Club AM VIP
  • Acid Modder
  • *
  • Posts: 671
  • Post quality +0/-0
  • Gender: Male
  • 1 r n00ber
    • Myspace
Re: treemty's 360 worklog --Black Hawk-- FINISHED updated with pics and vids
« Reply #10 on: May 24, 2009, 10:42:10 AM »
Dude great job. That looks great!
I am having full urges to enter the 360 scene... :boxed:
Logged

Offline robin1989

  • Site Owner - Site Maintenance & development
  • Administrator
  • Mad Bomber
  • *
  • Posts: 6272
  • Post quality +21/-0
  • Gender: Male
  • Site owner
    • Acidmods
Re: treemty's 360 worklog --Black Hawk-- FINISHED updated with pics and vids
« Reply #11 on: May 24, 2009, 01:31:05 PM »
looks very good treemety good job
Logged

i am not responsible for what i do or my advice


Get the iPhone 4s from Three using Quidco and recieve £109 cashback

Offline treemty

  • l,,l METAL l,,l
  • Millennium Poster
  • *
  • Posts: 1231
  • Post quality +1/-0
  • Gender: Male
  • Will mod for food
    • the1337group.com
Re: treemty's 360 worklog --Black Hawk-- FINISHED updated with pics and vids
« Reply #12 on: May 25, 2009, 10:32:34 AM »
thx
i might sell this box, so I can purchase a jasper and water cool it ;)
shoot me a pm if ur interested
EDIT! I ordered a new hard drive shell and clear twilight fan shroud, and might be ordering new rear fans so they are quieter lol
