Author Topic: PS3 Controllers...  (Read 15731 times)

Offline Ben.

  • Club AM VIP
  • Acid Modder
  • *
  • Posts: 657
  • Post quality +2/-0
  • Gender: Male
PS3 Controllers...
« on: June 27, 2009, 12:49:18 AM »
Right I'm new to the PS3, So I just need some info...

1. What different types of PS3 controller are there?

2. What are the voltages of each one?

Thank-You

Ben

Offline budgray19

  • Acidmods Alumni
  • E = MC² Mad Scientist
  • *
  • Posts: 2134
  • Post quality +1/-0
  • Gender: Male
  • OH NO MY CHITTY CHICKEN, NOO NOT MY CHITTY BEEF
Re: PS3 Controllers...
« Reply #1 on: June 27, 2009, 09:20:47 AM »
dual shock2
and dual shock 3
i think they only sell dual shock 3 controllers
has 6axsis and rumble
dual shock 2 had only 6axsis
i dont know voltages of them


Offline Ben.

  • Club AM VIP
  • Acid Modder
  • *
  • Posts: 657
  • Post quality +2/-0
  • Gender: Male
Re: PS3 Controllers...
« Reply #2 on: June 27, 2009, 09:26:08 AM »
dual shock2
and dual shock 3
i think they only sell dual shock 3 controllers
has 6axsis and rumble
dual shock 2 had only 6axsis
i dont know voltages of them

That was kinda confusing.. :S

So There Are 2 Types?

Dual Shock 2 - Only has 6 Axis..

And

Dual Shock 3 - Both Rumble Motors And Six Axis

Any one know the voltages on both of these controllers, and are they the only 2 types?

Thankss :D

Offline Tri-edge

  • I found Nemo!!
  • Around the block
  • *
  • Posts: 2381
  • Post quality +4/-0
  • Gender: Male
  • Azure knight
Re: PS3 Controllers...
« Reply #3 on: June 27, 2009, 04:19:50 PM »
That was kinda confusing.. :S

So There Are 2 Types?

Dual Shock 2 - Only has 6 Axis..

And

Dual Shock 3 - Both Rumble Motors And Six Axis

Any one know the voltages on both of these controllers, and are they the only 2 types?

Thankss :D
Wrong the dual shock 2 was only for the ps2 not ps3 although you can use it with an adapter.

What budgray19 is talking about is the sixaxis controller which doesn't have rumble.  The dual shock 3 has both sixaxis and rumble.

There's also a bunch of 3rd party usb brands, my favorite of which is dreamgear's shadow controller.

Offline TwisTtheTwiTcH

  • Blogs & Media Editor-In-Chief
  • Acid Modder
  • *
  • Posts: 782
  • Post quality +12/-2
  • Gender: Male
  • Within my shadows there are no sins
Re: PS3 Controllers...
« Reply #4 on: June 27, 2009, 11:47:00 PM »
The Controller On The Left Is A Regular SIXAXIS
The Controller On The Right Is The DUALSHOCK 3 / SIXAXIS


Photograph by TwisTtheTwiTcH - AcidMods.Com

This Is The XBOX Styled DreamGEAR Shadow

Photograph from - http://www.takesontech.com/?tag=shadow-wireless

Hope this helps.

-TwisT
« Last Edit: June 27, 2009, 11:48:38 PM by TwisTtheTwiTcH »

Offline Ben.

  • Club AM VIP
  • Acid Modder
  • *
  • Posts: 657
  • Post quality +2/-0
  • Gender: Male
Re: PS3 Controllers...
« Reply #5 on: June 28, 2009, 12:23:25 AM »
Ok Thanks..

So does anyone know the voltage these controllers run off..?

And also are the boards inside the same, just one has a couple of plugs for rumble motors..?

Cheerrrss..

Offline TwisTtheTwiTcH

  • Blogs & Media Editor-In-Chief
  • Acid Modder
  • *
  • Posts: 782
  • Post quality +12/-2
  • Gender: Male
  • Within my shadows there are no sins
Re: PS3 Controllers...
« Reply #6 on: June 28, 2009, 09:27:09 AM »
The SIXAXIS says - DC 3.7V = 30mA
The DUALSHOCK 3 says - DC 3.7V = 300mA

This is the insides of the SIXAXIS


This is the insides of the DUALSHOCK 3





Hope that helps.

-TwisT

Offline Ben.

  • Club AM VIP
  • Acid Modder
  • *
  • Posts: 657
  • Post quality +2/-0
  • Gender: Male
Re: PS3 Controllers...
« Reply #7 on: June 28, 2009, 11:44:26 AM »
Okey doke.. Thanks :D

If i was to add a 3 mm led under the PS button..

Has anyone got any pinouts For both controllers with where to wire the positive and negative connect to..

cheerrssss..  :tup:

Offline TwisTtheTwiTcH

  • Blogs & Media Editor-In-Chief
  • Acid Modder
  • *
  • Posts: 782
  • Post quality +12/-2
  • Gender: Male
  • Within my shadows there are no sins
Re: PS3 Controllers...
« Reply #8 on: June 28, 2009, 12:11:05 PM »

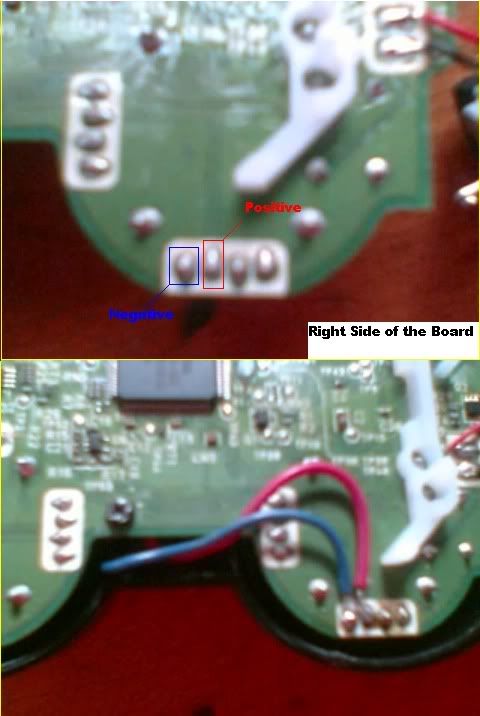

Here you are. Hope it helps.




Also check this out, took screen shots from it. Tried it, worked fine for me.

Dual Shock 3 LED PS Button Mod Tutorial

-TwisT

Offline Ben.

  • Club AM VIP
  • Acid Modder
  • *
  • Posts: 657
  • Post quality +2/-0
  • Gender: Male
Re: PS3 Controllers...
« Reply #9 on: June 28, 2009, 01:07:17 PM »
Thanks :D

Is it the same on both sixthaxis and dual shock ?

Cheers :D

Offline TwisTtheTwiTcH

  • Blogs & Media Editor-In-Chief
  • Acid Modder
  • *
  • Posts: 782
  • Post quality +12/-2
  • Gender: Male
  • Within my shadows there are no sins
Re: PS3 Controllers...
« Reply #10 on: June 28, 2009, 01:22:53 PM »
Yes, 99.9% sure. Hope all the info helped you out Ben.

-TwisT

Offline Ben.

  • Club AM VIP
  • Acid Modder
  • *
  • Posts: 657
  • Post quality +2/-0
  • Gender: Male
Re: PS3 Controllers...
« Reply #11 on: June 28, 2009, 01:32:45 PM »
Thanks For Everything Twitch :D

:D
 :tup:

Offline TwisTtheTwiTcH

  • Blogs & Media Editor-In-Chief
  • Acid Modder
  • *
  • Posts: 782
  • Post quality +12/-2
  • Gender: Male
  • Within my shadows there are no sins
Re: PS3 Controllers...
« Reply #12 on: June 28, 2009, 01:39:25 PM »
No problem, good luck with the modding.

Cheers mate.

-TwisT
