Mod Off Entry 12456632
« on: February 01, 2011, 10:17:20 AM »

this is the Entry for Entrant 12456632

Email Admin@acidmods.com To Have Updates Posted with the Subject Mod Off Update - (update Number) - 12456632
Logged

i am not responsible for what i do or my advice


Get the iPhone 4s from Three using Quidco and recieve £109 cashback

Offline Monk3y

  • Amateur Modder
  • Granny Spanker
  • *
  • Posts: 392
  • Post quality +6/-0
  • Gender: Male
  • Acidmods User
Verification
« Reply #1 on: February 08, 2011, 12:07:01 PM »

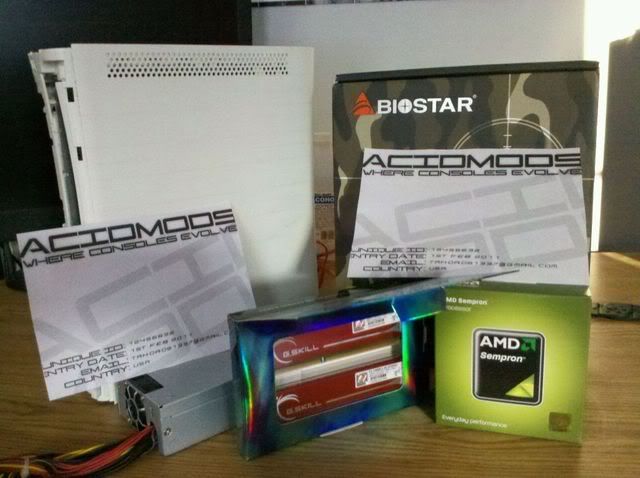

(Xbox 360 case, micro atx motherboard, 2GB ram, cpu, and micro itx power supply.)

Ok so I will be modding a PC into an Xbox 360 case. Similar to the mod that Mogler did but hopefully will improve on a couple factors that he somewhat lacked in. Remember, nothing beats the original but I am willing to try :P
« Last Edit: February 12, 2011, 05:21:32 PM by 12456632 »
Logged

Offline Monk3y

  • Amateur Modder
  • Granny Spanker
  • *
  • Posts: 392
  • Post quality +6/-0
  • Gender: Male
  • Acidmods User
Entry #12456632 - Update #1
« Reply #2 on: February 12, 2011, 05:05:33 PM »

(Put the RAM and CPU/fan and heatsink in on the motherboard)

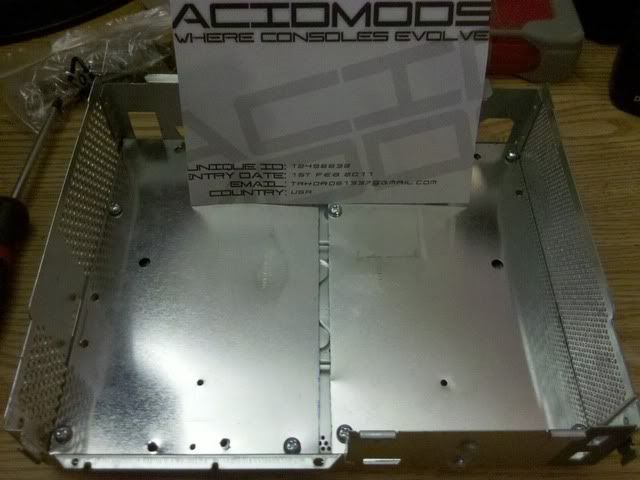

(Cut some rectangles out of some aluminum I had sitting around off some xbox cases and am using them as a platform for the motherboard to be screwed onto. Bolted them into the metal xbox casing.)

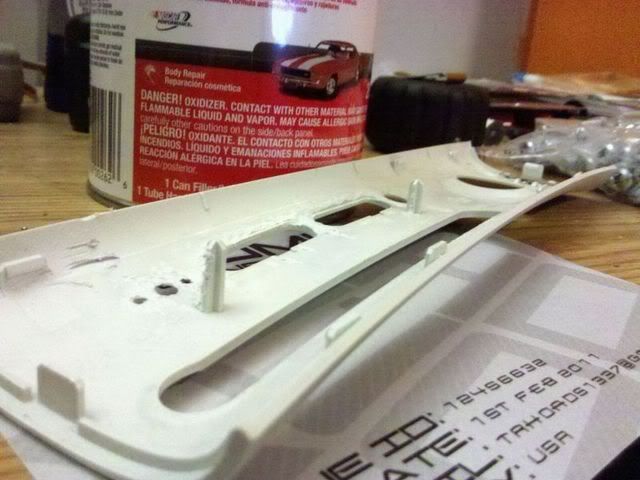

(smoothed out the inside of the front panel of the xbox case to prepare or bondo)

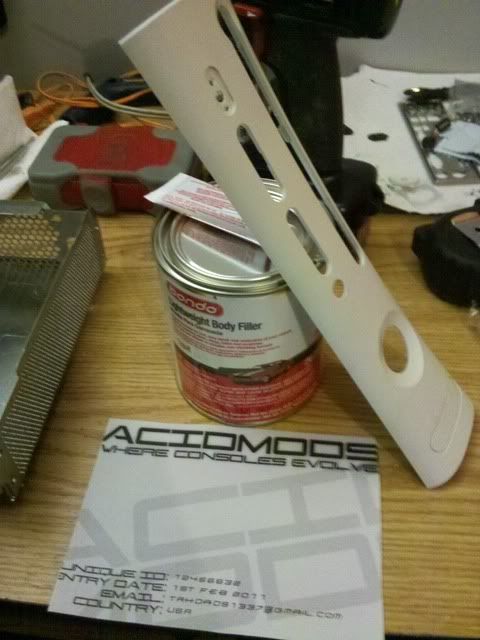

(Just got back from getting the bondo and next step is prepping the face plate to apply the bondo)


(Got some of my computer case thumb screws and am going to use it on the bottom plastic to let the xbox set higher.)
Logged

Offline toadzilla

  • Acidmods Alumni
  • Millennium Poster
  • *
  • Posts: 997
  • Post quality +132/-0
  • Gender: Male
  • something something Tech support
Re: Mod Off Entry 12456632
« Reply #3 on: February 12, 2011, 08:01:01 PM »
would be awesome to do
Logged

Offline Monk3y

  • Amateur Modder
  • Granny Spanker
  • *
  • Posts: 392
  • Post quality +6/-0
  • Gender: Male
  • Acidmods User
Entry #12456632 - Update #2
« Reply #4 on: February 23, 2011, 05:23:23 PM »

(Got the faceplate all bondo'd up and ready for modding/paint)


(A lot of the reason for me not updating as much as I'd like to was because I was waiting on the majority of my parts to get in. Well they're all finally here. Only waiting on 1 more thing from china and I'll have it all. Shown in the picture are power/reset button, 80mm fan grill, tape, 2 50mm fans, u-channel molding, 2-2 pin connectors, and bolts and screws.)
« Last Edit: February 23, 2011, 05:24:03 PM by 12456632 »
Logged

Offline FOOKz™

  • Hardware Modder
  • Research & Development
  • E = MC² Mad Scientist
  • *
  • Posts: 2070
  • Post quality +37/-2
  • Electronics Expert Electrical Engineer
Re: Mod Off Entry 12456632
« Reply #5 on: February 23, 2011, 06:12:03 PM »
Keep it up 12456632, you will do better than Mogler's  PC-360.
Logged

Follow my Instagram and subscribe to my YouTube

Offline Monk3y

  • Amateur Modder
  • Granny Spanker
  • *
  • Posts: 392
  • Post quality +6/-0
  • Gender: Male
  • Acidmods User
Entry #12456632 - Update #3
« Reply #6 on: February 27, 2011, 10:22:25 AM »

(Motherboard is finally all bolted in. It's being held by 4 bolts, it's very sturdy.)



(Top shot of the motherboard mounted in the metal casing.)


(Showing the motherboard being elevated off of the mounting platform by 11 washers. It's probably a good half inch off the platform so I won't have to worry about anything shorting out.)

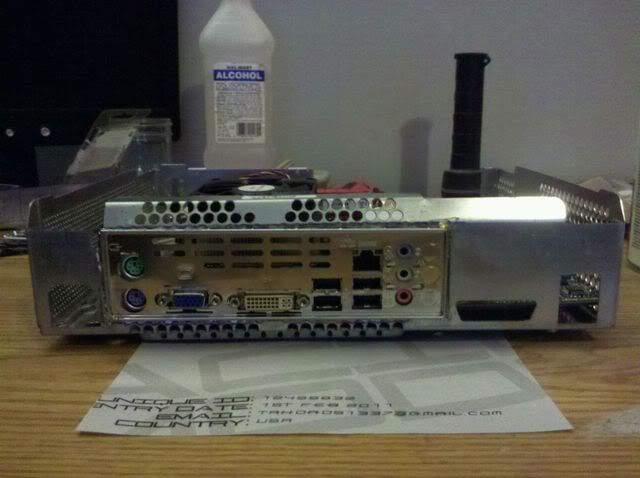

(Showing the back panel molded to the metal casing and all the ports.)

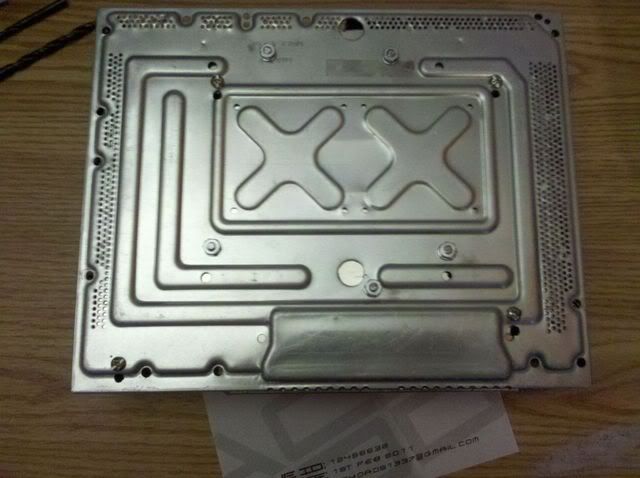

(Bottom view of the metal casing to show where I mounted the motherboard bolts and also the platform bolts.)
