Author Topic: need schematic  (Read 6803 times)

Offline Frosty

  • Ω Allumnist Ω
  • *
  • Posts: 117
  • Post quality +2/-6
  • Gender: Male
  • Acidmods User
need schematic
« on: April 07, 2012, 01:38:31 PM »
I need a diagram on how to build a socket for pickit 2 to program chips.
Something really easy to follow
thanks guys

Offline KingMike_OS

  • Shop Owner - Products & Support
  • Acidmods Alumni
  • Acid Modder
  • *
  • Posts: 929
  • Post quality +14/-0
  • Gender: Male
  • R&D
    • Modding Shop At the end of the Universe
Re: need schematic
« Reply #1 on: April 07, 2012, 01:45:57 PM »


its not hard to build but you can get one for 14.95 almost the same cost to Build one

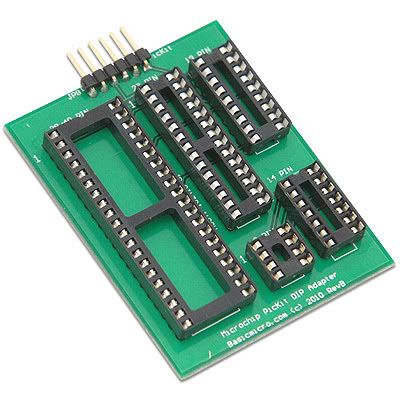

PIC Kit Dip Socket Adapter



Link :  http://www.basicmicro.com/PIC-Kit-Dip-Socket-Adapter_p_155.html

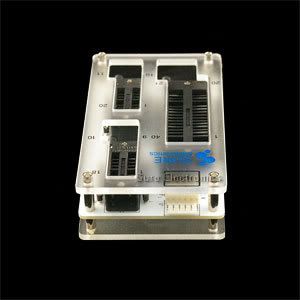

here another one that i like for 11.00



http://www.ebay.com/itm/MCU-Universal-ZIF-socket-use-PICkit-2-3-Program-/350445510228
« Last Edit: April 07, 2012, 02:17:42 PM by KingMike_OS »

Offline Frosty

  • Ω Allumnist Ω
  • *
  • Posts: 117
  • Post quality +2/-6
  • Gender: Male
  • Acidmods User
Re: need schematic
« Reply #2 on: April 07, 2012, 02:39:04 PM »
i need one for 8 pin
I have most of the stuff already to make one
« Last Edit: April 07, 2012, 02:51:07 PM by KingMike_OS »

Offline KingMike_OS

  • Shop Owner - Products & Support
  • Acidmods Alumni
  • Acid Modder
  • *
  • Posts: 929
  • Post quality +14/-0
  • Gender: Male
  • R&D
    • Modding Shop At the end of the Universe
Re: need schematic
« Reply #3 on: April 07, 2012, 02:49:06 PM »

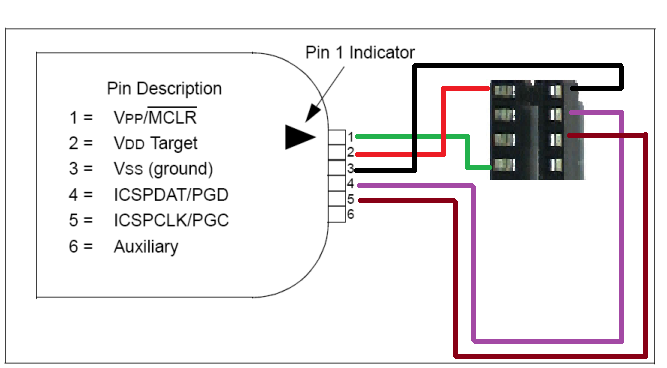

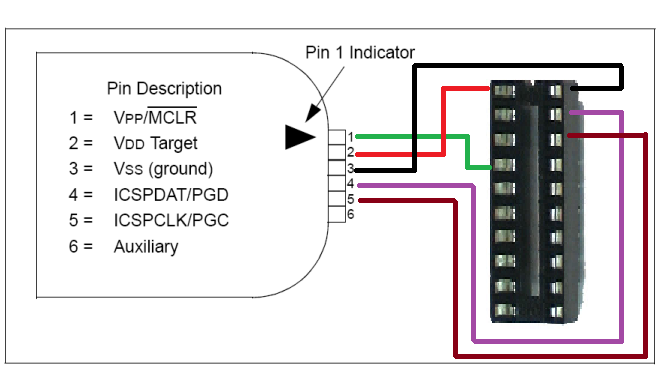

Here you go


Offline Frosty

  • Ω Allumnist Ω
  • *
  • Posts: 117
  • Post quality +2/-6
  • Gender: Male
  • Acidmods User
Re: need schematic
« Reply #4 on: April 07, 2012, 02:58:58 PM »
Here you go


now is there any resistors or anything

Offline Rodent

  • XBOX,XBOX360,PS3,WII
  • Acidmods Alumni
  • Around the block
  • *
  • Posts: 2983
  • Post quality +75/-5
  • Gender: Male
  • MODDER, REPAIR, CUSTOM IDEAS.
Re: need schematic
« Reply #5 on: April 07, 2012, 04:38:55 PM »
Here you go Try this , these work i have made alot and there easy to build
https://www.acidmods.com/forum/index.php/topic,22283.0.html

 Tracey: I cant believe Rodent of all people made my damn day
3D0: snacks cartoons and naps  lol sounds like rodents typcial day :rofl:
Rodent consoles mods

Offline KingMike_OS

  • Shop Owner - Products & Support
  • Acidmods Alumni
  • Acid Modder
  • *
  • Posts: 929
  • Post quality +14/-0
  • Gender: Male
  • R&D
    • Modding Shop At the end of the Universe
Re: need schematic
« Reply #6 on: April 07, 2012, 05:53:21 PM »
hey Rodent you did not Read, what he say he has Pick Kit 2

Quote
I need a diagram on how to build a socket for pickit 2 to program chips.
Something really easy to follow
thanks guys

Offline Rodent

  • XBOX,XBOX360,PS3,WII
  • Acidmods Alumni
  • Around the block
  • *
  • Posts: 2983
  • Post quality +75/-5
  • Gender: Male
  • MODDER, REPAIR, CUSTOM IDEAS.
Re: need schematic
« Reply #7 on: April 07, 2012, 05:55:50 PM »
hey Rodent you did not Read, what he say he has Pick Kit 2
i read the last thing about 8 pin socket
i need one for 8 pin
I have most of the stuff already to make one

 Tracey: I cant believe Rodent of all people made my damn day
3D0: snacks cartoons and naps  lol sounds like rodents typcial day :rofl:
Rodent consoles mods

Offline Anonamous

  • The Unknown Identity
  • Granny Spanker
  • *
  • Posts: 472
  • Post quality +14/-1
  • Gender: Male
  • Electrical Engineering Student
Re: need schematic
« Reply #8 on: April 07, 2012, 07:26:01 PM »
there is no need for resistors. The pickit 2 is meant for easy programming. The spacing specifications of the pins on the pickit are located in the user guide pdf file.
