Author Topic: JDM-055 (1-982-707-31) Schematic  (Read 119696 times)

Offline RDC

  • Administrator
  • Around the block
  • *
  • Posts: 2611
  • Post quality +90/-2
  • Gender: Male
  • The CGnome Project
Re: JDM-055 (1-982-707-31) Schematic
« Reply #60 on: March 13, 2022, 11:25:52 PM »
C5, C6, C7 and C8 are all part of the RF filter and need to be pretty exact value wise. I doubt my meter is that precise, and accurately measuring 0201 components is about as much fun as trying to put a leash on a flea. Best thing to do there would be to get any of those parts from another board.
Logged
Screwing up is one of the best learning tools, so long as the only thing you're not learning is how to screw up.

Offline Dzrn

  • Guppy
  • *
  • Posts: 2
  • Post quality +0/-0
  • Acidmods User
Re: JDM-055 (1-982-707-31) Schematic
« Reply #61 on: March 14, 2022, 11:14:07 AM »
Thanks! What if I make a short circuit instead of replacing the capacitor C5?
Logged

Offline West4it

  • Guppy
  • *
  • Posts: 3
  • Post quality +0/-0
  • Gender: Male
  • Acidmods User
Re: JDM-055 (1-982-707-31) Schematic
« Reply #62 on: May 16, 2022, 09:56:05 AM »
hello guys, can you help me please .
Check this picture . https://i5.imageban.ru/out/2022/05/16/767bd515398107fc4a4a1dd920afe702.jpg
when i tried to replace Resistor i destroyed "contact (for solder)" on another gamepad, where i can resotre concat? i mean where i can take "a new way" for that? (LEFT ANALOG)
my eng is crap, sorry
Logged

Offline RDC

  • Administrator
  • Around the block
  • *
  • Posts: 2611
  • Post quality +90/-2
  • Gender: Male
  • The CGnome Project
Re: JDM-055 (1-982-707-31) Schematic
« Reply #63 on: May 16, 2022, 03:01:56 PM »
@ Dzrn - Never short circuit where a Capacitor was, ever.

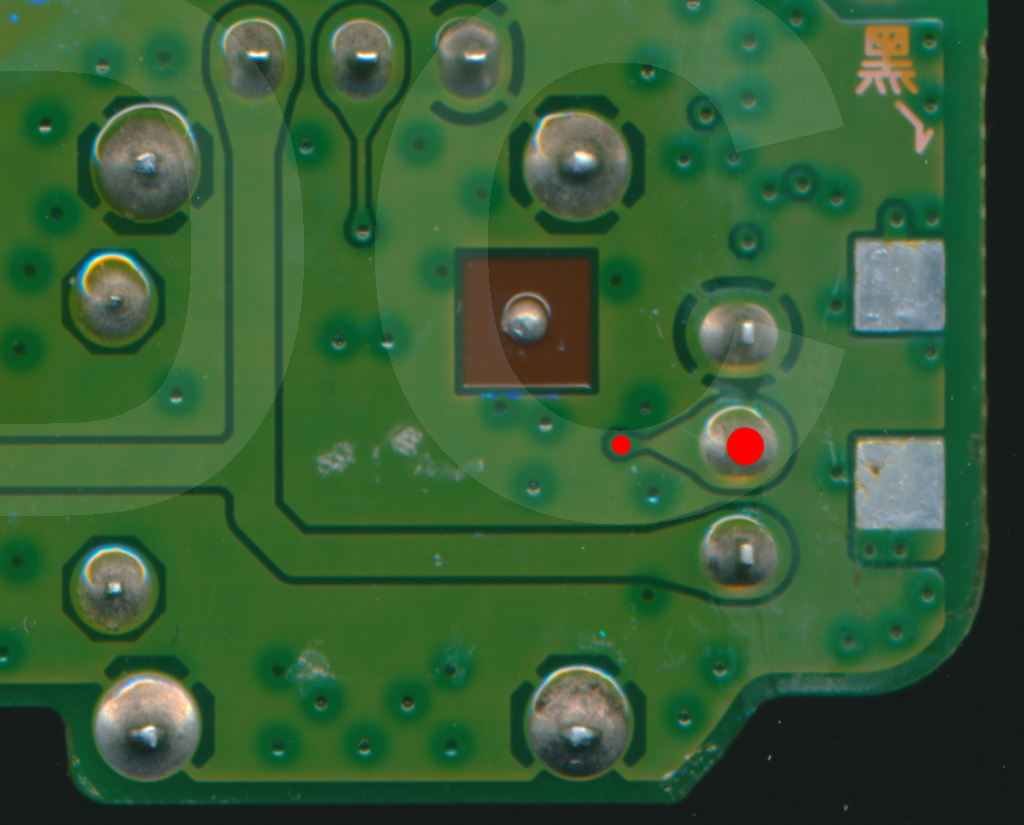

@West4it - There is no easy spot to solder a jumper wire. You will need to solder the wire from the lead of the POT to a Via.

Logged
Screwing up is one of the best learning tools, so long as the only thing you're not learning is how to screw up.

Offline West4it

  • Guppy
  • *
  • Posts: 3
  • Post quality +0/-0
  • Gender: Male
  • Acidmods User
Re: JDM-055 (1-982-707-31) Schematic
« Reply #64 on: May 17, 2022, 01:05:59 PM »
https://i1.imageban.ru/out/2022/05/17/8f32eeed4b46ad9c4c5ff7420aca520a.jpg
i thought motheboard had pins from both side and i can find another place for solder. why they do this "pins" not normal roads....
anyway, thank you , works fine  :clap:
Logged

Offline West4it

  • Guppy
  • *
  • Posts: 3
  • Post quality +0/-0
  • Gender: Male
  • Acidmods User
Re: JDM-055 (1-982-707-31) Schematic
« Reply #65 on: May 24, 2022, 02:53:11 PM »
@RDC
can you help me again
please check these pics
https://i7.imageban.ru/out/2022/05/25/a867c48d90d71f5b7f03714e5412e35a.jpg
https://i3.imageban.ru/out/2022/05/25/355e5e92e9b4a31d23ed2edc96c43122.jpg
one my friend tried to change resistors and destroyed 3 contcacts for solder, i see only one road for the third legs of resistor, where i can get two others "roads" ?
and maybe here somewhere schema for jdm-20? i mean shematic, not pics
sorry for my eng
« Last Edit: May 24, 2022, 03:05:29 PM by West4it »
Logged

Offline RDC

  • Administrator
  • Around the block
  • *
  • Posts: 2611
  • Post quality +90/-2
  • Gender: Male
  • The CGnome Project
Re: JDM-055 (1-982-707-31) Schematic
« Reply #66 on: May 24, 2022, 03:37:21 PM »

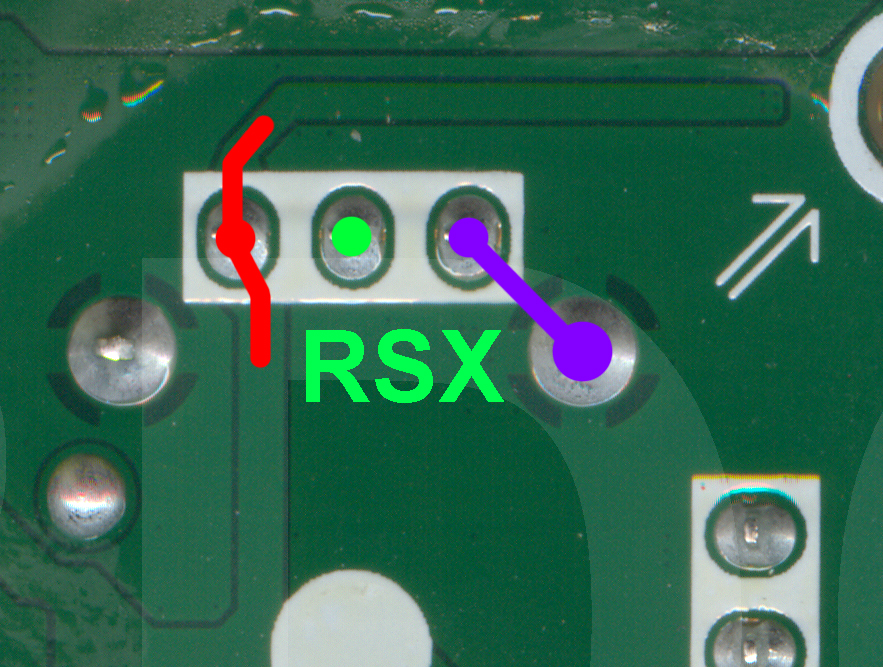

Bottom of board.

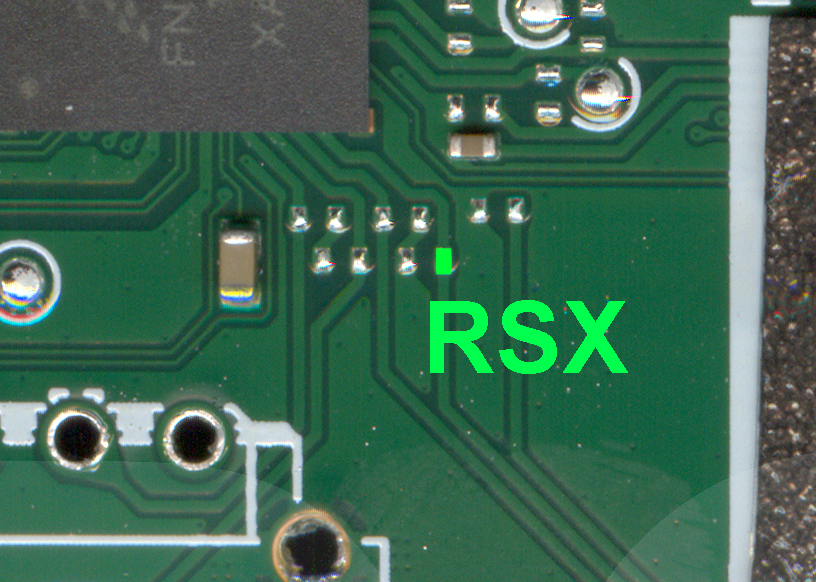

Top of board.

Logged
Screwing up is one of the best learning tools, so long as the only thing you're not learning is how to screw up.

Offline Peygem

  • Guppy
  • *
  • Posts: 1
  • Post quality +0/-0
  • Gender: Female
  • Acidmods User
Re: JDM-055 (1-982-707-31) Schematic
« Reply #67 on: May 24, 2022, 09:35:56 PM »
Здравствуйте . Помогите найти наминал резистора r46 . Был утерян в процессе пайки. И есть проблема с правым стиком , он уводит в право . Даже если поставить новый.
« Last Edit: May 24, 2022, 09:47:42 PM by Peygem »
Logged

Offline RDC

  • Administrator
  • Around the block
  • *
  • Posts: 2611
  • Post quality +90/-2
  • Gender: Male
  • The CGnome Project
Re: JDM-055 (1-982-707-31) Schematic
« Reply #68 on: May 25, 2022, 03:36:30 AM »
R46 = 2.2 ohm
Logged
Screwing up is one of the best learning tools, so long as the only thing you're not learning is how to screw up.

Offline sBeDs

  • Guppy
  • *
  • Posts: 2
  • Post quality +0/-0
  • Gender: Male
  • Acidmods User
Re: JDM-055 (1-982-707-31) Schematic
« Reply #69 on: September 03, 2022, 01:46:56 PM »
Hey guys, is c37's value critical, if so, does anyone know it by any chances?? Amazing work by the way, thanks for putting so much efforts in doing something that should be required to be done by the manufacturers, but is not, because filling their pockets with pieces of paper and chunks of metal is so much more important than saving the planet... :clap:  :tup:
Logged

Offline RDC

  • Administrator
  • Around the block
  • *
  • Posts: 2611
  • Post quality +90/-2
  • Gender: Male
  • The CGnome Project
Re: JDM-055 (1-982-707-31) Schematic
« Reply #70 on: September 03, 2022, 04:12:30 PM »
C37 is 10uF and that one I would replace.
Logged
Screwing up is one of the best learning tools, so long as the only thing you're not learning is how to screw up.

Offline sBeDs

  • Guppy
  • *
  • Posts: 2
  • Post quality +0/-0
  • Gender: Male
  • Acidmods User
Re: JDM-055 (1-982-707-31) Schematic
« Reply #71 on: September 04, 2022, 05:23:38 AM »
Quote from: RDC on September 03, 2022, 04:12:30 PM
C37 is 10uF and that one I would replace.

Nice, thanks for the reply, and yeah it's shorted and now my controller will only work while plugged, was gonna order a battery but decided to swap batteries with my other controller first just for fun, but it was still the same, decided to check the voltage and both batteries where fine outside of the controller, but they drop to 0.3v when i plug them in... so yeah, if it happens to anyone else, i'm pretty sure that C37 is the culprit since it's the only one i found that's shorted!! So thanks again, i'll order some caps and post back here to confirm if it's the case as soon as i get the chance to swap it!! :yess:
Logged

Offline jetuaime81

  • Chief squatting Hard
  • *
  • Posts: 24
  • Post quality +0/-0
  • Gender: Male
  • Acidmods User
Re: JDM-055 (1-982-707-31) Schematic
« Reply #72 on: October 09, 2022, 03:02:13 PM »
I have a jdm-055 with D-pad "Up"and R1 always on. Once in a while L1 also stays on. This is the case with flex cable removed (bare board connected via usb). I checked on the flex  connection area J5, i am getting 1.6V on pin 6 and 2.3V on pin 15 (i believe they should be 0v in idle condition). Didn't get any voltage on pin 2 (as L1 problem comes and goes; not continuous issue). All other buttons, analog, L2 R2 etc works fine.
Is the ic MT3610 the issue as there is no other component to check as per schematics?
Logged

Offline RDC

  • Administrator
  • Around the block
  • *
  • Posts: 2611
  • Post quality +90/-2
  • Gender: Male
  • The CGnome Project
Re: JDM-055 (1-982-707-31) Schematic
« Reply #73 on: October 09, 2022, 05:41:03 PM »
There are Pull-Up Resistors built into the flex board, PU1 and PU2, and with that thing not in circuit like that the L2/R2 lines are floating and the controller can do all kinds of weirdo things. If you are wanting to run the board alone like that, then you need to install a couple of Resistors on there to mimic the flex board being installed and then see if it has any issues. A couple of 10k will work fine for that.
Logged
Screwing up is one of the best learning tools, so long as the only thing you're not learning is how to screw up.

Offline jetuaime81

  • Chief squatting Hard
  • *
  • Posts: 24
  • Post quality +0/-0
  • Gender: Male
  • Acidmods User
Re: JDM-055 (1-982-707-31) Schematic
« Reply #74 on: October 09, 2022, 08:46:08 PM »
I tried another good working flex cable. Still the same.
Logged

Offline RDC

  • Administrator
  • Around the block
  • *
  • Posts: 2611
  • Post quality +90/-2
  • Gender: Male
  • The CGnome Project
Re: JDM-055 (1-982-707-31) Schematic
« Reply #75 on: October 09, 2022, 08:59:58 PM »
Didn't say flex cable, said flex board, the one that has all of the button contacts on it.
Logged
Screwing up is one of the best learning tools, so long as the only thing you're not learning is how to screw up.

Offline jetuaime81

  • Chief squatting Hard
  • *
  • Posts: 24
  • Post quality +0/-0
  • Gender: Male
  • Acidmods User
Re: JDM-055 (1-982-707-31) Schematic
« Reply #76 on: October 09, 2022, 09:28:52 PM »
sorry my bad,  you mean the conductive ribbon cable right with all the black printed buttons and 19 contacts. I changed the same thing.
Logged

Offline RDC

  • Administrator
  • Around the block
  • *
  • Posts: 2611
  • Post quality +90/-2
  • Gender: Male
  • The CGnome Project
Re: JDM-055 (1-982-707-31) Schematic
« Reply #77 on: October 10, 2022, 03:38:10 AM »
Quote from: jetuaime81 on October 09, 2022, 03:02:13 PM
This is the case with flex cable removed (bare board connected via usb).

Do you have the controller all together or not?
Logged
Screwing up is one of the best learning tools, so long as the only thing you're not learning is how to screw up.

Offline jetuaime81

  • Chief squatting Hard
  • *
  • Posts: 24
  • Post quality +0/-0
  • Gender: Male
  • Acidmods User
Re: JDM-055 (1-982-707-31) Schematic
« Reply #78 on: October 10, 2022, 07:46:12 AM »
the button flex ribbon cable was cleaned with dry cloth and board was cleaned with IPA. It didnt work so i tested with a flex ribbon cable from a known good controller, still the same. During all this steps, controller was put back together with all screws and the casing was snapped together for proper pressure / contact.

As it didnt work and now knowing something on the board was the issue, I used flux and ran soldering on all pins of MT3610 and S2PG and it WORKS now. I dont have the skills to lift MT3610 IC and resolder it to the board (it has 2 rows of contacts which is a first one for me). But finally if nothing worked i would have done that. Glad it worked. Thanks for the help RDC.
« Last Edit: October 10, 2022, 07:47:11 AM by jetuaime81 »
Logged

Offline RDC

  • Administrator
  • Around the block
  • *
  • Posts: 2611
  • Post quality +90/-2
  • Gender: Male
  • The CGnome Project
Re: JDM-055 (1-982-707-31) Schematic
« Reply #79 on: October 10, 2022, 10:01:17 AM »
Welcome. That piece of foam in the top half of the controller that keeps pressure on those contacts can come out of place, or need a shim behind it so it puts a little more pressure on the contacts when things are back together.
Logged
Screwing up is one of the best learning tools, so long as the only thing you're not learning is how to screw up.

Offline jetuaime81

  • Chief squatting Hard
  • *
  • Posts: 24
  • Post quality +0/-0
  • Gender: Male
  • Acidmods User
Re: JDM-055 (1-982-707-31) Schematic
« Reply #80 on: October 10, 2022, 10:57:13 AM »
Yes i understand. Foam seemed to be in good shape and I never changed it. After reheating pins and adding flux, the pins have become white. Almost all pins were dull and dark. Maybe corrossion? I don't know. Anyway it's working great for now.

I have posted another question in a new thread about jdm11. Its very old controller but I'm really bumped by the issue.

https://acidmods.com/forum/index.php/topic,45041.0.html
Logged

Offline wirPL

  • Chief squatting Hard
  • *
  • Posts: 10
  • Post quality +0/-0
  • Gender: Male
  • Acidmods User
Re: JDM-055 (1-982-707-31) Schematic
« Reply #81 on: December 27, 2022, 10:54:58 AM »
https://ibb.co/Q8Zz9Vx
Hi, i did short something in area 1 and now i have 0,37v on the 2 area. Did i short ICC chip, or maybe this one on the back of the PCB which is right under the battery outlet?
« Last Edit: December 27, 2022, 12:20:21 PM by wirPL »
Logged

Offline RDC

  • Administrator
  • Around the block
  • *
  • Posts: 2611
  • Post quality +90/-2
  • Gender: Male
  • The CGnome Project
Re: JDM-055 (1-982-707-31) Schematic
« Reply #82 on: December 27, 2022, 03:26:12 PM »
The chip on the other side under the battery connector is for the 6-axis, doubtful that's the issue. If you have 0.37v at the battery connector, then either that battery is bad or something is getting crazy hot in there and that's the bad part.
Logged
Screwing up is one of the best learning tools, so long as the only thing you're not learning is how to screw up.

Offline wirPL

  • Chief squatting Hard
  • *
  • Posts: 10
  • Post quality +0/-0
  • Gender: Male
  • Acidmods User
Re: JDM-055 (1-982-707-31) Schematic
« Reply #83 on: December 27, 2022, 04:16:55 PM »
The battery is fine. When the battery is 4v it reads 0,4v; another battery 3,7v it reads 0,37v it drops by one decimal place. What could cause this? Does ic chip could be damaged??? but how it drops right away on the battery outlet????
Logged

Offline RDC

  • Administrator
  • Around the block
  • *
  • Posts: 2611
  • Post quality +90/-2
  • Gender: Male
  • The CGnome Project
Re: JDM-055 (1-982-707-31) Schematic
« Reply #84 on: December 27, 2022, 05:09:04 PM »
Nothing is going to make the battery voltage drop 4v and nothing gets hot, unless the battery is bad or your meter isn't setup right.
Logged
Screwing up is one of the best learning tools, so long as the only thing you're not learning is how to screw up.

Offline wirPL

  • Chief squatting Hard
  • *
  • Posts: 10
  • Post quality +0/-0
  • Gender: Male
  • Acidmods User
Re: JDM-055 (1-982-707-31) Schematic
« Reply #85 on: December 27, 2022, 05:18:08 PM »
Meter and battery are fine. On the same meter setting battery alone shows 4v. After plugging in it, drops to 0,4v. Tested on 2 different working batteries.
Logged

Offline RDC

  • Administrator
  • Around the block
  • *
  • Posts: 2611
  • Post quality +90/-2
  • Gender: Male
  • The CGnome Project
Re: JDM-055 (1-982-707-31) Schematic
« Reply #86 on: December 27, 2022, 08:28:56 PM »
Then something is getting warm in there.
Logged
Screwing up is one of the best learning tools, so long as the only thing you're not learning is how to screw up.

Offline Blackopso

  • Chief squatting Hard
  • *
  • Posts: 24
  • Post quality +0/-0
  • Gender: Male
  • Acidmods User
Re: JDM-055 (1-982-707-31) Schematic
« Reply #87 on: December 31, 2022, 12:34:59 PM »
Hallo guys, does anyone know the value of the C41? There is also an capacitor on the same spot at the left analog for which I need the value too(https://imgur.com/a/GGeKIcz). Thank you in advance for your help!
Logged

Offline RDC

  • Administrator
  • Around the block
  • *
  • Posts: 2611
  • Post quality +90/-2
  • Gender: Male
  • The CGnome Project
Re: JDM-055 (1-982-707-31) Schematic
« Reply #88 on: December 31, 2022, 12:44:11 PM »
Both of those are just on the 3.2v rail for decoupling, the value is not critical. They could be anything from 1nF to 1uF, and it will still work fine without them.
Logged
Screwing up is one of the best learning tools, so long as the only thing you're not learning is how to screw up.

Offline Blackopso

  • Chief squatting Hard
  • *
  • Posts: 24
  • Post quality +0/-0
  • Gender: Male
  • Acidmods User
Re: JDM-055 (1-982-707-31) Schematic
« Reply #89 on: December 31, 2022, 02:01:52 PM »
Thank you very much!!!
Logged
