Jeep VIC unit (96-98) PCB and Schematic

[RDC]

96 to 98 Jeep Grand Cherokee VIC, Vehicle Information Center.

Had to mess around with this thing a bit, so made up some PCB scans and schematics for any that are interested or are trying to repair one.

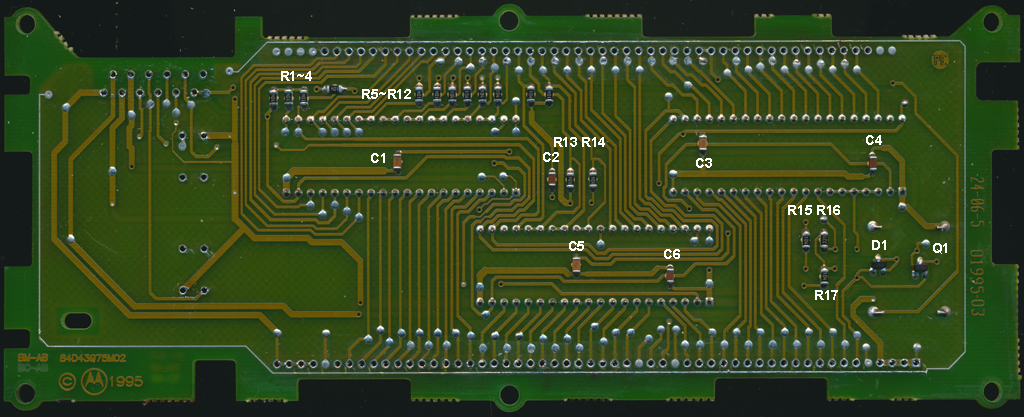

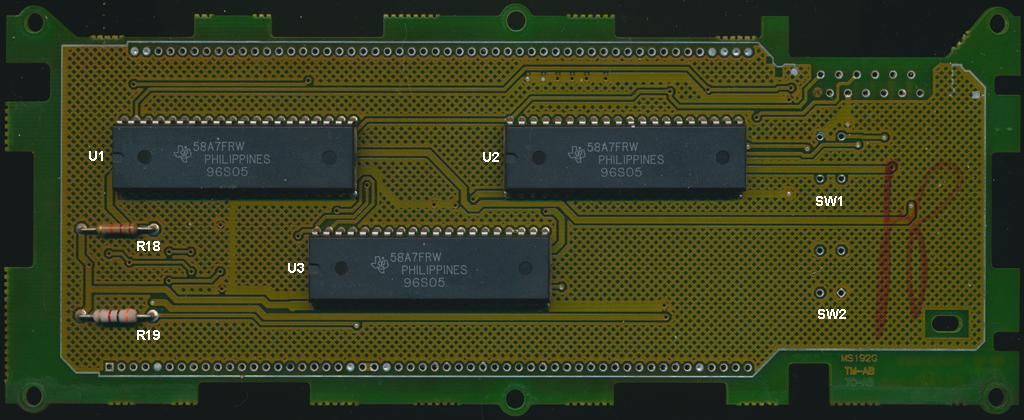

TOP PCB VFD (Vacuum Fluorescent Display) removed




TOP PCB SCHEMATIC - https://www.acidmods.com/RDC/Jeep/VIC%2096-98/Jeep%20VIC%2096-98%20Top.pdf

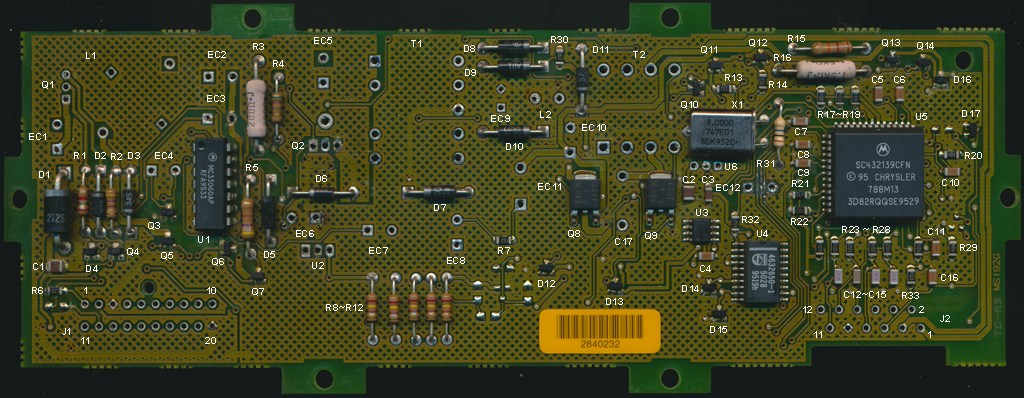

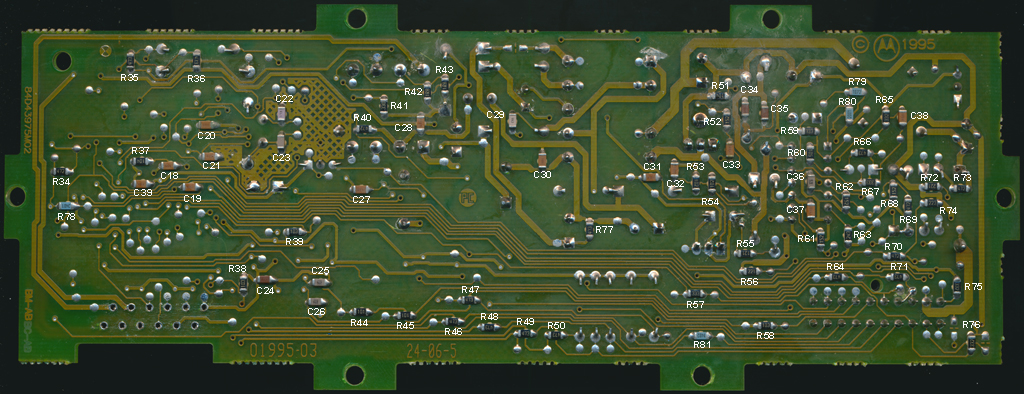

BOTTOM PCB




BOTTOM PCB SCHEMATIC - https://www.acidmods.com/RDC/Jeep/VIC%2096-98/Jeep%20VIC%2096-98%20Bottom.pdf
