Author Topic: Xbox one 1537 R39 and r42 missing  (Read 1013 times)

Offline zis2104

  • Who Farted ???
  • *
  • Posts: 208
  • Post quality +0/-0
  • Acidmods User
Xbox one 1537 R39 and r42 missing
« on: December 29, 2021, 04:17:25 AM »
I practically tried to look for the 0402 100 ohms resistors but I can't find them, now at home I have 100r resistors and I was wondering if I could put those

Offline zis2104

  • Who Farted ???
  • *
  • Posts: 208
  • Post quality +0/-0
  • Acidmods User
Re: Xbox one 1537 R39 and r42 missing
« Reply #1 on: December 29, 2021, 07:03:24 AM »
Update: I soldered all the resistors and capacitors, but the resistance of the lt has a damaged track and I think it is the gnd, now I was wondering where should I connect it without making a mess?

https://ibb.co/DpZyvg3

Offline RDC

  • Administrator
  • Around the block
  • *
  • Posts: 2609
  • Post quality +90/-2
  • Gender: Male
  • The CGnome Project
Re: Xbox one 1537 R39 and r42 missing
« Reply #2 on: December 29, 2021, 02:36:10 PM »
You can get 100 ohm 0402 sized Resistors at pretty much any online parts place. DigiKey, Mouse, etc, etc. If you can't find them at any of those places then you aren't looking them up right.

The 100R should be 100ohm, use a DMM and check.

R42 and C38 are missing in the pic, 100 ohm and 470nF, and those are on the Output of the Hall Sensor. Ground for the Hall is pin 3 and looks fine from what I can see in the image.
Screwing up is one of the best learning tools, so long as the only thing you're not learning is how to screw up.

Offline zis2104

  • Who Farted ???
  • *
  • Posts: 208
  • Post quality +0/-0
  • Acidmods User
Re: Xbox one 1537 R39 and r42 missing
« Reply #3 on: December 29, 2021, 03:17:34 PM »
I have destroy r42 trace https://ibb.co/drZJ9RC
and now I have to rebuild them, but maybe I have an easier idea (in my opinion), if I used this pcb tablet for 0402 smd and resistors and connected to the correspondents of the board it would work right?

? 1,12  5%di SCONTO | 20pcs SMT DIP Adattatore Converter 0805 0603 0402 Condensatore del Resistore LED Bacheca FR4 PCB Bordo 2.54 millimetri Passo SMD SMT Turno DIP
https://a.aliexpress.com/_mNbj3o4

Ps should the scheme be so right?
https://ibb.co/4d4SsXD

Offline RDC

  • Administrator
  • Around the block
  • *
  • Posts: 2609
  • Post quality +90/-2
  • Gender: Male
  • The CGnome Project
Re: Xbox one 1537 R39 and r42 missing
« Reply #4 on: December 29, 2021, 04:26:24 PM »

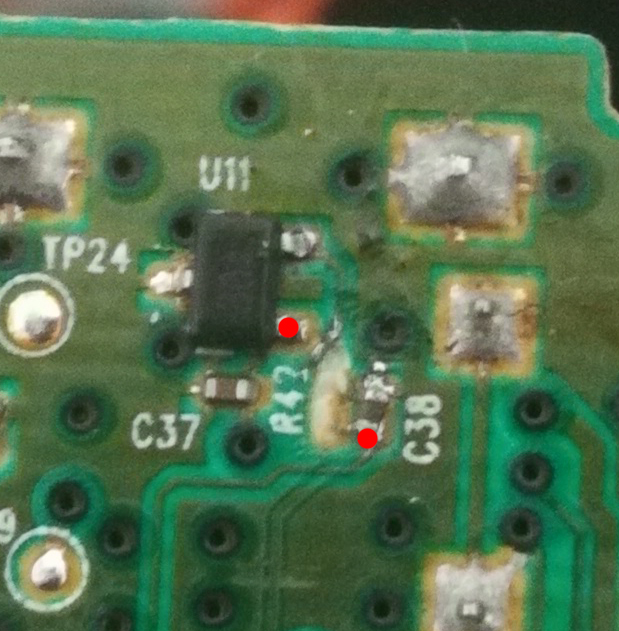

Put the 100 ohm between the red dots.

Screwing up is one of the best learning tools, so long as the only thing you're not learning is how to screw up.
