JDM-055 L3 and R3 move left and up
« on: March 03, 2023, 02:38:32 PM »
Hello! how are they?
I wanted to repair L3 JDM 055 and broke the tracks in the attempt. currently in https://gamepad-tester.com/ it marks me as in the image, L3 AND R3 move to the left and up as soon as I connect the joystick



Can someone help me rebuild the tracks? It would be a great help.





Sorry for my English is very bad and I used the translator. Thanks.


« Last Edit: March 03, 2023, 03:34:29 PM by amenchon99 »
Logged

Offline amenchon99

  • Guppy
  • *
  • Posts: 2
  • Post quality +0/-0
  • Gender: Male
  • Acidmods User
Re: JDM-055 L3 and R3 move left and up
« Reply #1 on: March 03, 2023, 04:16:32 PM »
Investigating I found that the L3 line is missing.
Where can I make a jumper to rebuild this track?

https://imgur.com/a/RmZnqcx

Thanks.
Logged

Offline RDC

  • Administrator
  • Around the block
  • *
  • Posts: 2609
  • Post quality +90/-2
  • Gender: Male
  • The CGnome Project
Re: JDM-055 L3 and R3 move left and up
« Reply #2 on: March 04, 2023, 08:10:51 PM »

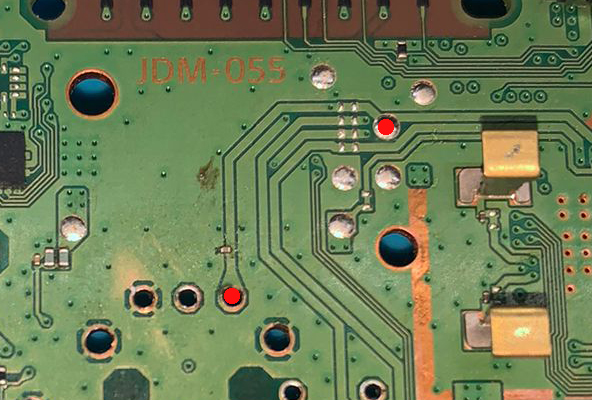

Install a jumper wire between the marked spots and retest first. You can also go from the top spot and go around the board to the back side and then solder it to the other spot if you prefer, just make sure the wire isn't going to interfere with anything when it goes back together.

Logged
Screwing up is one of the best learning tools, so long as the only thing you're not learning is how to screw up.
