Author Topic: R3 Problem JDM-040  (Read 813 times)

Offline fede19802022

  • Chief squatting Hard
  • *
  • Posts: 11
  • Post quality +0/-0
  • Acidmods User
R3 Problem JDM-040
« on: November 28, 2023, 03:51:05 AM »
Hi everyone
I have a problem with the R3 key does not work as I do to recover the functionality
Thank you

https://imgur.com/FYiorpz


https://imgur.com/a/FH5lQ9q
Logged

Offline RDC

  • Administrator
  • Around the block
  • *
  • Posts: 2611
  • Post quality +90/-2
  • Gender: Male
  • The CGnome Project
Re: R3 Problem JDM-040
« Reply #1 on: November 28, 2023, 08:37:12 AM »
First check continuity between the spot in the red circle, and the orange dot to the right of it. Press the button and make sure the value goes close to 0ohms when pressed. Just becasue those buttons 'click' when pressed does not mean they are good.

If the button tests good, then solder a jumper wire and connect the 2 Orange spots. Also make sure the solder joint in the Red circle is good making connection to that trace there.

Logged
Screwing up is one of the best learning tools, so long as the only thing you're not learning is how to screw up.

Offline fede19802022

  • Chief squatting Hard
  • *
  • Posts: 11
  • Post quality +0/-0
  • Acidmods User
Re: R3 Problem JDM-040
« Reply #2 on: November 28, 2023, 11:09:45 AM »
Hi

There is continuity between the red circle and the orange dot on the right while I press the button I made the jumper between the two orange dots (as you can see from the photo) but it still doesn't work

thank you very much for helping



https://imgur.com/a/EdEGZPs
« Last Edit: November 28, 2023, 11:10:27 AM by fede19802022 »
Logged

Offline RDC

  • Administrator
  • Around the block
  • *
  • Posts: 2611
  • Post quality +90/-2
  • Gender: Male
  • The CGnome Project
Re: R3 Problem JDM-040
« Reply #3 on: November 28, 2023, 09:02:45 PM »
Follow the trace from the red circled spot and make sure it's not damaged anywhere.
Logged
Screwing up is one of the best learning tools, so long as the only thing you're not learning is how to screw up.

Offline fede19802022

  • Chief squatting Hard
  • *
  • Posts: 11
  • Post quality +0/-0
  • Acidmods User
Re: R3 Problem JDM-040
« Reply #4 on: November 28, 2023, 10:31:11 PM »
HI

I have attached the completed photo of the motherboard, can you help me find the trace

Thank You



https://imgur.com/iQ6jOi8
« Last Edit: November 28, 2023, 10:35:16 PM by fede19802022 »
Logged

Offline RDC

  • Administrator
  • Around the block
  • *
  • Posts: 2611
  • Post quality +90/-2
  • Gender: Male
  • The CGnome Project
Re: R3 Problem JDM-040
« Reply #5 on: November 28, 2023, 11:04:14 PM »

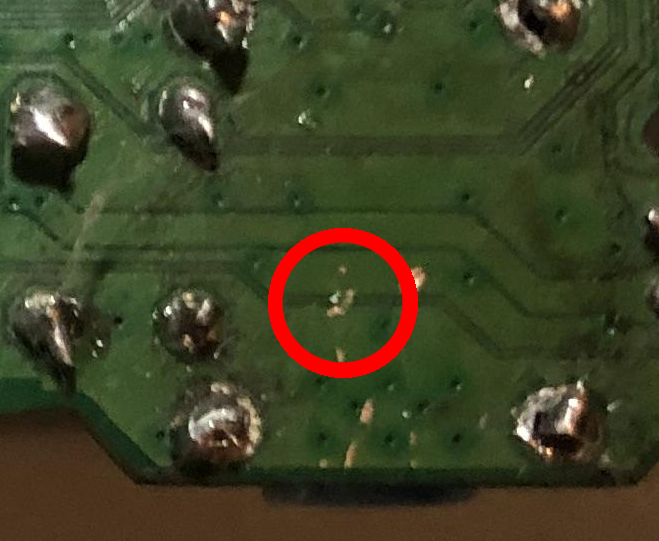

Pic isn't that great, trace looks open here though.

Logged
Screwing up is one of the best learning tools, so long as the only thing you're not learning is how to screw up.

Offline fede19802022

  • Chief squatting Hard
  • *
  • Posts: 11
  • Post quality +0/-0
  • Acidmods User
Re: R3 Problem JDM-040
« Reply #6 on: November 29, 2023, 12:10:26 AM »
yes the point is right how can I restore the line

Many many Thanks
Logged

Offline fede19802022

  • Chief squatting Hard
  • *
  • Posts: 11
  • Post quality +0/-0
  • Acidmods User
Re: R3 Problem JDM-040
« Reply #7 on: December 08, 2023, 04:46:24 AM »
Resolved.

Thanks
