Author Topic: sony ericcson joystick... (Read 9294 times)

atomicareprise · « **on:** February 04, 2009, 06:23:38 AM »

i'm about to use the sony ericcson joystick for my psp..

what i'd like to know if this is the way to go..

will this work??

thanks guys..

filipinofryrice · « **Reply #1 on:** February 04, 2009, 01:10:36 PM »

I've seen plenty of people use one of those. I have one question though. If you have it all ready how does the joystick feel? like is it smooth movement around or clunky like i guess? and compared to the normal joystick on the psp how easy is it to move?

ColdSoldier · « **Reply #2 on:** February 04, 2009, 04:41:42 PM »

its very smoooth movement oon screen (and sensitive too)but the nub itself it doesnt move very much at all soo itss weird compard to the other nub.

the nub goes the other way.
your pic shows it with the notch out in the lower right edge.
hold the nub in your fingures so its like a dimond.
now rotate it until the little square notch out on the stick is in the upper left edge of the diamond.

now you are holding it the way it should be instaled and triangle goes on the upper right post, O on the lower right post, X on lower left post and [] on the upper left post. and ground is any where on the metaal that isnt a post

middle posts are left empty

good luck to you, happy modding and be careful of the power switch while putting it together again, you'll see what i mean.

atomicareprise · « **Reply #3 on:** February 04, 2009, 07:13:15 PM »

Quote from: ColdSoldier on February 04, 2009, 04:41:42 PM

its very smoooth movement oon screen (and sensitive too)but the nub itself it doesnt move very much at all soo itss weird compard to the other nub.

the nub goes the other way.
your pic shows it with the notch out in the lower right edge.
hold the nub in your fingures so its like a dimond.
now rotate it until the little square notch out on the stick is in the upper left edge of the diamond.

now you are holding it the way it should be instaled and triangle goes on the upper right post, O on the lower right post, X on lower left post and [] on the upper left post. and ground is any where on the metaal that isnt a post

middle posts are left empty

good luck to you, happy modding and be careful of the power switch while putting it together again, you'll see what i mean.

can you show me how to wire it .i'm a little bit confuse..

thanks man..

ColdSoldier · « **Reply #4 on:** February 05, 2009, 09:19:48 AM »

um i guess what do you need to know? exactly?

filipinofryrice · « **Reply #5 on:** February 05, 2009, 04:40:39 PM »

is this small enough to put the joystick between the right 4 buttons? random question i know but i've been wanting to put it there instead.

atomicareprise · « **Reply #6 on:** February 05, 2009, 07:10:43 PM »

Quote from: ColdSoldier on February 05, 2009, 09:19:48 AM

um i guess what do you need to know? exactly?

can you provide me an image telling me where to solder the corresponding points...

once i know where to solder it, i can start my project..thanks..

ColdSoldier · « **Reply #7 on:** February 06, 2009, 02:21:09 PM »

first yes i think it it could fit between the buttons but it would probably stick up quite a bit, you should make that desicion while your holding one in your hand you know what i mean?

second i have pictures but i dont think they'll help

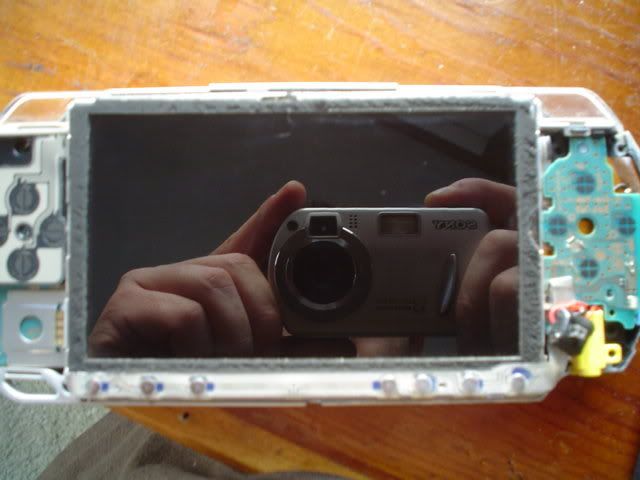

this is where you put the wires on the board,upper red is /\, lower red is O, upper black is [], and lower black is X

or if your wire is too thick and you go from the top

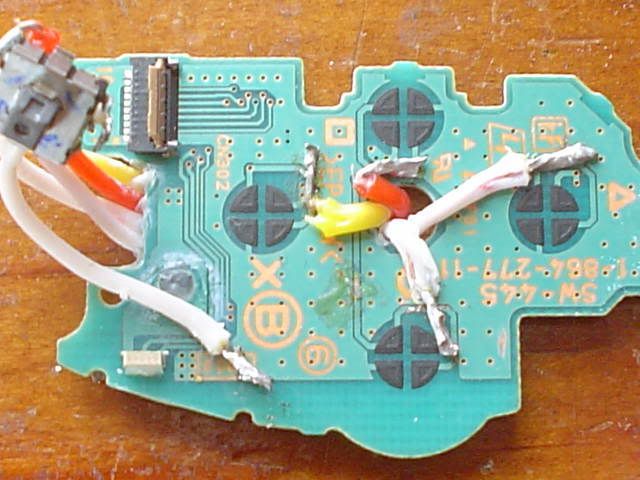

notice in this photo and the photo above that the analog has a small little cut out of the stick where the nub would slide on, use that as your point of reference, in these pics i used yellow for X(bottom) and red for [](left) both /\(top) and O(right) are white, triangle is on top and O is on the right

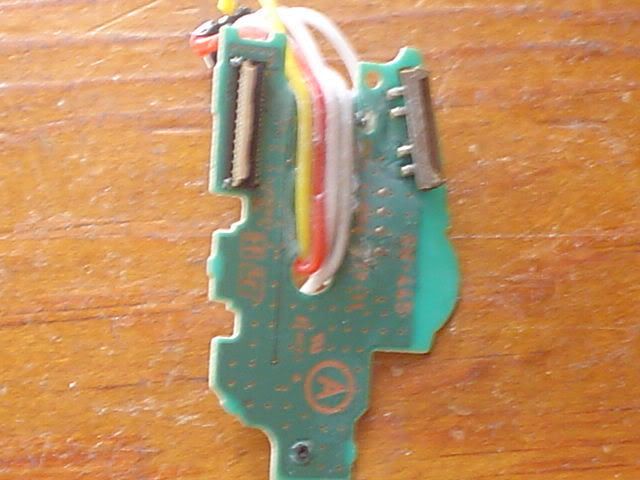

this photo shows the power board ground point in the left(its red, by itself)

atomicareprise · « **Reply #8 on:** February 06, 2009, 07:51:16 PM »

thanks cold for the images...

btw can i have the images of the solder points to the joystick??

that's really confuses me...i don't know where to place my solder..

and also i might do the usb charge so i can fit the joystick in the middle..

thanks..

ColdSoldier · « **Reply #9 on:** February 07, 2009, 06:01:35 AM »

those are the only pics i have, sorry

did you study the ones with the red and yellow wire?

all i can really do is try to explain it to you, when do you plan on being on line again?

i'll try to hook up with you in a private chat or something so i can walk you threw what ever you dont see clearly, although i think you may be suprised when you find out how simple it actually is.

Quote from: ColdSoldier on February 06, 2009, 02:21:09 PM

or if your wire is too thick and you go from the top

notice in this photo and the photo above that the analog has a small little cut out of the stick where the nub would slide on, use that as your point of reference, in these pics i used yellow for X(bottom) and red for [](left) both /\(top) and O(right) are white, triangle is on top and O is on the right

atomicareprise · « **Reply #10 on:** February 07, 2009, 08:06:51 AM »

okay..cold..thanks for all your help..

really appreciate it..

ColdSoldier · « **Reply #11 on:** February 09, 2009, 11:17:50 AM »

i guess i should of just done this from the begining

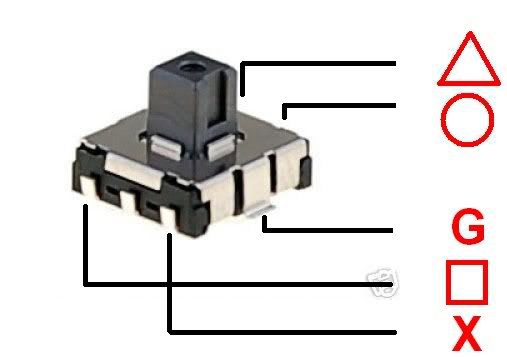

do this:

Instead of this:

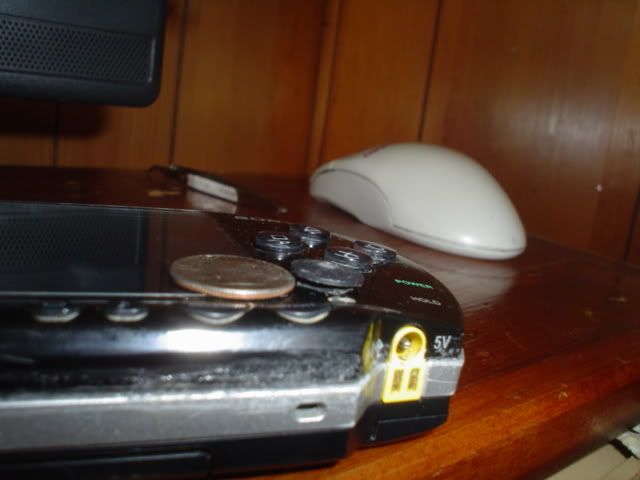

by the way if you cut the plastic nub flush and then put a square hole in it you'll end up with this:

notiice how it sits nice and low like the one on the left

atomicareprise · « **Reply #12 on:** February 09, 2009, 08:41:56 PM »

thanks cold!!!

blackburn · « **Reply #13 on:** February 13, 2009, 08:07:02 PM »

that wire doesnt look like 30 gauge

but still, looks good, id just try to find a way to get the analog stick to look a little bit nicer...

ColdSoldier · « **Reply #14 on:** February 14, 2009, 08:34:19 PM »

Quote from: blackburn on February 13, 2009, 08:07:02 PM

that wire doesnt look like 30 gauge but still, looks good, id just try to find a way to get the analog stick to look a little bit nicer...

yea that was my first one ever

its the only wired up pic of the switch that i had that showed the contacts on the switch.

check out my other pics with the black and red wire, that one is much nicer

kimbrough · « **Reply #15 on:** April 09, 2009, 01:12:29 PM »

were do u put the ground on the board through the holes?

TheZap · « **Reply #16 on:** May 09, 2009, 07:58:22 AM »

This is exactly what i need! Cant wait for summer so i can mod my psp

Rokujou · « **Reply #17 on:** August 03, 2009, 09:48:09 AM »

thinking about doing dual nub mod with that ericsson joystick, and so i (suprise, suprise) have some questions about it...
-do i need to wire the ground point somewhere?
-is it possible to make it detachable/ re attachable?
-if i take it off for some reason, will the normal pad still work?

thanks in advance... ill tell if something else comes up.

blackburn · « **Reply #18 on:** August 03, 2009, 10:28:55 PM »

Quote from: Rokujou on August 03, 2009, 09:48:09 AM

thinking about doing dual nub mod with that ericsson joystick, and so i (suprise, suprise) have some questions about it...
-do i need to wire the ground point somewhere?
-is it possible to make it detachable/ re attachable?
-if i take it off for some reason, will the normal pad still work?

thanks in advance... ill tell if something else comes up.

yes
depends on how clever/good you are with tools
yes

Rokujou · « **Reply #19 on:** August 05, 2009, 07:43:03 AM »

want to tell me where i need to wire it?

...how dumb can one actually be? only now got my DX-board, and saw that there is so **** many places to wire it... oh, well... thought about doing mine hold activated anyway. all parts are together, and now i am searching for my old soldering-equipment... anyone wants a tutorial from this one?
