Author Topic: Modding KeyBoard  (Read 21434 times)

Offline godly.asian

  • Chief squatting Hard
  • *
  • Posts: 18
  • Post quality +0/-0
Modding KeyBoard
« on: April 08, 2007, 05:50:12 PM »
I am really fascinated about lights. I mean...if my chassis wasn't exploding with lights, I would have no use for it. I want to mod my keyboard now. It is a DELL make, and I want to put some blue LEDs in between the rows of the keys, so that when it turns on the keys have a glow beneath them. I prefer to use a surface-mount LED, if anyone could suggest something better that would be great. And also where I can get the best and cheapest ones.

Thanks and peaceoutz

Offline lethal_b

  • modder in making
  • Granny Spanker
  • *
  • Posts: 520
  • Post quality +1/-0
  • Gender: Male

Re: Modding KeyBoard
« Reply #1 on: April 09, 2007, 04:17:18 AM »
i am thinking of doing the same thing as u so far i have only changed the stock leds to blue using 3mm leds



i done it to my optical mouse as well




think i will try to do the rest of the keyboard today

UPDATE

k so i decided to give this a try on an old keyboard of mine its a vivanco clear green one and there is only 2 blue leds in there at the moment which lights up one part really nice will be putting more in today any will post a picture

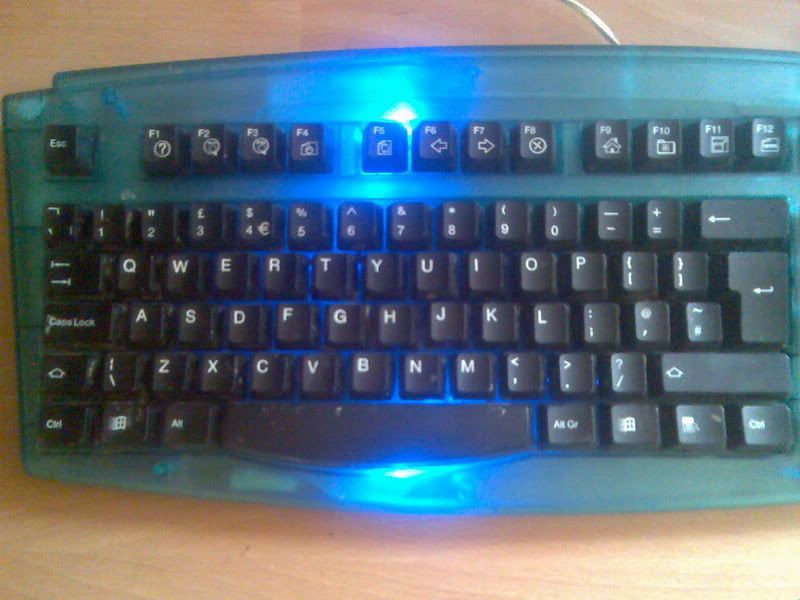

here is what it looks like so far
« Last Edit: April 09, 2007, 05:15:43 AM by lethal_b »

Offline Skullmaster

  • God Of Cars
  • Acidmods Alumni
  • E = MC² Mad Scientist
  • *
  • Posts: 1520
  • Post quality +1/-0
  • Gender: Male
  • Admin Force, Co-Owner Wanna-be
    • Acidmods
Re: Modding KeyBoard
« Reply #2 on: April 09, 2007, 08:25:52 AM »
Thats awsome! Its better than paying $60 for a gaming one!

Offline godly.asian

  • Chief squatting Hard
  • *
  • Posts: 18
  • Post quality +0/-0
Re: Modding KeyBoard
« Reply #3 on: April 09, 2007, 09:04:06 AM »
nice, but where exactly can you get some rly cheap 3mm LEDs? I roughly need about 150, they don't have to be super bright, since all I am looking for is an under glow.

Offline Tec_

  • EL-Wire King
  • E = MC² Mad Scientist
  • *
  • Posts: 1869
  • Post quality +2/-0
  • Gender: Male
  • EL Wire King
Re: Modding KeyBoard
« Reply #4 on: April 09, 2007, 09:21:35 AM »
try electronics goldmine

Offline godly.asian

  • Chief squatting Hard
  • *
  • Posts: 18
  • Post quality +0/-0
Re: Modding KeyBoard
« Reply #5 on: April 09, 2007, 09:31:32 AM »
they don't seem to have the color I am looking for(blue), but then what else would look good as an under glow on a black keyboard?

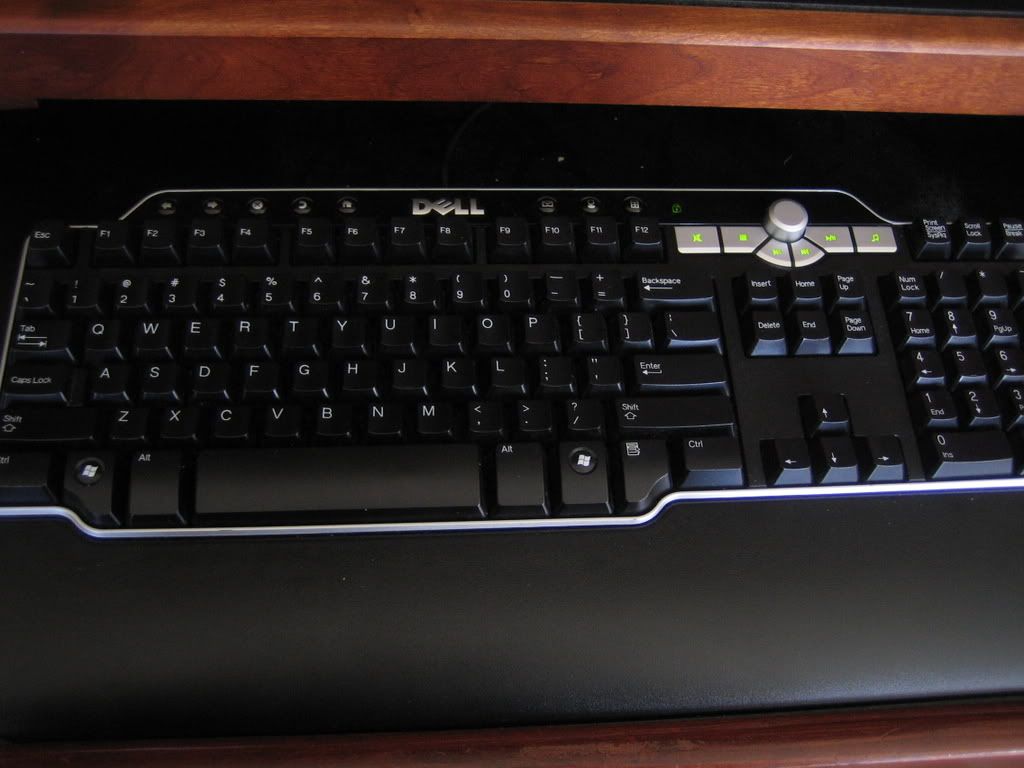

UPDATE: my keyboard
« Last Edit: April 09, 2007, 09:36:57 AM by godly.asian »

Offline Tec_

  • EL-Wire King
  • E = MC² Mad Scientist
  • *
  • Posts: 1869
  • Post quality +2/-0
  • Gender: Male
  • EL Wire King
Re: Modding KeyBoard
« Reply #6 on: April 09, 2007, 09:53:56 AM »
like a neon green? idk seems like you have a blue thing going on thow

Offline lethal_b

  • modder in making
  • Granny Spanker
  • *
  • Posts: 520
  • Post quality +1/-0
  • Gender: Male

Re: Modding KeyBoard
« Reply #7 on: April 09, 2007, 12:00:47 PM »
k i am done for today i might add some more leds i dont no yet but here is the end result hope u like




looks way better then in the pic ture and more dark but the cam is picking the bright spots up a so it looks a bit weird

Offline godly.asian

  • Chief squatting Hard
  • *
  • Posts: 18
  • Post quality +0/-0
Re: Modding KeyBoard
« Reply #8 on: April 09, 2007, 12:10:52 PM »
ho snap...once your done, can you show me the circuit board, or how you hooked it up, I have an idea but I don't kno if it will work.

Offline lethal_b

  • modder in making
  • Granny Spanker
  • *
  • Posts: 520
  • Post quality +1/-0
  • Gender: Male

Re: Modding KeyBoard
« Reply #9 on: April 09, 2007, 12:12:48 PM »
ho snap...once your done, can you show me the circuit board, or how you hooked it up, I have an idea but I don't kno if it will work.

sure yeah will take a picture 2moz for ya on how it was wired up

Offline vskid

  • Who Farted ???
  • *
  • Posts: 219
  • Post quality +0/-0
  • Gender: Male
    • vskid3 Industries
Re: Modding KeyBoard
« Reply #10 on: April 09, 2007, 02:47:59 PM »
nice, but where exactly can you get some rly cheap 3mm LEDs? I roughly need about 150, they don't have to be super bright, since all I am looking for is an under glow.
You could get those on ebay for less than $20.  Why do you need 150?  I don't think you need that many...

Offline godly.asian

  • Chief squatting Hard
  • *
  • Posts: 18
  • Post quality +0/-0
Re: Modding KeyBoard
« Reply #11 on: April 09, 2007, 03:25:44 PM »
I might need them for other projects too, cuz I want to do my keyboard and laptop..but I don't have a laptop yet.....

Offline User

  • Acid Modder
  • *
  • Posts: 734
  • Post quality +0/-0
  • 2343456653563467978903123253456
Re: Modding KeyBoard
« Reply #12 on: April 10, 2007, 05:48:20 AM »
I snaked some el a couple years ago on a keyboard when I lobbed off the keypad.

Dreams Make no Promises.

Offline savethehumans45

  • Ω Allumnist Ω
  • *
  • Posts: 100
  • Post quality +0/-0
  • Gender: Male
    • Myspace
Re: Modding KeyBoard
« Reply #13 on: April 10, 2007, 10:41:24 PM »
Dont let the b******'s grind you down!

cut me some slack, all my modding experience is with ipods.

"Ben Heck already did it"

Offline lethal_b

  • modder in making
  • Granny Spanker
  • *
  • Posts: 520
  • Post quality +1/-0
  • Gender: Male

Re: Modding KeyBoard
« Reply #14 on: April 11, 2007, 04:36:37 AM »
hey thats cool and a good idea to us fiber optic cable

Offline Takahashi

  • Evangelion 01
  • Acid Modder
  • *
  • Posts: 932
  • Post quality +0/-0
  • Gender: Male
Re: Modding KeyBoard
« Reply #15 on: April 11, 2007, 09:49:11 AM »
Lol leds in keyboards, what will we think of next. Stick leds in a hamburger or ice cream so we can find it while we snack in the middle of the night.

Help a fellow out and buy his stuff, Everything MUST go!
Signature and Avatar by Kenshinffx.

Offline lethal_b

  • modder in making
  • Granny Spanker
  • *
  • Posts: 520
  • Post quality +1/-0
  • Gender: Male

Re: Modding KeyBoard
« Reply #16 on: April 11, 2007, 09:56:55 AM »
Lol leds in keyboards, what will we think of next. Stick leds in a hamburger or ice cream so we can find it while we snack in the middle of the night.

if you really wanted to yeah lol but leds in keyboards is old u can even buy keyboards with leds in the keys from shop or u could spen a grand and get a keyboard were every key has an oled display in the keys

Offline Takahashi

  • Evangelion 01
  • Acid Modder
  • *
  • Posts: 932
  • Post quality +0/-0
  • Gender: Male
Re: Modding KeyBoard
« Reply #17 on: April 11, 2007, 10:09:56 AM »
Its new to me lol but I really havent payed any attention to the pc modding board. Would it really cost a grand to stick leds under every key?

Help a fellow out and buy his stuff, Everything MUST go!
Signature and Avatar by Kenshinffx.

Offline lethal_b

  • modder in making
  • Granny Spanker
  • *
  • Posts: 520
  • Post quality +1/-0
  • Gender: Male

Re: Modding KeyBoard
« Reply #18 on: April 11, 2007, 10:16:11 AM »
not leds but but little screens here is a picture of the key board as u can see u program the keys so when u play a game only the game keys show up and so on and so forth




thats one sweet keyboard would get one if i had the money

Offline HoffmanMyster

  • Acid Modder
  • *
  • Posts: 635
  • Post quality +0/-0
  • Gender: Male
Re: Modding KeyBoard
« Reply #19 on: April 11, 2007, 03:09:45 PM »
^^ Holy crap, thats insane!!  Id settle for this...



Offline Skullmaster

  • God Of Cars
  • Acidmods Alumni
  • E = MC² Mad Scientist
  • *
  • Posts: 1520
  • Post quality +1/-0
  • Gender: Male
  • Admin Force, Co-Owner Wanna-be
    • Acidmods
Re: Modding KeyBoard
« Reply #20 on: April 11, 2007, 07:30:00 PM »
You guys should make a photo tutorial, or a video tutorial, I be it would get tons of hits on youtube! Let me know if your gonna do this

Offline Takahashi

  • Evangelion 01
  • Acid Modder
  • *
  • Posts: 932
  • Post quality +0/-0
  • Gender: Male
Re: Modding KeyBoard
« Reply #21 on: April 12, 2007, 07:59:09 AM »
not leds but but little screens here is a picture of the key board as u can see u program the keys so when u play a game only the game keys show up and so on and so forth




thats one sweet keyboard would get one if i had the money
That keyboard is crazy llol. That'd be so cool

Help a fellow out and buy his stuff, Everything MUST go!
Signature and Avatar by Kenshinffx.

Offline robin1989

  • Site Owner - Site Maintenance & development
  • Administrator
  • Mad Bomber
  • *
  • Posts: 6272
  • Post quality +21/-0
  • Gender: Male
  • Site owner
    • Acidmods
Re: Modding KeyBoard
« Reply #22 on: April 14, 2007, 03:11:49 AM »
the optimus keyboard is ace - could you use EL-Wire under the keys in a keyboard instead of LEDs and get an all over cosistant glow

i am not responsible for what i do or my advice


Get the iPhone 4s from Three using Quidco and recieve £109 cashback

Offline lethal_b

  • modder in making
  • Granny Spanker
  • *
  • Posts: 520
  • Post quality +1/-0
  • Gender: Male

Re: Modding KeyBoard
« Reply #23 on: April 14, 2007, 05:06:32 AM »
could give it a try but there is the case of were to put the inverter

Offline robin1989

  • Site Owner - Site Maintenance & development
  • Administrator
  • Mad Bomber
  • *
  • Posts: 6272
  • Post quality +21/-0
  • Gender: Male
  • Site owner
    • Acidmods
Re: Modding KeyBoard
« Reply #24 on: April 14, 2007, 08:11:19 AM »
you can get very small inverter now so you could just find a empty crevis inside the keyboard and put it in their. all it would take would be a few holes drilled in the keyboard for wiring

i am not responsible for what i do or my advice


Get the iPhone 4s from Three using Quidco and recieve £109 cashback

uzzyaslam

  • Guest
Re: Modding KeyBoard
« Reply #25 on: April 14, 2007, 02:52:51 PM »
i didnt know you could mod keyboards lol

Offline User

  • Acid Modder
  • *
  • Posts: 734
  • Post quality +0/-0
  • 2343456653563467978903123253456
Re: Modding KeyBoard
« Reply #26 on: April 17, 2007, 03:05:41 AM »
The Optimus 10* is vaper.

Dreams Make no Promises.

Offline neo8222

  • King of the Wii-tards
  • *
  • Posts: 152
  • Post quality +0/-0
  • Gender: Male
Re: Modding KeyBoard
« Reply #27 on: April 20, 2007, 02:05:28 PM »
not leds but but little screens here is a picture of the key board as u can see u program the keys so when u play a game only the game keys show up and so on and so forth




thats one sweet keyboard would get one if i had the money
who makes this and what is it called I MUST HAVE IT! :w00t:
My PSPs history: 2.71>2.81>3.03>1.5>3.03OE-C>1.5>3.52 m33-4>3.90 m33
Mods: USB Charger Mod, Airbrushed Backplate, Acidmod PSP Theme, Trigger Mod, Wifi/Mem Light Mod
Soon: External Antenna, Pandora Battery

Offline robin1989

  • Site Owner - Site Maintenance & development
  • Administrator
  • Mad Bomber
  • *
  • Posts: 6272
  • Post quality +21/-0
  • Gender: Male
  • Site owner
    • Acidmods
Re: Modding KeyBoard
« Reply #28 on: April 20, 2007, 02:07:32 PM »
Read further up the topic and you will see its called the optimus

i am not responsible for what i do or my advice


Get the iPhone 4s from Three using Quidco and recieve £109 cashback

Offline lethal_b

  • modder in making
  • Granny Spanker
  • *
  • Posts: 520
  • Post quality +1/-0
  • Gender: Male

Re: Modding KeyBoard
« Reply #29 on: April 20, 2007, 02:54:19 PM »
who makes this and what is it called I MUST HAVE IT! :w00t:

i am so happy some one has a $1000 to spend on a keyboard that really made my day lol
