I need the code for this in BASIC.

[zbblanton]

ok i need to no a simple code. say i want to set pin1  on porta or b to ON what would be the code for  that.

[cwn723]

what you mean on?

[zbblanton]

nvm mine i found out how to do it

[h311jump3r]

and how did u do it? 120 days later someone else doesn't know now...and u didn't say how you fixed ur problem. Grrr

[KyleP]

so we just put in the code u just said or .......

[h311jump3r]

so we just put in the code u just said or .......

No, that code is not for the 12F683. Everyone on this forum uses the 12F683 including kingmike. To make the pin 1 (which is the 3rd I believe excluding the power and ground pins) high you need to put GPIO.0 = 1 for High

0 for low

hmmm...I got some code that I can give you if you need it...and a way to get picbasic pro free. The code hasnt been tested but it passes the compiler with no errors. Tell what you think...or pm me.

[h311jump3r]

OH! I just made a pic programming category and added some tutorials and guides to it:

check it out: http://www..com/tuts/view_tutorials/PIC_Programming/12F683/

[h311jump3r]

you can use the same code for different pics, you need to compile it for the right pic..

Thats wrong... the.0 defines the pin, then 1 would make it an output/high..

and GPIO is a general purpose in put output pin, but  you need to speicfiy with port

you would have to use PORTB or PORTA

thanks

PORTB.1 HIGH is right

hope this helps, and i may be wrong :Z

No, that is only for chips that have more than 8 pins. If it has 8 or less pins GPIO.0, GPIO.1, GPIO.2, GPIO.3, GPIO.4, GPIO.5, are all the input/output pins that it can have. u can't use port a/b on a pic chip that has 8 or less pins.

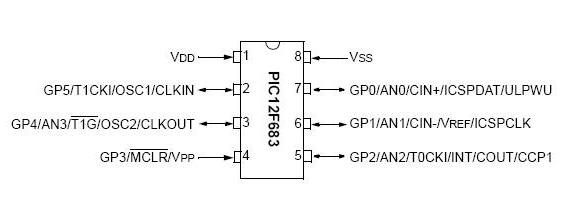

Here is a diagram for a regular 12F683:


Here is a diagram for a regular 16F84:



Pics with more than 8 have ports...to divide the pins into a managable set.



Proud Member Of .com

[zbblanton]

Wow i geuss i did forget to post the i got but yea it what everyone posted up there
portA.1 = high

gpio.2 = high

yea i geuss that was my bad.

[h311jump3r]

Okay, wow thanks alot! I didn't actually realise that.

please stop advertising your side it is irritating now

GRRRRR...

[zbblanton]

Yea my questions been answered here, so this topic is :: don't want a fight to break out.
