Author Topic: Here is my NEW Rapidfire Creation! (10 pictures) UPDATE (Read 4735 times)

gameroms · « **on:** August 09, 2008, 04:39:56 PM »

I decided i wanted a internal chip, but i also wanted easy reprogeaming, so i looke through all my goodies laying around, and i found this wii modchip called a wii-boss, its a small pcb with a smt 12f629 on it (but i replaced it with a 12f683), and has a molex connector for a ribbon cable, and it comes with its own programer. heres a few pics. the wii-boss chip is not sold anymore, but if theres interest maybe we can get some produced if we can find for decent price, i used to be able to but these for $10. Prob still can get some from the creator of the chip but id have to buy atleast 10.

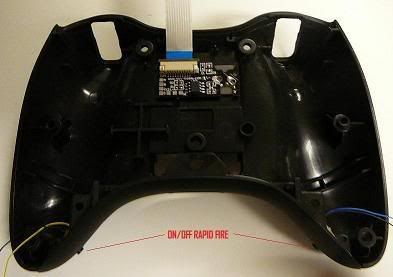

Pic 1 of inside.

Pic 2 of inside.

Top view without leds

Top view of leds

Clear shoulder buttons with leds, triggers are clear to but havent added leds yet.

LED Switch.

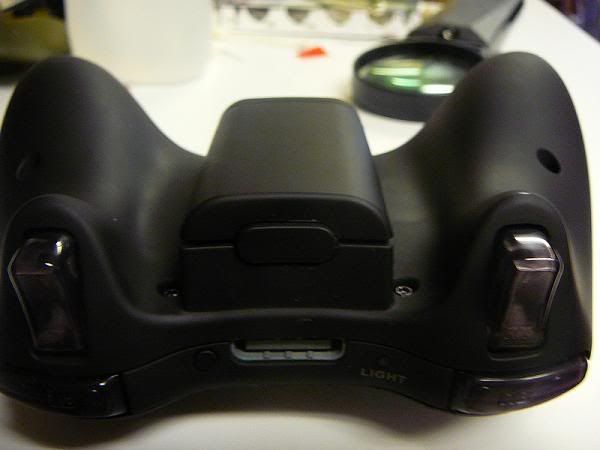

When my 2 inch ribbon cable come in it will exit the hole marked and hide behind battery when not in use.

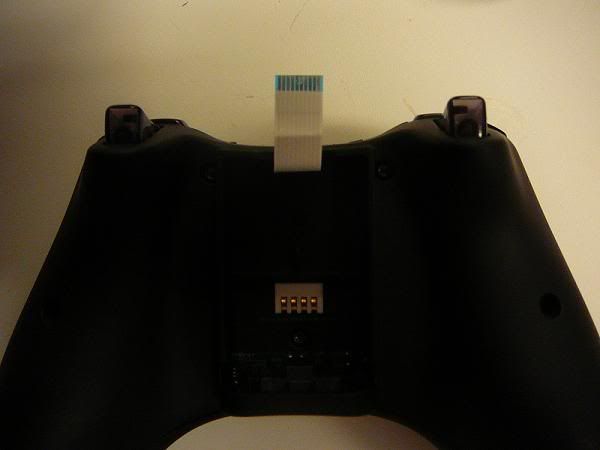

Easy connection for upgrade of hex.

Programmer that comes with the wii-boss chip.

EDIT: The black thumbsticks and dpad come from a original xbox controller, they fit perfect...

Hazer · « **Reply #1 on:** August 09, 2008, 05:38:00 PM »

OK. Now that impresses me. If I can locate one of these, I will try to do a tutorial here using that.

gameroms · « **Reply #2 on:** August 09, 2008, 05:57:20 PM »

once code is complete ill do a tutorial, rapid reload on left switch for COD4 is a

to get the timing correct

PspKicks316 · « **Reply #3 on:** August 10, 2008, 09:16:01 AM »

Woah, dude great mod. That's pretty ingenious. I like it!

xxfatsxx · « **Reply #4 on:** August 11, 2008, 05:20:29 AM »

Where did you get the clear buttons? Those things are badass. Nice job!

bill16504 · « **Reply #5 on:** August 11, 2008, 07:25:36 AM »

It looks like an XCM controller shell.

http://www.decalgirl.com/browse.cfm/4,7439.htm

gameroms · « **Reply #6 on:** August 11, 2008, 02:51:12 PM »

bill is correct about it being a XCM SOFT SHELL

bill16504 · « **Reply #7 on:** August 11, 2008, 06:32:04 PM »

Are those shells as nice as they look in the pic?

gameroms · « **Reply #8 on:** August 11, 2008, 09:56:32 PM »

yes, they are well worth the money, the soft rubber feel of it, feels so much better than stock.

i will be putting one on all controllers

The black thumbsticks and dpad come from a original xbox controller, they fit perfect. just so you know they did not come with the case

bill16504 · « **Reply #9 on:** August 13, 2008, 09:17:49 AM »

I just ordered one. Where did you get yours? I got mine from decalgirl. It was $32.44 shipped. Everywhere else I looked, they wanted over $35 plus shipping.

gameroms · « **Reply #10 on:** August 13, 2008, 02:02:54 PM »

i got it from same place.

Winterz117 · « **Reply #11 on:** August 13, 2008, 09:20:48 PM »

so where did you get the clear triggrs a,b,x,y start and back buttons? id like to get some for my mod

t0rm3nt · « **Reply #12 on:** August 13, 2008, 09:43:12 PM »

I just bought this controller.
Love at first sight.

Now I need a smaller button for rapid fire so I can have rumble packs

bill16504 · « **Reply #13 on:** August 14, 2008, 06:01:43 AM »

Quote from: Winterz117 on August 13, 2008, 09:20:48 PM

so where did you get the clear triggrs a,b,x,y start and back buttons? id like to get some for my mod

It's actually a whole aftermarket shell. The buttons come with it. As does a light kit, I believe.

KyleP · « **Reply #14 on:** August 14, 2008, 09:58:24 AM »

that is cool you did a nice design i think

gameroms · « **Reply #15 on:** August 14, 2008, 11:05:20 AM »

buttons are included in controller.

gameroms · « **Reply #16 on:** August 16, 2008, 11:54:19 AM »

Got my 2 inch ribbon cable in, and heres some updated pics.
