Author Topic: Fixing a Dell 1905FP LCD monitor that i found  (Read 6621 times)

Offline vladstir

  • ♪♪♪ Tone deff ♪♪♪
  • *
  • Posts: 70
  • Post quality +0/-0
Fixing a Dell 1905FP LCD monitor that i found
« on: January 06, 2009, 10:06:43 AM »
I went to my local recycling center to throw away cardboard and i found a 19" Dell 1905FP monitor there. I took it home and checked it out but it didnt power on. I then took it apart and took out the power board:

2 capacitors were popped

I put in 2 new capacitors that i got from other power boards that i had.

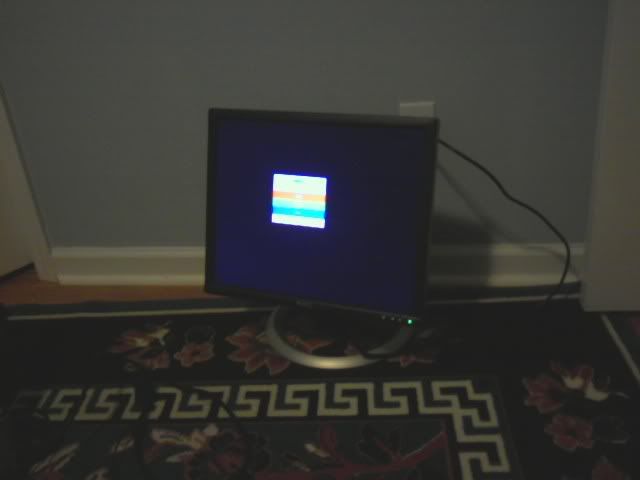

It works!

I hope this helps anybody who has a broken monitor
Logged

Offline FreeK

  • a-LeeK
  • Acidmods Alumni
  • E = MC² Mad Scientist
  • *
  • Posts: 1980
  • Post quality +3/-0
  • Gender: Male
  • Team CYBER for life
Re: Fixing a Dell 1905FP LCD monitor that i found
« Reply #1 on: January 06, 2009, 11:17:20 AM »
sweet. nice find
Logged

Offline Tec_

  • EL-Wire King
  • E = MC² Mad Scientist
  • *
  • Posts: 1869
  • Post quality +2/-0
  • Gender: Male
  • EL Wire King
Re: Fixing a Dell 1905FP LCD monitor that i found
« Reply #2 on: January 06, 2009, 01:06:03 PM »
Good job! My buddy picked up two 50" plazmas from a bar for $20 each cause they were broken and he swaped the power boards and now has two 50" tv's. I have another friend who has worked doing AV work and has made quite abut of cash fixing and selling old TV's people were throwing out
Logged

Offline bustinthejustin

  • Registered BST
  • E = MC² Mad Scientist
  • *
  • Posts: 2326
  • Post quality +1/-0
  • Gender: Male
Re: Fixing a Dell 1905FP LCD monitor that i found
« Reply #3 on: January 06, 2009, 02:22:28 PM »
That's awesome. I always thought ripping apart monitors, tvs, and power supplies were a bad idea due to the capacitors though.
Logged

Sig by Kenshinffx - Thanks!

Offline FreeK

  • a-LeeK
  • Acidmods Alumni
  • E = MC² Mad Scientist
  • *
  • Posts: 1980
  • Post quality +3/-0
  • Gender: Male
  • Team CYBER for life
Re: Fixing a Dell 1905FP LCD monitor that i found
« Reply #4 on: January 06, 2009, 02:26:12 PM »
thats the big tube screen's with the giant magnetic capacitor on the back of it

lcd/plasma doesnt have those
Logged

Offline taylorclark

  • King of the Wii-tards
  • *
  • Posts: 163
  • Post quality +0/-0
  • Gender: Male
  • I feel like I'm taking crazy pills!
    • myspace
Re: Fixing a Dell 1905FP LCD monitor that i found
« Reply #5 on: January 06, 2009, 02:43:55 PM »
nice work!
Logged
Gamertag- titan501x

Offline PspKicks316

  • Acidmods Alumni
  • Mad Bomber
  • *
  • Posts: 5709
  • Post quality +5/-4
  • Gender: Male
Re: Fixing a Dell 1905FP LCD monitor that i found
« Reply #6 on: January 06, 2009, 02:56:36 PM »
Sweet work! That's pretty awesome, free monitor lol.
Logged

Offline PhenomenalDesigns

  • Granny Spanker
  • *
  • Posts: 476
  • Post quality +0/-0
  • Gender: Male
Re: Fixing a Dell 1905FP LCD monitor that i found
« Reply #7 on: January 06, 2009, 03:00:54 PM »
Quote from: FreeK on January 06, 2009, 02:26:12 PM
thats the big tube screen's with the giant magnetic capacitor on the back of it

lcd/plasma doesnt have those
One the first pic you can see in the center right there is a huge cap there, im guessing 400v

I opened a mini usb power supply today and it had one just like that
Logged


Hoi! Pinoy ako!

Offline DubbleDutch

  • BlietZ Modding
  • Millennium Poster
  • *
  • Posts: 1234
  • Post quality +3/-0
  • Gender: Male


Re: Fixing a Dell 1905FP LCD monitor that i found
« Reply #8 on: January 06, 2009, 03:05:03 PM »
omfg very very very nice man!


well done!
Logged



To all of you crying about lag and kicks, remember… when Jesus died, took him 3 days to respawn. Now THAT is lag.

Offline Tec_

  • EL-Wire King
  • E = MC² Mad Scientist
  • *
  • Posts: 1869
  • Post quality +2/-0
  • Gender: Male
  • EL Wire King
Re: Fixing a Dell 1905FP LCD monitor that i found
« Reply #9 on: January 06, 2009, 03:30:26 PM »
yes it can still be dangerous but no if you take some precautions.


Also an good example of why you should allways use a surge protector, not just a power strip
Logged

Offline Slim Hacker

  • Mr PS3
  • Millennium Poster
  • *
  • Posts: 1140
  • Post quality +0/-0
  • Gender: Male
Re: Fixing a Dell 1905FP LCD monitor that i found
« Reply #10 on: January 06, 2009, 03:48:11 PM »
NICE I wish i had that I still have a crt monitor xD
Logged

Quote from: Jumbo
I herd you like stealing quotes ey?

Offline vladstir

  • ♪♪♪ Tone deff ♪♪♪
  • *
  • Posts: 70
  • Post quality +0/-0
Re: Fixing a Dell 1905FP LCD monitor that i found
« Reply #11 on: January 06, 2009, 08:35:16 PM »
Quote
yes it can still be dangerous but no if you take some precautions
LOL i have been shocked by one of those big capacitors before fixing another dell monitor :laughing:
Logged

Offline taylorclark

  • King of the Wii-tards
  • *
  • Posts: 163
  • Post quality +0/-0
  • Gender: Male
  • I feel like I'm taking crazy pills!
    • myspace
Re: Fixing a Dell 1905FP LCD monitor that i found
« Reply #12 on: January 07, 2009, 07:36:00 AM »
Quote from: vladstir on January 06, 2009, 08:35:16 PM
LOL i have been shocked by one of those big capacitors before fixing another dell monitor :laughing:

are they any worse than getting shocked by one of those disposable camera caps?
Logged
Gamertag- titan501x

Offline DubbleDutch

  • BlietZ Modding
  • Millennium Poster
  • *
  • Posts: 1234
  • Post quality +3/-0
  • Gender: Male


Re: Fixing a Dell 1905FP LCD monitor that i found
« Reply #13 on: January 07, 2009, 12:15:59 PM »
so,...
a friend has a broken Samsung T220
only 50% of the screen works :S
it's divided by a diagonal line from upleft to downright

the upright side of the diagonal line works.
the downleft side doesnt work.


any guess what is wrong with it?
Logged



To all of you crying about lag and kicks, remember… when Jesus died, took him 3 days to respawn. Now THAT is lag.

Offline vladstir

  • ♪♪♪ Tone deff ♪♪♪
  • *
  • Posts: 70
  • Post quality +0/-0
Re: Fixing a Dell 1905FP LCD monitor that i found
« Reply #14 on: January 09, 2009, 08:30:35 AM »
Quote
re they any worse than getting shocked by one of those disposable camera caps?
Yeah it is worse. I would not recommend shocking yourself. To be on the safe side just wait 5 minutes.

Quote
a friend has a broken Samsung T220
only 50% of the screen works :S
it's divided by a diagonal line from upleft to downright

the upright side of the diagonal line works.
the downleft side doesnt work.


any guess what is wrong with it?
The problem is with the LCD. Try putting some pressure on the ribbon cable that is directly attached to the glass. Ive heard that people have fixed PSP video issues (such as random color lines) by putting a gumwrapper under neath the button panel in the problem area. Also reseating the flex cable. Ill try to get pics of what im talking about
Logged

Offline vladstir

  • ♪♪♪ Tone deff ♪♪♪
  • *
  • Posts: 70
  • Post quality +0/-0
Re: Fixing a Dell 1905FP LCD monitor that i found
« Reply #15 on: January 09, 2009, 08:38:56 AM »

Logged

Offline bustinthejustin

  • Registered BST
  • E = MC² Mad Scientist
  • *
  • Posts: 2326
  • Post quality +1/-0
  • Gender: Male
Re: Fixing a Dell 1905FP LCD monitor that i found
« Reply #16 on: January 09, 2009, 01:30:28 PM »
Vlad you should edit your post. Also, you ARE NOT safe when you leave a cap unplugged for only 5 minutes. Some caps can hold charges for well over a year.
Logged

Sig by Kenshinffx - Thanks!

Offline vladstir

  • ♪♪♪ Tone deff ♪♪♪
  • *
  • Posts: 70
  • Post quality +0/-0
Re: Fixing a Dell 1905FP LCD monitor that i found
« Reply #17 on: January 09, 2009, 08:54:49 PM »
Quote
Vlad you should edit your post. Also, you ARE NOT safe when you leave a cap unplugged for only 5 minutes. Some caps can hold charges for well over a year.
Not in LCD monitors. I have checked capacitors with a multimeter. They hold a charge for 30 seconds.
Logged
