Wireless CG2 Traces
« on: January 14, 2010, 08:04:57 PM »

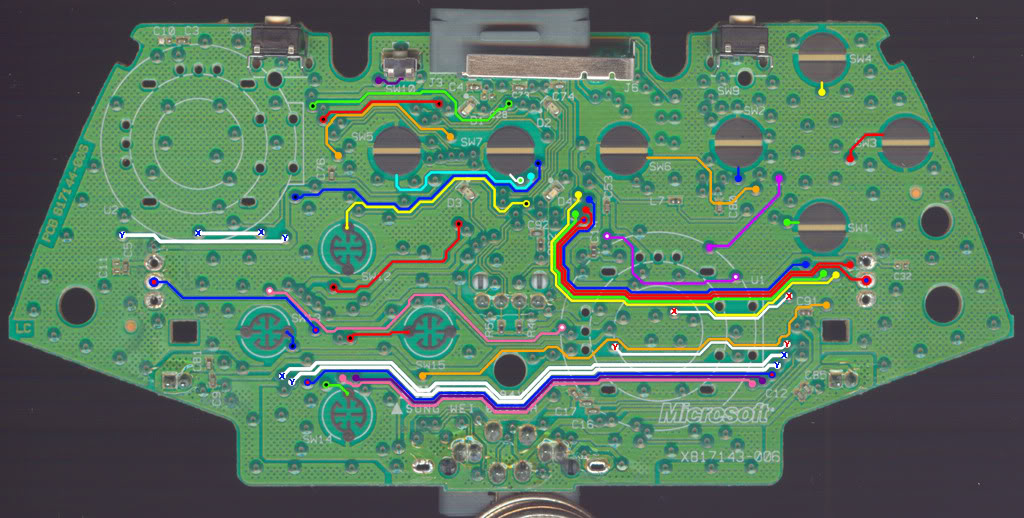

TOP

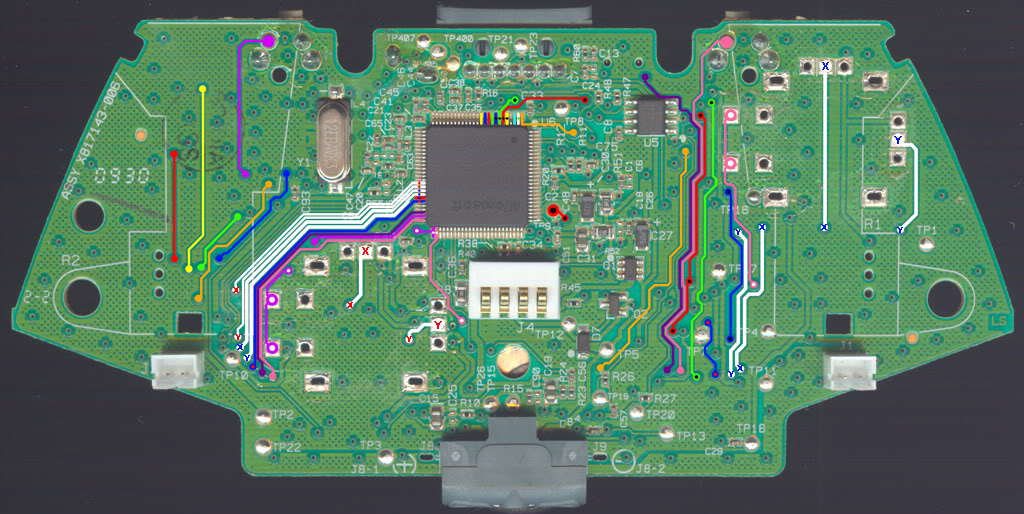

BOTTOM


TP1 - N/A
TP2 - Ground
TP3 - B+
TP4 - Ground
TP5 - B+
TP7 - Ground
TP8 - Analog Voltage, 1.5v (Switched)
TP9 - DR
TP10 - Light Rumble
TP11 - Heavy Rumble
TP12 -
TP13 -
TP15 -
TP16 - N/A
TP17 - Ground
TP18 -
TP19 -
TP20 -
TP21 - USB D- (PnC Cable)
TP22 - Ground
TP23 - USB D+ (PnC Cable)
TP26 -
TP400 - Ground
TP405 - Antenna
TP407 - Ground

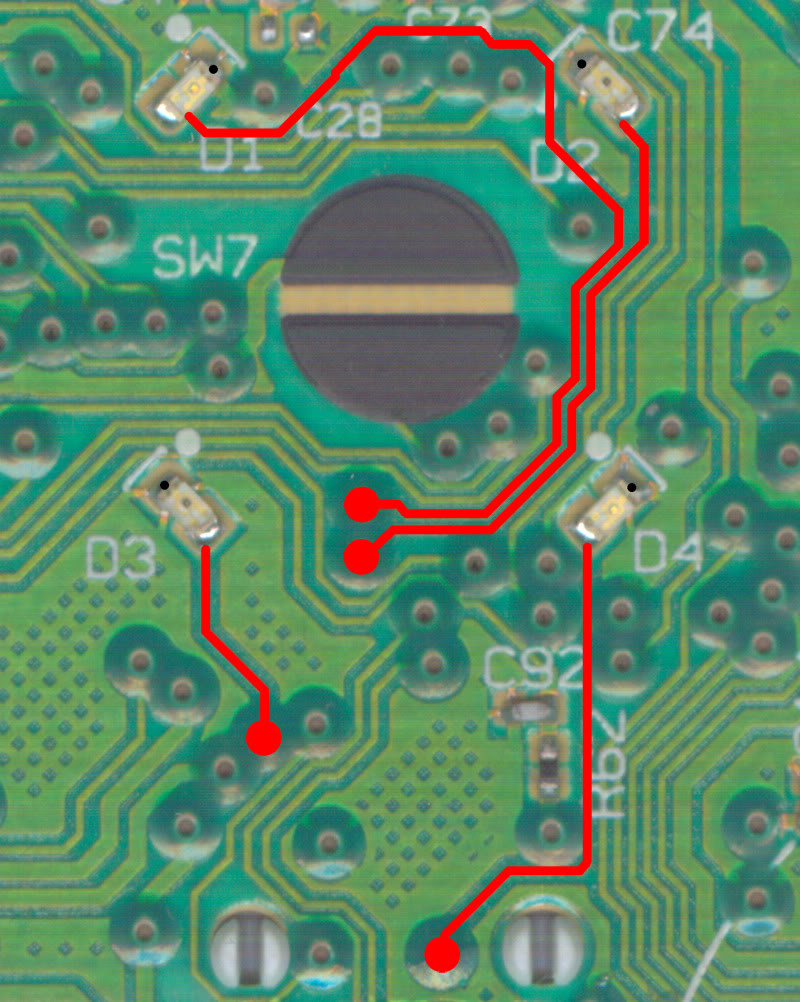

LED TRACES
« Last Edit: June 09, 2021, 08:23:09 PM by RDC »
Logged
Screwing up is one of the best learning tools, so long as the only thing you're not learning is how to screw up.

Offline Rodent

  • XBOX,XBOX360,PS3,WII
  • Moderator
  • Around the block
  • *
  • Posts: 2983
  • Post quality +75/-5
  • Gender: Male
  • MODDER, REPAIR, CUSTOM IDEAS.
Re: Wireless CG2 Traces
« Reply #1 on: December 10, 2011, 03:38:07 AM »
Would anyone know if they have pic showing the trace for the leds on cg2 or is it the same a cg?
Logged

 Tracey: I cant believe Rodent of all people made my damn day
3D0: snacks cartoons and naps  lol sounds like rodents typcial day :rofl:
Rodent consoles mods

Offline Anonamous

  • The Unknown Identity
  • Granny Spanker
  • *
  • Posts: 472
  • Post quality +14/-1
  • Gender: Male
  • Electrical Engineering Student
Re: Wireless CG2 Traces
« Reply #2 on: December 10, 2011, 09:26:50 AM »
Quote from: Rodent on December 10, 2011, 03:38:07 AM
Would anyone know if they have pic showing the trace for the leds on cg2 or is it the same a cg?

It is most likely not the same bro.
Logged

DarkSydeCraZe

  • Guest
Re: Wireless CG2 Traces
« Reply #3 on: December 20, 2011, 09:31:04 PM »
Noob here.  How would I solder/hookup a wire to the holes (eg. the Y button).
I was planning on wiring a momentary switch to it.
Any reply is greatly appreciated.
« Last Edit: December 20, 2011, 10:01:35 PM by DarkSydeCraZe »
Logged

Offline FOOKz™

  • Hardware Modder
  • Research & Development
  • E = MC² Mad Scientist
  • *
  • Posts: 2070
  • Post quality +37/-2
  • Electronics Expert Electrical Engineer
Re: Wireless CG2 Traces
« Reply #4 on: December 21, 2011, 05:29:41 PM »
Quote from: DarkSydeCraZe on December 20, 2011, 09:31:04 PM
Noob here.  How would I solder/hookup a wire to the holes (eg. the Y button).
I was planning on wiring a momentary switch to it.
Any reply is greatly appreciated.

Take sandpaper and sand the green part off of your circuit board to expose the copper trace underneath.
Logged

Follow my Instagram and subscribe to my YouTube

Offline RDC

  • Administrator
  • Around the block
  • *
  • Posts: 2611
  • Post quality +90/-2
  • Gender: Male
  • The CGnome Project
Re: Wireless CG2 Traces
« Reply #5 on: April 14, 2016, 02:17:28 AM »
Use and Xacto knife or fiberglass pen to remove the solder mask at the Y via, and then some 30awg Kynar wire.

Controller shown is NOT the G2, this is only for an example of how to prep and solder to a Via.









Logged
