Wireless CG Traces
« on: January 14, 2010, 08:06:16 PM »

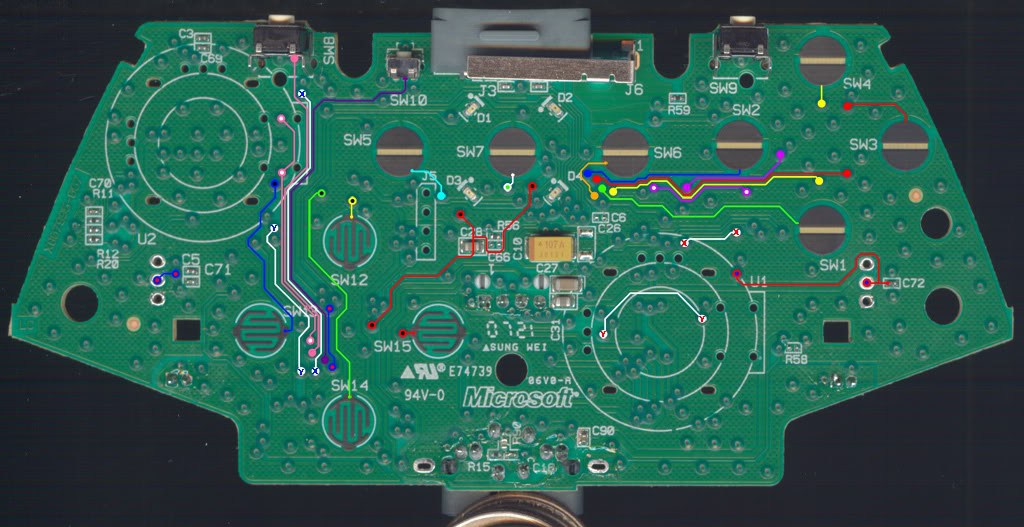

TOP

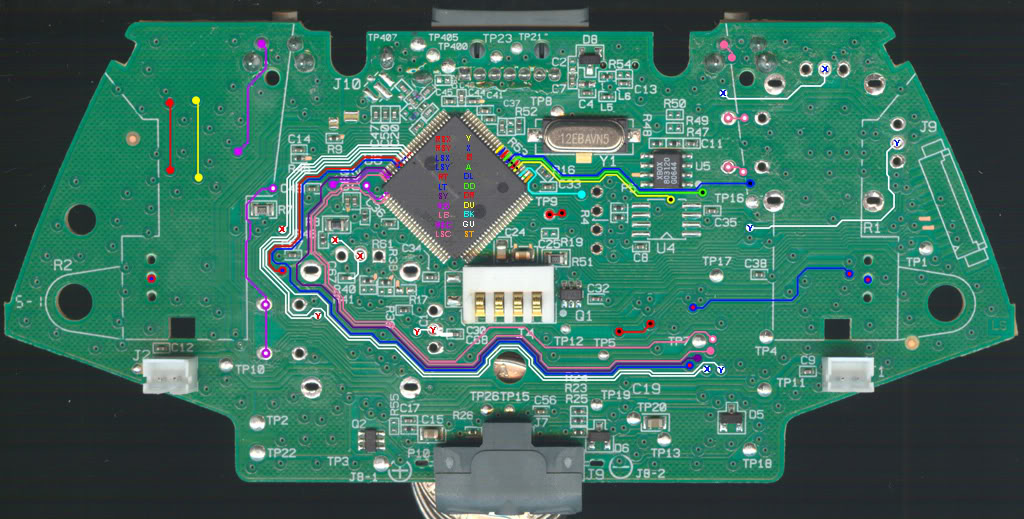

BOTTOM



TP1 - B+ (PnC Pack and AA Pack)
TP2 - Ground


TP8 - Analog Voltage, 1.5v
TP9 - DR
TP10 - Light Rumble
TP11 - Heavy Rumble
TP21 - USB D+ (PnC Cable)
TP22 - Ground
TP23 - USB D- (PnC Cable)
TP400 - Ground
TP407 - Ground
« Last Edit: June 09, 2021, 08:29:08 PM by RDC »
Logged
Screwing up is one of the best learning tools, so long as the only thing you're not learning is how to screw up.

Offline F4thAcE

  • Hillbilly Modder
  • Motor Mouth
  • *
  • Posts: 88
  • Post quality +0/-0
  • Gender: Male
  • i live in the country my neigbors are trees.
Re: Wireless CG (Common Ground) Controller Button/Analog Traces
« Reply #1 on: January 15, 2010, 06:39:27 PM »
nice pics thanks much :D
Logged

Offline Rodent

  • XBOX,XBOX360,PS3,WII
  • Moderator
  • Around the block
  • *
  • Posts: 2983
  • Post quality +75/-5
  • Gender: Male
  • MODDER, REPAIR, CUSTOM IDEAS.
Re: Wireless CG Traces
« Reply #2 on: June 30, 2011, 10:53:45 AM »
Does anyone have the traces for the leds for this bored, someone gave me a controller they tried to change the leds and burnt the pads off where the leds go, would like to put them back in and wire them directly if possible

thanks in advance!
Logged

 Tracey: I cant believe Rodent of all people made my damn day
3D0: snacks cartoons and naps  lol sounds like rodents typcial day :rofl:
Rodent consoles mods

Offline hyper999

  • Acidmods Alumni
  • Millennium Poster
  • *
  • Posts: 1158
  • Post quality +544/-3
  • Research and Development
Re: Wireless CG Traces
« Reply #3 on: June 30, 2011, 12:32:32 PM »
Logged

Offline Rodent

  • XBOX,XBOX360,PS3,WII
  • Moderator
  • Around the block
  • *
  • Posts: 2983
  • Post quality +75/-5
  • Gender: Male
  • MODDER, REPAIR, CUSTOM IDEAS.
Re: Wireless CG Traces
« Reply #4 on: June 30, 2011, 12:39:04 PM »
Thanks hyper I looked around, thought we had it posted here on AM i couldnt find it though thanks agian.
Logged

 Tracey: I cant believe Rodent of all people made my damn day
3D0: snacks cartoons and naps  lol sounds like rodents typcial day :rofl:
Rodent consoles mods

Offline 1TONpete

  • Millennium Poster
  • *
  • Posts: 1224
  • Post quality +47/-2
  • Sony specialist
Re: Wireless CG Traces
« Reply #5 on: July 26, 2011, 01:05:51 PM »
Can some one explain J9 to me?
Logged

Offline RDC

  • Administrator
  • Around the block
  • *
  • Posts: 2609
  • Post quality +90/-2
  • Gender: Male
  • The CGnome Project
Re: Wireless CG Traces
« Reply #6 on: September 07, 2011, 09:49:07 AM »
It's just a leftover from when the controller was designed, probably a debug or programming header is all. You'd have to have the schematic to take a better guess so you could tell exactly what it's connected to.
Logged
