High Res Board Scans Parts Removed (All Controller Types)
« on: January 15, 2010, 10:17:56 PM »
Click any of the pics for a much larger 1800 x 840 or so version of the image, can't really make out too much on these, but on those ya can make out about all you'll probably ever need too for sure.

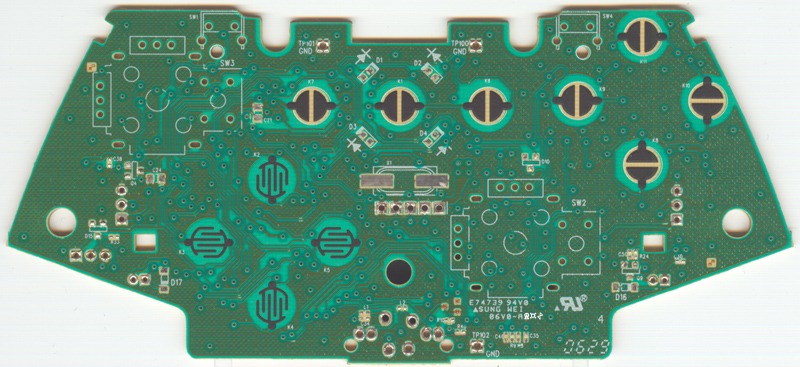

WIRED MATRIX BOARD TOP

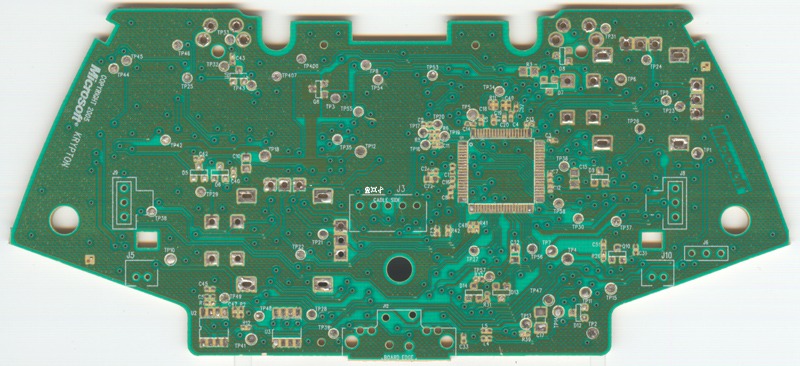

WIRED MATRIX BOARD BOTTOM

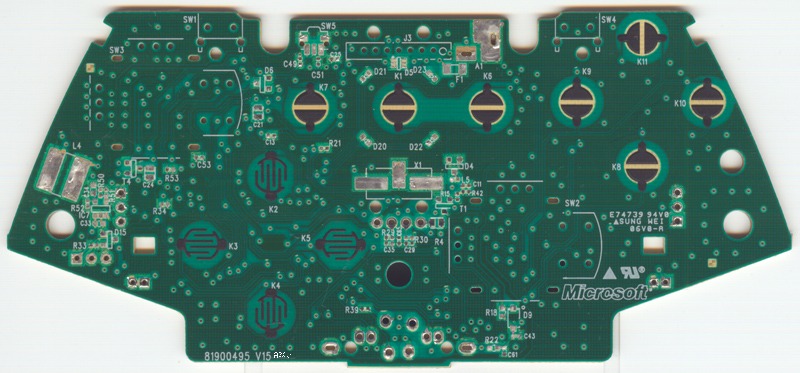

WIRELESS MATRIX BOARD TOP


WIRELESS MATRIX BOARD BOTTOM

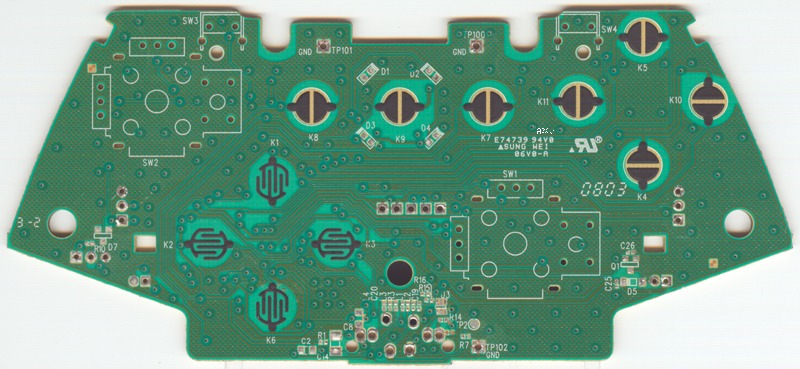

WIRED CL BOARD TOP

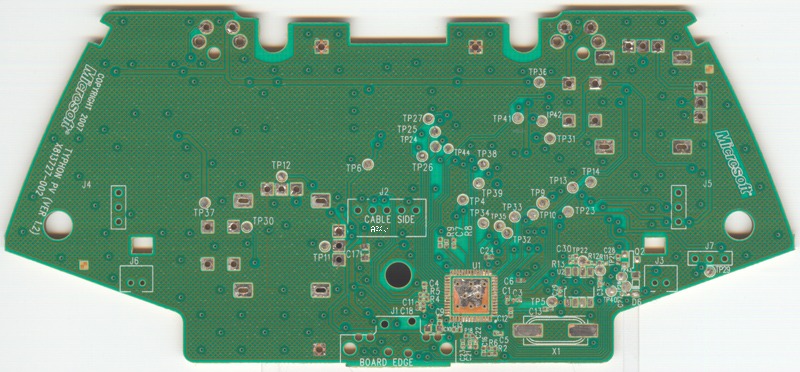

WIRED CL BOARD BOTTOM

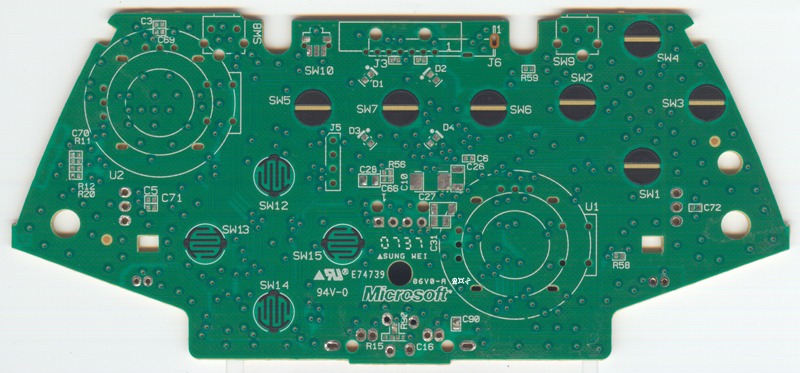

WIRELESS CG BOARD TOP

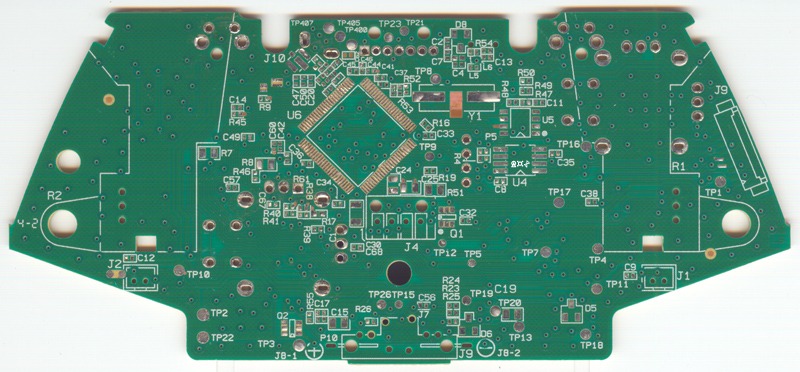

WIRELESS CG BOARD BOTTOM

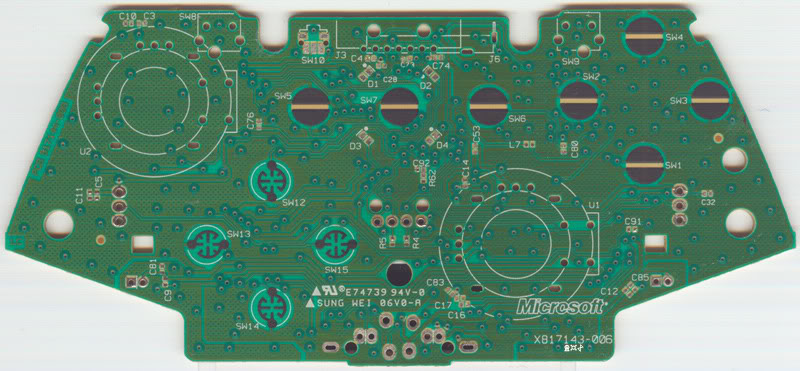

WIRELESS CG2 BOARD TOP


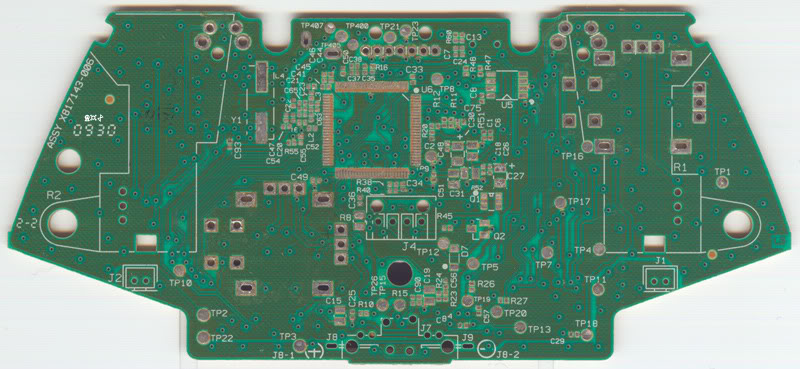

WIRELESS CG2 BOARD BOTTOM

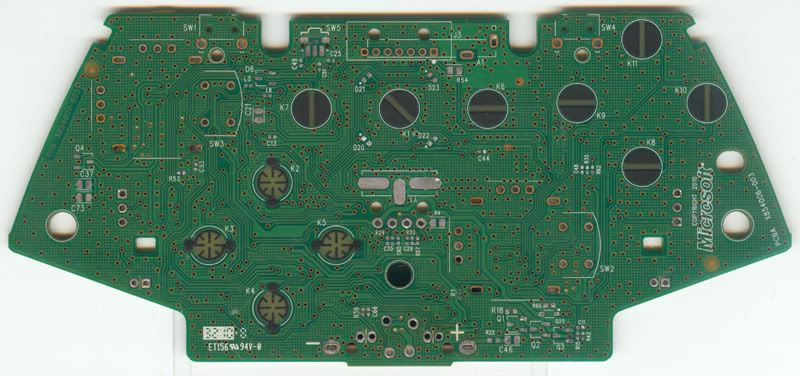

WIRELESS MATRIX2 BOARD TOP

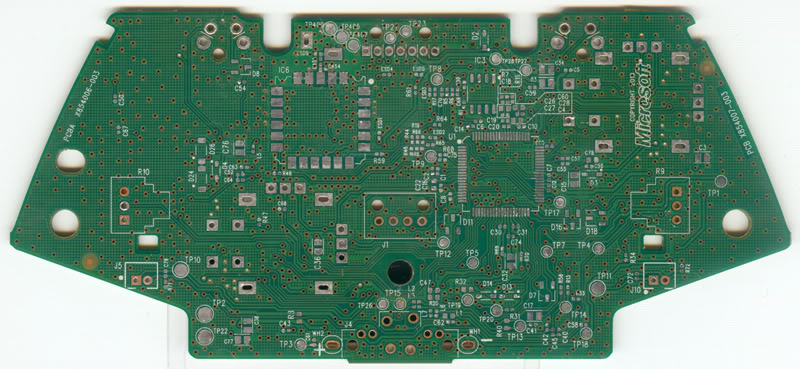

WIRELESS MATRIX2 BOARD BOTTOM
« Last Edit: July 25, 2024, 05:46:12 AM by RDC »
Logged
Screwing up is one of the best learning tools, so long as the only thing you're not learning is how to screw up.

Offline 802Chives

  • Sargeant at Arms
  • Acidmods Alumni
  • Millennium Poster
  • *
  • Posts: 1304
  • Post quality +10/-0
  • Gender: Male
Re: Wired and Wireless Controller Board Scans, ALL Components Removed
« Reply #1 on: January 28, 2010, 11:54:09 AM »
thanks for posting RDC.  these pics are like gold. pinned
Logged

Offline Ben.

  • Club AM VIP
  • Acid Modder
  • *
  • Posts: 657
  • Post quality +2/-0
  • Gender: Male
Re: Wired and Wireless Controller Board Scans, ALL Components Removed
« Reply #2 on: January 28, 2010, 12:04:42 PM »
Thanks RDC, not any CG2 scans?
Logged

Offline RDC

  • Administrator
  • Around the block
  • *
  • Posts: 2609
  • Post quality +90/-2
  • Gender: Male
  • The CGnome Project
Re: Wired and Wireless Controller Board Scans, ALL Components Removed
« Reply #3 on: January 28, 2010, 07:17:12 PM »
Welcome everyone.

CG2 has been finished up and added.
« Last Edit: January 28, 2010, 09:30:23 PM by RDC »
Logged
Screwing up is one of the best learning tools, so long as the only thing you're not learning is how to screw up.

Offline Juggalo4Ever2005

  • Guppy
  • *
  • Posts: 1
  • Post quality +0/-0
  • Gender: Male
  • Acidmods User
HELP missing solder pads on right joystick!!!!!!
« Reply #4 on: March 25, 2011, 10:37:42 AM »
I have a Wireless CG controller. In the process of changing the joysticks I broke 2 solder pads off of the right joystick up/down variable resistor! I need to know where the connections go to so I can fix my controller. I tried to trace them down myself and can't figure it out.  on the pic i am sending u is the 2 pads that are missing. CAN U HELP ME????? Please



Thanks Jim
Logged

Offline RDC

  • Administrator
  • Around the block
  • *
  • Posts: 2609
  • Post quality +90/-2
  • Gender: Male
  • The CGnome Project
Re: High Res Board Scans Parts Removed (All Controller Types)
« Reply #5 on: March 29, 2011, 01:02:42 PM »

The top missing pad is the Analog Voltage. It's the same connection as the top row of 3 there, far right one, so you can just solder a wire from there to it, or to TP8, either one.

The middle missing pad is the Wiper, and you'll have to solder to a Via for that one. The CG board is traced out here - https://www.acidmods.com/forum/index.php/topic,34544.0.html
Logged
Screwing up is one of the best learning tools, so long as the only thing you're not learning is how to screw up.

Offline RDC

  • Administrator
  • Around the block
  • *
  • Posts: 2609
  • Post quality +90/-2
  • Gender: Male
  • The CGnome Project
Re: High Res Board Scans Parts Removed (All Controller Types)
« Reply #6 on: May 22, 2012, 01:10:11 PM »
Update: Added the Matrix2 version board.
Logged
Screwing up is one of the best learning tools, so long as the only thing you're not learning is how to screw up.

Offline Dark Knight_TJ

  • Chief squatting Hard
  • *
  • Posts: 13
  • Post quality +0/-0
  • Gender: Male
  • Acidmods User
Re: High Res Board Scans Parts Removed (All Controller Types)
« Reply #7 on: May 04, 2022, 01:02:11 PM »
On WIRELESS CG BOARD BOTTOM what is component Q2? I mean model to search for a replacement . My controller does work using battery but is not working using cable . I tested and 5v goes to one of those pins on that IC but no voltage or very low voltage is going out of it. Thanks!
Logged

Offline RDC

  • Administrator
  • Around the block
  • *
  • Posts: 2609
  • Post quality +90/-2
  • Gender: Male
  • The CGnome Project
Re: High Res Board Scans Parts Removed (All Controller Types)
« Reply #8 on: May 04, 2022, 05:37:09 PM »
It's a ZXM62P02E6 or any other P-Channel FET in the same package with close enough spces to that. It doesn't have to be that exact one.
Logged
Screwing up is one of the best learning tools, so long as the only thing you're not learning is how to screw up.

Offline Dark Knight_TJ

  • Chief squatting Hard
  • *
  • Posts: 13
  • Post quality +0/-0
  • Gender: Male
  • Acidmods User
Re: High Res Board Scans Parts Removed (All Controller Types)
« Reply #9 on: May 04, 2022, 07:32:02 PM »
Thanks . Using the ones used  for Xbox one would work?. I have plenty of them
Logged

Offline RDC

  • Administrator
  • Around the block
  • *
  • Posts: 2609
  • Post quality +90/-2
  • Gender: Male
  • The CGnome Project
Re: High Res Board Scans Parts Removed (All Controller Types)
« Reply #10 on: May 06, 2022, 02:11:37 AM »
No idea what 'ones' you're referring to there. Compare the specs in the datasheets for them.
Logged
Screwing up is one of the best learning tools, so long as the only thing you're not learning is how to screw up.

Offline Dark Knight_TJ

  • Chief squatting Hard
  • *
  • Posts: 13
  • Post quality +0/-0
  • Gender: Male
  • Acidmods User
Re: High Res Board Scans Parts Removed (All Controller Types)
« Reply #11 on: June 30, 2022, 10:25:52 AM »
Thanks again and for WIRELESS MATRIX BOARD BOTTOM what is IC T3? I own a controlled Wich was working fine , suddenly not turning on anymore . Opened and found that IC smoking and getting very hot . Assume is gone . Now I need a replacement part to buy some of them  :rofl:
Logged

Offline RDC

  • Administrator
  • Around the block
  • *
  • Posts: 2609
  • Post quality +90/-2
  • Gender: Male
  • The CGnome Project
Re: High Res Board Scans Parts Removed (All Controller Types)
« Reply #12 on: June 30, 2022, 11:20:21 AM »
No idea what you mean by IC T3.
Logged
Screwing up is one of the best learning tools, so long as the only thing you're not learning is how to screw up.

Offline Dark Knight_TJ

  • Chief squatting Hard
  • *
  • Posts: 13
  • Post quality +0/-0
  • Gender: Male
  • Acidmods User
Re: High Res Board Scans Parts Removed (All Controller Types)
« Reply #13 on: July 02, 2022, 09:52:33 AM »
Sorry , this one https://ibb.co/WKbG3Yg , the square
Logged

Offline RDC

  • Administrator
  • Around the block
  • *
  • Posts: 2609
  • Post quality +90/-2
  • Gender: Male
  • The CGnome Project
Re: High Res Board Scans Parts Removed (All Controller Types)
« Reply #14 on: July 02, 2022, 02:54:14 PM »
Pretty sure it's a FET, NDS335N
Logged
Screwing up is one of the best learning tools, so long as the only thing you're not learning is how to screw up.

Offline Dark Knight_TJ

  • Chief squatting Hard
  • *
  • Posts: 13
  • Post quality +0/-0
  • Gender: Male
  • Acidmods User
Re: High Res Board Scans Parts Removed (All Controller Types)
« Reply #15 on: July 02, 2022, 05:52:01 PM »
Thank you sir !  :hifive:
Logged

Offline mattbass90

  • Guppy
  • *
  • Posts: 1
  • Post quality +0/-0
  • Gender: Male
  • Acidmods User
Re: High Res Board Scans Parts Removed (All Controller Types)
« Reply #16 on: September 30, 2023, 03:40:08 PM »
Hello.  Does anyone know what component Q4 is on PCB X854006-003?
Logged

Offline RDC

  • Administrator
  • Around the block
  • *
  • Posts: 2609
  • Post quality +90/-2
  • Gender: Male
  • The CGnome Project
Re: High Res Board Scans Parts Removed (All Controller Types)
« Reply #17 on: September 30, 2023, 09:56:38 PM »
It's some kind of PNP Transistor, no idea on the specs. Maybe try a MMBT4403 or similar there.
