Author Topic: Mod Off Entry 56012749 (Read 1560 times)

robin1989 · « **on:** February 01, 2011, 10:20:17 AM »

this is the Entry for Entrant 56012749

Email Admin@acidmods.com To Have Updates Posted with the Subject Mod Off Update - (update Number) - 56012749

robin1989 · « **Reply #1 on:** February 05, 2011, 09:24:44 AM »

Yes I'm going retro, time to mod my PS1

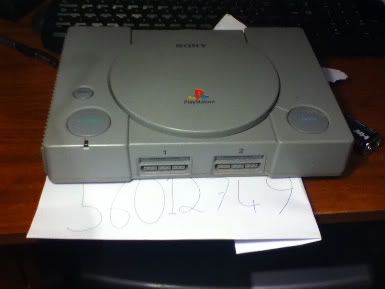

This is the stock case.

The thing is i can't find the pinout diagrams so i have too look for them myself.

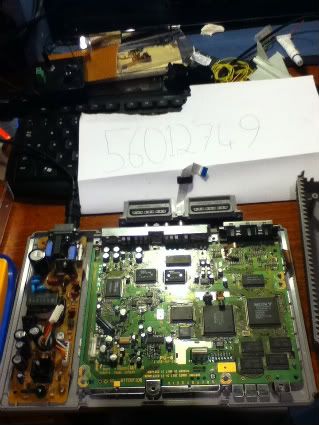

This is the inside with the PCB protector off.

This is the power board which changes the ~230v to 0.3 3.66 7.58v dc Individually

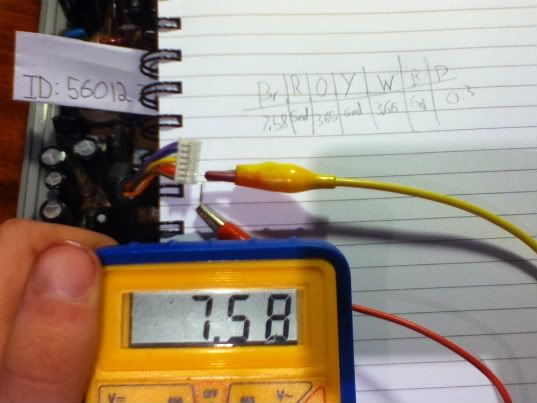

This is the connector from the power board to the PCB with the various outputs as i just listed colour coded Of course

falo21 · « **Reply #2 on:** February 10, 2011, 10:13:14 AM »

cant wait to see what you have done this classic.
