WORK LOG SOUND ACTIVATED FLAME XBOX 360 MOD.
« on: July 16, 2011, 08:22:30 PM »
                                       FLAME MODDED XBOX 360


 PARTS NEEDED

                  8 RED 5MM LEDS
                  6 ORANGE 5MM LEDS
                  6 YELLOW 5 MM LEDS
                  2 TIP 31 Components
                  1 DPDT Switch
                  30 AWG Wire
                  1 PCB Board
                  2 MOBO StandOffs
                  1 Molex connector male and 1 female Molex connector
                  14 Gauge wire for the Molex connectors
                  Resistors
                  Patients

TOOLS NEEDED

                  Soldering Iron
                  Solder
                  3rd hand with Magnify Glass
                  Magnify glass or light with Magnify glass
                  5mm drill bit size of leds
                  Patients again

Link posted to understand sound activated device
                  http://www.danielandrade.net/2005/12/06/howto-blinking-leds/

Link posted for Led caculator
                 http://metku.net/index.html?sect=view&n=1&path=mods/ledcalc/index_eng#parallel

Found this on another site


"I can't take all the credit for this. I had alot of help from these sites and pics listed above"

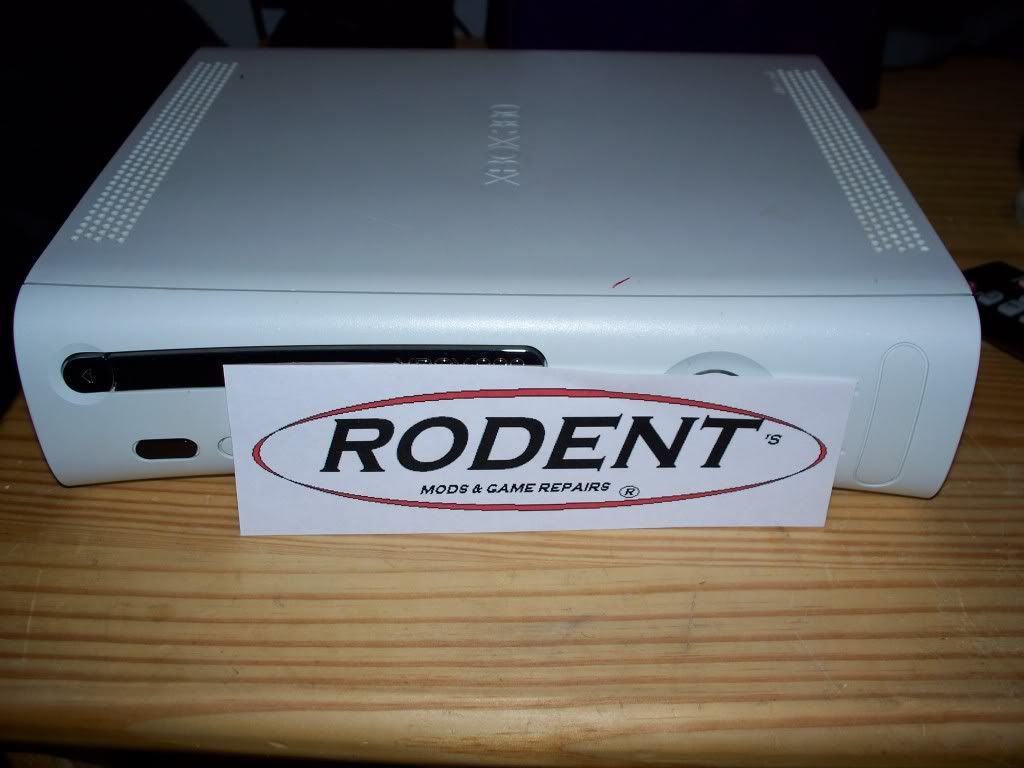

Regular XBOX 360 Pro

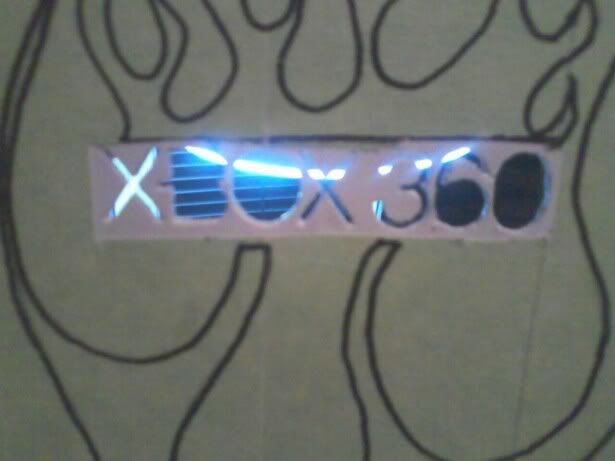

Here it is finished and in action
http://www.youtube.com/watch?v=CI3yUY1q-Eg
« Last Edit: July 16, 2011, 09:24:34 PM by Rodent »

 Tracey: I cant believe Rodent of all people made my damn day
3D0: snacks cartoons and naps  lol sounds like rodents typcial day :rofl:
Rodent consoles mods

Offline nEoVaLoR

  • Local Moderator
  • Acid Modder
  • *
  • Posts: 734
  • Post quality +36/-26
  • Gender: Male
  • Young Modder
Re: WORK LOG SOUND ACTIVATED FLAME XBOX 360 MOD.
« Reply #1 on: July 16, 2011, 10:05:34 PM »
That is....... SCHW33333333333333333T

Offline snowcolt17

  • Moderator
  • Acid Modder
  • *
  • Posts: 552
  • Post quality +16/-1
  • Gender: Male
  • If all else fails, reflow it
Re: WORK LOG SOUND ACTIVATED FLAME XBOX 360 MOD.
« Reply #2 on: July 17, 2011, 12:54:50 AM »
nice rodent!! lots of info and looks good! thanks alot. it will help people like me


Offline lovey

  • ♪♪♪ Tone deff ♪♪♪
  • *
  • Posts: 52
  • Post quality +2/-0
  • Gender: Male
  • LOVEY AKA THE GOD FROM ABOVE
Re: WORK LOG SOUND ACTIVATED FLAME XBOX 360 MOD.
« Reply #3 on: July 17, 2011, 01:43:14 AM »
very nice great work :#1:

Offline hyper999

  • Acidmods Alumni
  • Millennium Poster
  • *
  • Posts: 1158
  • Post quality +544/-3
  • Research and Development
Re: WORK LOG SOUND ACTIVATED FLAME XBOX 360 MOD.
« Reply #4 on: July 17, 2011, 04:35:07 AM »
Very nice work again   :clap:

Offline Rodent

  • XBOX,XBOX360,PS3,WII
  • Moderator
  • Around the block
  • *
  • Posts: 2983
  • Post quality +75/-5
  • Gender: Male
  • MODDER, REPAIR, CUSTOM IDEAS.
Re: WORK LOG SOUND ACTIVATED FLAME XBOX 360 MOD.
« Reply #5 on: July 17, 2011, 04:56:49 AM »
Thanks Guys! This was my First XBOX 360 Mod. And the Purple xbox was the 2nd case mod. Thankas again for all the  comments . I try to do my best to impress :tup:

 Tracey: I cant believe Rodent of all people made my damn day
3D0: snacks cartoons and naps  lol sounds like rodents typcial day :rofl:
Rodent consoles mods

Offline snowcolt17

  • Moderator
  • Acid Modder
  • *
  • Posts: 552
  • Post quality +16/-1
  • Gender: Male
  • If all else fails, reflow it
Re: WORK LOG SOUND ACTIVATED FLAME XBOX 360 MOD.
« Reply #6 on: July 17, 2011, 07:05:55 AM »
may i ask again what you cut it with. looks really clean :). keep the good work up ;)


Offline Luigus

  • Who Farted ???
  • *
  • Posts: 219
  • Post quality +6/-3
  • Gender: Male
  • PSP-Direct Team
Re: WORK LOG SOUND ACTIVATED FLAME XBOX 360 MOD.
« Reply #7 on: July 17, 2011, 07:58:22 AM »
AWEsOME!!!!

Offline Rodent

  • XBOX,XBOX360,PS3,WII
  • Moderator
  • Around the block
  • *
  • Posts: 2983
  • Post quality +75/-5
  • Gender: Male
  • MODDER, REPAIR, CUSTOM IDEAS.
Re: WORK LOG SOUND ACTIVATED FLAME XBOX 360 MOD.
« Reply #8 on: July 17, 2011, 08:00:56 AM »
Some call it a Jigsaw and others call it a scroll saw, just easier to show you a picture.

 Tracey: I cant believe Rodent of all people made my damn day
3D0: snacks cartoons and naps  lol sounds like rodents typcial day :rofl:
Rodent consoles mods

Offline snowcolt17

  • Moderator
  • Acid Modder
  • *
  • Posts: 552
  • Post quality +16/-1
  • Gender: Male
  • If all else fails, reflow it
Re: WORK LOG SOUND ACTIVATED FLAME XBOX 360 MOD.
« Reply #9 on: July 17, 2011, 08:17:44 AM »
Some call it a Jigsaw and others call it a scroll saw, just easier to show you a picture.

its some type of saw  :rofl:
looks fun :D thanks for the info rodent


Offline Anonamous

  • The Unknown Identity
  • Granny Spanker
  • *
  • Posts: 472
  • Post quality +14/-1
  • Gender: Male
  • Electrical Engineering Student
Re: WORK LOG SOUND ACTIVATED FLAME XBOX 360 MOD.
« Reply #10 on: July 17, 2011, 08:24:39 AM »
For anybody wondering where the AV cable pinouts came from, they came from xbox-scene.

It looks good Rodent, only thing I'm noticing though is that it appears that the led's are a little-bit off beat with the sound.

Offline Rodent

  • XBOX,XBOX360,PS3,WII
  • Moderator
  • Around the block
  • *
  • Posts: 2983
  • Post quality +75/-5
  • Gender: Male
  • MODDER, REPAIR, CUSTOM IDEAS.
Re: WORK LOG SOUND ACTIVATED FLAME XBOX 360 MOD.
« Reply #11 on: July 17, 2011, 08:35:24 AM »
For anybody wondering where the AV cable pinouts came from, they came from xbox-scene.

It looks good Rodent, only thing I'm noticing though is that it appears that the led's are a little-bit off beat with the sound.

Thanks Anonamouse, for mentioning where the AV cable pinouts came from, i totally forgot where they came from. thank you!

 And ,theres a little secret to the reason its off beat, not all the leds are on the same audio out put, the top part is to one side of the left audio and the bottom is to the right side of the audio , if you watch closely you will notice that the bottom flickers like the flame is starting and then the top lights took me a few trys to get it right.

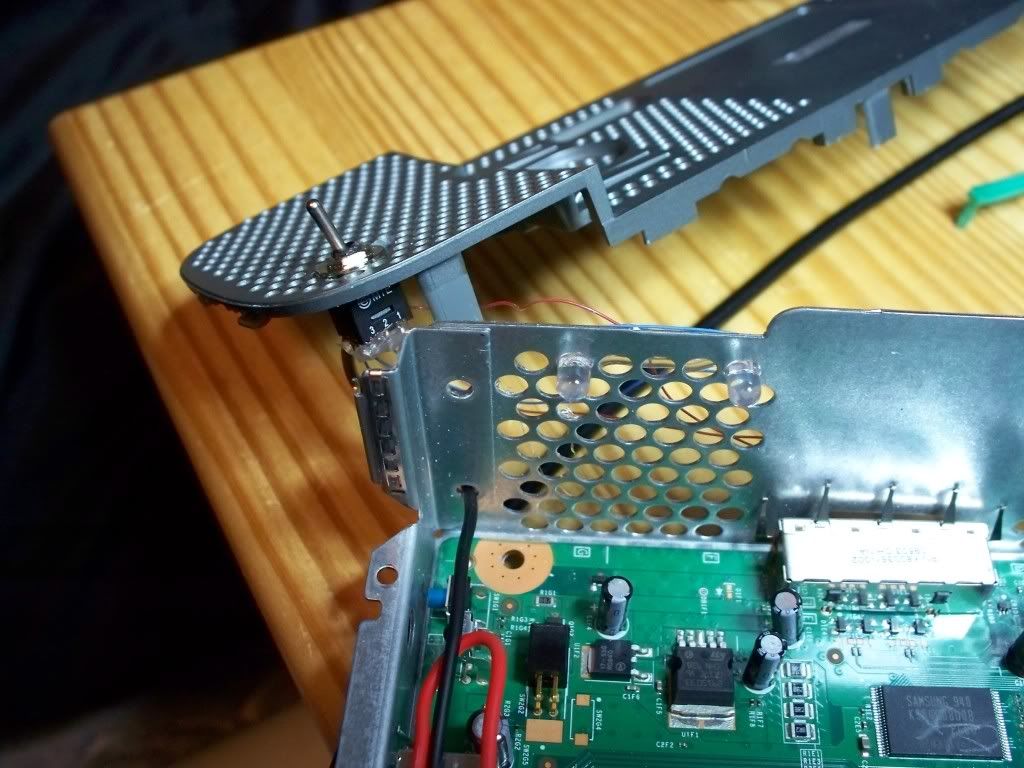

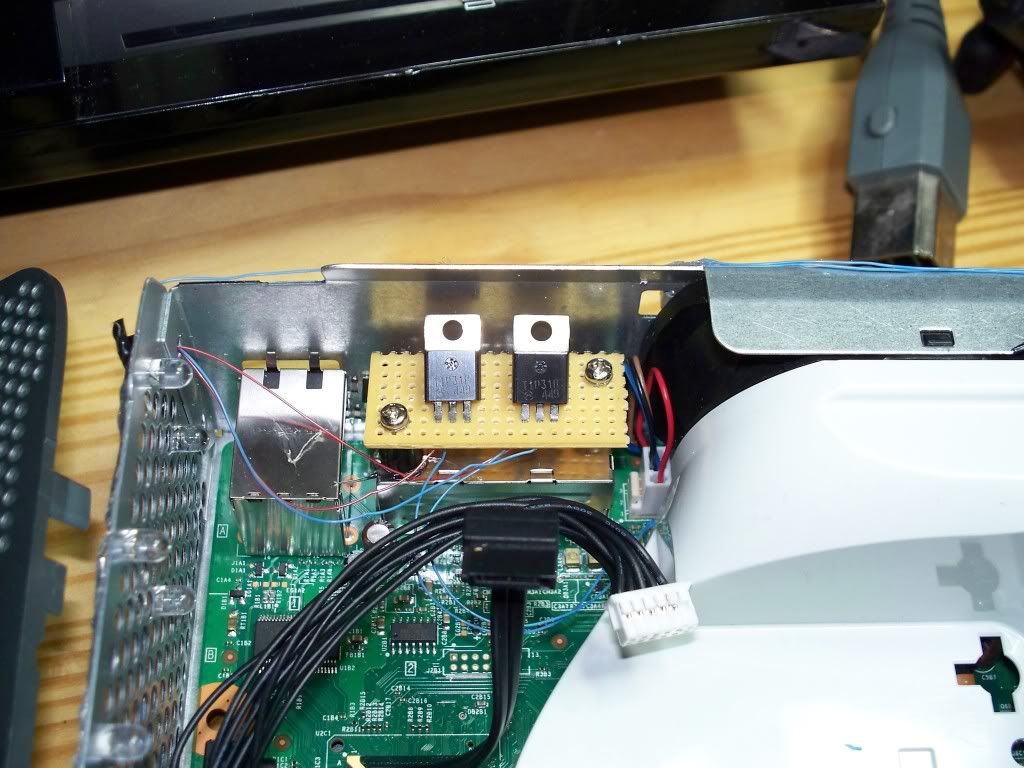

Edit: thats why I used a DPDT switch and not a SPST switch, and 2 tip31 components for left and right audio.
« Last Edit: July 17, 2011, 08:45:06 AM by Rodent »

 Tracey: I cant believe Rodent of all people made my damn day
3D0: snacks cartoons and naps  lol sounds like rodents typcial day :rofl:
Rodent consoles mods

Offline nEoVaLoR

  • Local Moderator
  • Acid Modder
  • *
  • Posts: 734
  • Post quality +36/-26
  • Gender: Male
  • Young Modder
Re: WORK LOG SOUND ACTIVATED FLAME XBOX 360 MOD.
« Reply #12 on: July 17, 2011, 12:13:02 PM »
For anybody wondering where the AV cable pinouts came from, they came from xbox-scene.

It looks good Rodent, only thing I'm noticing though is that it appears that the led's are a little-bit off beat with the sound.

It's a stereo led mod... it looks like he has sections attatched to left audio, and the other to the right. It's like in a PSP.. depending on the song, the leds dont always match up

EDIT: what rodent said ;)

Offline Rodent

  • XBOX,XBOX360,PS3,WII
  • Moderator
  • Around the block
  • *
  • Posts: 2983
  • Post quality +75/-5
  • Gender: Male
  • MODDER, REPAIR, CUSTOM IDEAS.
Re: WORK LOG SOUND ACTIVATED FLAME XBOX 360 MOD.
« Reply #13 on: July 17, 2011, 12:26:00 PM »
It's a stereo led mod... it looks like he has sections attatched to left audio, and the other to the right. It's like in a PSP.. depending on the song, the leds dont always match up

EDIT: what rodent said ;)
Thanks nEoVaLoR for explaining that better then me..lol . What I like about this is it will do it durring game play, music or movies .

I need to make it so it also works thru the HDMI port. which I didnt think about when I was putting it together. cuz at the time I only had the  AV cables. when I get the time I will add that to my mod so that  no matter what cable you use it still will play whether its av or hdmi port hooked up.

 Tracey: I cant believe Rodent of all people made my damn day
3D0: snacks cartoons and naps  lol sounds like rodents typcial day :rofl:
Rodent consoles mods

Offline Anonamous

  • The Unknown Identity
  • Granny Spanker
  • *
  • Posts: 472
  • Post quality +14/-1
  • Gender: Male
  • Electrical Engineering Student
Re: WORK LOG SOUND ACTIVATED FLAME XBOX 360 MOD.
« Reply #14 on: July 18, 2011, 07:20:16 PM »
Thanks nEoVaLoR for explaining that better then me..lol . What I like about this is it will do it durring game play, music or movies .

I need to make it so it also works thru the HDMI port. which I didnt think about when I was putting it together. cuz at the time I only had the  AV cables. when I get the time I will add that to my mod so that  no matter what cable you use it still will play whether its av or hdmi port hooked up.

peel off the cover of your av cables and plug it in when you have the hdmi in. You will still get HDMI video and HDMI sound, but you will also get the Stereo sound  from what would be the red and white cables.

You could also just bridge the pins on that console, only problem with that is you may not be able to use any other av cables lol. If you want to do that bridge pins 24&22 and pins 20&18 (basically your just grounding pins 24 and 20 lol) that will make the xbox 360 think that you have the Xbox 360 HDMI Cable  "Optical/RCA Audio adapter" plugged in.

Oh and the Cable ID information is on this page here *NOTE the svideo id on this page is right, if you want to make an S-video cable, dont use the switches on the pictures in the first post, its shorting the wrong pins*
« Last Edit: July 18, 2011, 07:22:54 PM by Anonamous »

Offline Rodent

  • XBOX,XBOX360,PS3,WII
  • Moderator
  • Around the block
  • *
  • Posts: 2983
  • Post quality +75/-5
  • Gender: Male
  • MODDER, REPAIR, CUSTOM IDEAS.
Re: WORK LOG SOUND ACTIVATED FLAME XBOX 360 MOD.
« Reply #15 on: July 18, 2011, 07:23:45 PM »
thanks think it would be best just to plug the cable in and use the red and white audio with hdmi cable .

I was just happy it worked when I  was alll done in the begining ... and It worked when i fired it up did everything right just was my first case mod

thanks  Anonamous

 Tracey: I cant believe Rodent of all people made my damn day
3D0: snacks cartoons and naps  lol sounds like rodents typcial day :rofl:
Rodent consoles mods

Offline crashmasher

  • Registered BST
  • ♪♪♪ Tone deff ♪♪♪
  • *
  • Posts: 64
  • Post quality +4/-0
  • Gender: Male
  • Acidmods User
Re: WORK LOG SOUND ACTIVATED FLAME XBOX 360 MOD.
« Reply #16 on: July 19, 2011, 11:12:00 PM »
very sweet, i like the way the light are off of different beats and not all together it really adds to it.

Great job

Offline Rodent

  • XBOX,XBOX360,PS3,WII
  • Moderator
  • Around the block
  • *
  • Posts: 2983
  • Post quality +75/-5
  • Gender: Male
  • MODDER, REPAIR, CUSTOM IDEAS.
Re: WORK LOG SOUND ACTIVATED FLAME XBOX 360 MOD.
« Reply #17 on: July 20, 2011, 03:41:58 AM »
very sweet, i like the way the light are off of different beats and not all together it really adds to it.

Great job
Crashmasher thanks, took some thinking to do this mod, but was pretty well thought out for months a head of time. sometimes you might think of something when you go to make it and when your done you think well that  didnt come out  like expected but with this project I was very happy the way it came out.

thanks so much for your comment.
