Author Topic: can this be fixed  (Read 1976 times)

Offline snowcolt17

  • Moderator
  • Acid Modder
  • *
  • Posts: 552
  • Post quality +16/-1
  • Gender: Male
  • If all else fails, reflow it
can this be fixed
« on: July 15, 2011, 08:53:43 PM »
some idiot tried to i guess have sex with it

Logged

Offline crazy-modder

  • Research & Development
  • Acid Modder
  • *
  • Posts: 854
  • Post quality +34/-2
  • Gender: Male
Re: can this be fixed
« Reply #1 on: July 15, 2011, 08:55:16 PM »
Ive had that problem countless times. Just follow the trace all the way to a solder point "hole" and solder a piece of 30awg wire from the pin to the solder point
Logged

Offline snowcolt17

  • Moderator
  • Acid Modder
  • *
  • Posts: 552
  • Post quality +16/-1
  • Gender: Male
  • If all else fails, reflow it
Re: can this be fixed
« Reply #2 on: July 15, 2011, 08:57:18 PM »
ok thanks crazy
Logged

Offline Rodent

  • XBOX,XBOX360,PS3,WII
  • Moderator
  • Around the block
  • *
  • Posts: 2983
  • Post quality +75/-5
  • Gender: Male
  • MODDER, REPAIR, CUSTOM IDEAS.
Re: can this be fixed
« Reply #3 on: July 15, 2011, 08:57:40 PM »
LOL you just answered for me , lol was going to tell him the same thing....lol  :hifive:
Logged

 Tracey: I cant believe Rodent of all people made my damn day
3D0: snacks cartoons and naps  lol sounds like rodents typcial day :rofl:
Rodent consoles mods

Offline snowcolt17

  • Moderator
  • Acid Modder
  • *
  • Posts: 552
  • Post quality +16/-1
  • Gender: Male
  • If all else fails, reflow it
Re: can this be fixed
« Reply #4 on: July 15, 2011, 10:07:22 PM »
here are some pics after it is cleaned a little more

Logged

Offline Rodent

  • XBOX,XBOX360,PS3,WII
  • Moderator
  • Around the block
  • *
  • Posts: 2983
  • Post quality +75/-5
  • Gender: Male
  • MODDER, REPAIR, CUSTOM IDEAS.
Re: can this be fixed
« Reply #5 on: July 15, 2011, 10:20:20 PM »
what kind of board is it  ? so i can find you the traces
Logged

 Tracey: I cant believe Rodent of all people made my damn day
3D0: snacks cartoons and naps  lol sounds like rodents typcial day :rofl:
Rodent consoles mods

Offline snowcolt17

  • Moderator
  • Acid Modder
  • *
  • Posts: 552
  • Post quality +16/-1
  • Gender: Male
  • If all else fails, reflow it
Re: can this be fixed
« Reply #6 on: July 15, 2011, 10:28:57 PM »
its a cg

Logged

Offline Rodent

  • XBOX,XBOX360,PS3,WII
  • Moderator
  • Around the block
  • *
  • Posts: 2983
  • Post quality +75/-5
  • Gender: Male
  • MODDER, REPAIR, CUSTOM IDEAS.
Re: can this be fixed

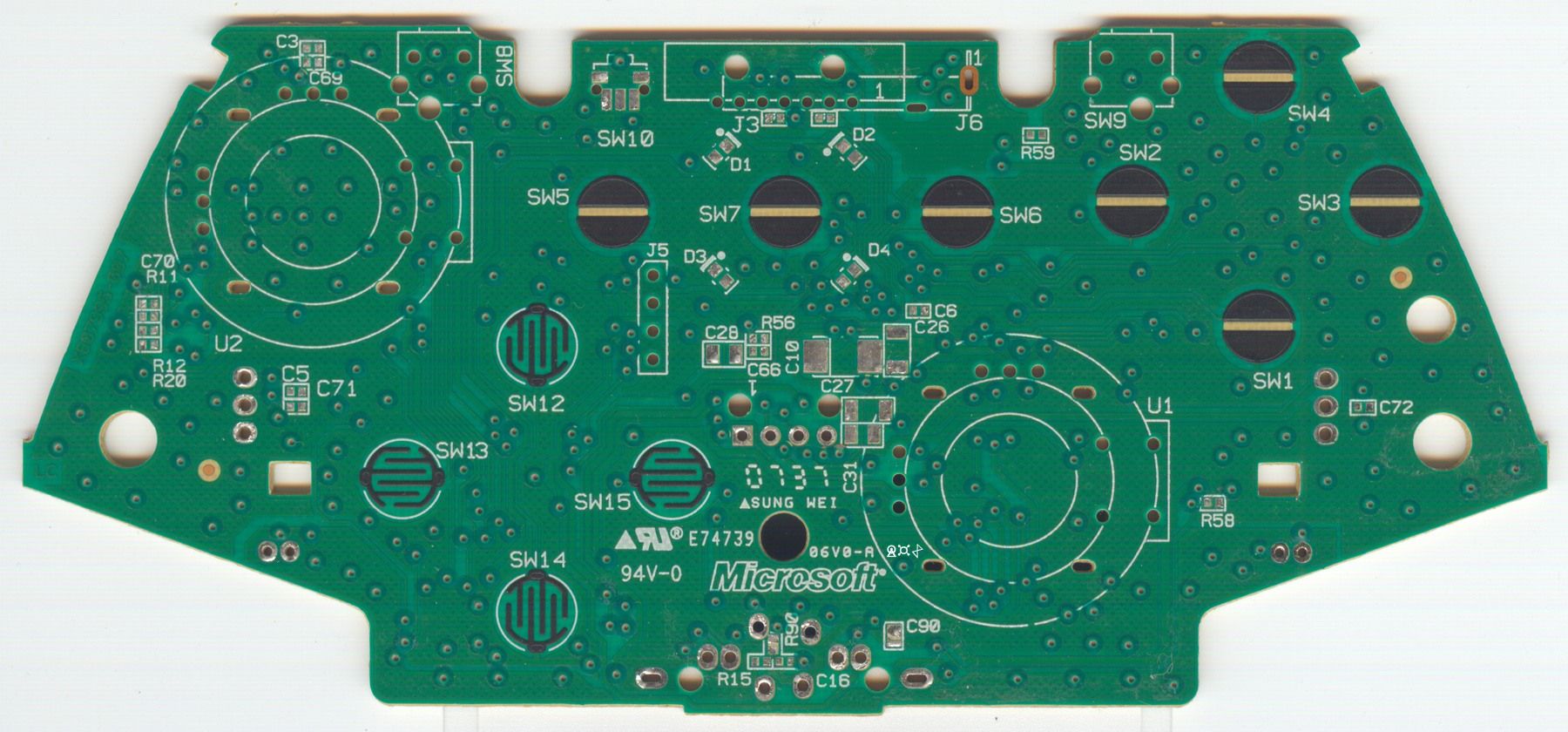

« Reply #7 on: July 15, 2011, 10:32:15 PM »
Logged

 Tracey: I cant believe Rodent of all people made my damn day
3D0: snacks cartoons and naps  lol sounds like rodents typcial day :rofl:
Rodent consoles mods

Offline 1TONpete

  • Millennium Poster
  • *
  • Posts: 1224
  • Post quality +47/-2
  • Sony specialist
Re: can this be fixed
« Reply #8 on: July 16, 2011, 05:12:56 AM »
The middle leg is the important one, the outer pins are vcc and ground. All you need to do is run a lead from the other stick or another ground or vcc point, as I don't remember which is which, but that info is onsite somewhere.
Logged

Offline snowcolt17

  • Moderator
  • Acid Modder
  • *
  • Posts: 552
  • Post quality +16/-1
  • Gender: Male
  • If all else fails, reflow it
Re: can this be fixed
« Reply #9 on: August 10, 2011, 06:42:35 PM »
i havent tried to do a repair yet on it. but when it is tight and not moving it doesnt shoot. pretty has something to do with the middle pin.. but when i mash start and go back it shoots?
Logged

Offline rafaliyo86

  • Acid Modder
  • *
  • Posts: 569
  • Post quality +12/-1
  • Gender: Male
  • Acidmods User
Re: can this be fixed
« Reply #10 on: August 10, 2011, 11:14:08 PM »
Quote from: 1TONpete on July 16, 2011, 05:12:56 AM
The middle leg is the important one, the outer pins are vcc and ground. All you need to do is run a lead from the other stick or another ground or vcc point, as I don't remember which is which, but that info is onsite somewhere.

yes, 1tonpete is right. I fixed two controller with this problem. The upper point is analog voltage (TP8) and the lower is ground (TP2 or TP22)

Hope this help
Logged

Offline snowcolt17

  • Moderator
  • Acid Modder
  • *
  • Posts: 552
  • Post quality +16/-1
  • Gender: Male
  • If all else fails, reflow it
Re: can this be fixed
« Reply #11 on: August 11, 2011, 09:25:56 AM »
thanks. i will try it to do.. just run it to the other side point on the left triggger? both or just ground?
Logged
