What is this thing on my mobo?
« on: November 29, 2012, 04:30:25 PM »
So opened my ndsl for the 1st time I found this white blob.

Thermal Paste? Never seen it on other peoples tear downs.


Logged

Offline Rodent

  • XBOX,XBOX360,PS3,WII
  • Acidmods Alumni
  • Around the block
  • *
  • Posts: 2983
  • Post quality +75/-5
  • Gender: Male
  • MODDER, REPAIR, CUSTOM IDEAS.
Re: What is this thing on my mobo?
« Reply #1 on: November 29, 2012, 04:50:28 PM »
its probably some type of insulator, so it doesn't touch any other metal i see that alot on stuff now days , so they dont short out against other components or interfere with other components  just a wild guess
Logged

 Tracey: I cant believe Rodent of all people made my damn day
3D0: snacks cartoons and naps  lol sounds like rodents typcial day :rofl:
Rodent consoles mods

Offline SweetIvy

  • ½ Pint
  • *
  • Posts: 31
  • Post quality +1/-0
  • Gender: Female
  • Model Kit Painter/Wii Soft Modder
Re: What is this thing on my mobo?
« Reply #2 on: November 29, 2012, 05:01:51 PM »
ahhh alright it was fused into a peg on my case.

A whole hour trying to pull my case open lol

Thanks rodent
Logged

Offline 3D0kassiah

  • Acid Modder
  • *
  • Posts: 809
  • Post quality +19/-2
  • Gender: Male
  • Acidmods User
Re: What is this thing on my mobo?
« Reply #3 on: November 29, 2012, 06:42:21 PM »
Wow never seen that before ive opened a crap load of ds lites etc even 3ds never seen that before
Honestly dont think its a thermal paste substance
Sure you didnt spill anything on it?
Ps make sure your careful when attaching the touch screen back on I ripped the black piece on the connector that holds the ribbon cable in place it was a nightmare to solder it on
« Last Edit: November 29, 2012, 06:49:50 PM by 3D0 »
Logged
Tracey: f off Rodent
rodent:i would of flew it to bill gates and shoved it up his a$$

Offline SweetIvy

  • ½ Pint
  • *
  • Posts: 31
  • Post quality +1/-0
  • Gender: Female
  • Model Kit Painter/Wii Soft Modder
Re: What is this thing on my mobo?
« Reply #4 on: November 29, 2012, 09:28:26 PM »
yeah bought it the day it came out maybe mine was rushed o.O

Speaking of that area see that screw near that blob, while taking it out it striped  -_-

How can i take it off now lol


I guess dremel it out? hmm...
« Last Edit: November 30, 2012, 04:12:51 AM by SweetIvy »
Logged

Offline Modded Matt

  • Site Owner
  • Administrator
  • Around the block
  • *
  • Posts: 4649
  • Post quality +65/-3
  • Gender: Male
Re: What is this thing on my mobo?
« Reply #5 on: November 30, 2012, 05:27:24 AM »
If you try to remove it, you will probably do more harm than good.  I suggest leaving it where it is.
Logged

Offline SweetIvy

  • ½ Pint
  • *
  • Posts: 31
  • Post quality +1/-0
  • Gender: Female
  • Model Kit Painter/Wii Soft Modder
Re: What is this thing on my mobo?
« Reply #6 on: November 30, 2012, 12:57:12 PM »
Jesus screen just flashes white and turns off. Can't reach the monitor connector from this point.



Oh well lol
Logged

Offline 3D0kassiah

  • Acid Modder
  • *
  • Posts: 809
  • Post quality +19/-2
  • Gender: Male
  • Acidmods User
Re: What is this thing on my mobo?
« Reply #7 on: November 30, 2012, 01:47:03 PM »
what screen? white screen flashing on and off means it has a dead screen like most consoles itll run a mini check to make sure all the hardware is good if the screen is bad itll turn on and off had a few of these repairs simple swap out the screen good thing is there cheap off ebay
Logged
Tracey: f off Rodent
rodent:i would of flew it to bill gates and shoved it up his a$$

Offline SweetIvy

  • ½ Pint
  • *
  • Posts: 31
  • Post quality +1/-0
  • Gender: Female
  • Model Kit Painter/Wii Soft Modder
Re: What is this thing on my mobo?
« Reply #8 on: November 30, 2012, 02:33:46 PM »
ahh guess upper screen is broken, then. But The Screw on the mobo is soo stripped.

I couldnt get it off even if I wanted to now, haha.

I guess this is just a hard lesson to learn. :/
« Last Edit: November 30, 2012, 02:34:32 PM by SweetIvy »
Logged

Offline 3D0kassiah

  • Acid Modder
  • *
  • Posts: 809
  • Post quality +19/-2
  • Gender: Male
  • Acidmods User
Re: What is this thing on my mobo?
« Reply #9 on: November 30, 2012, 02:47:44 PM »
u can get that sucker off get your self a drill bit around the same size as the screw and drill that sucker out just becareful not to move it and hit the mobo lol i did it on my iphone s came out fine
Logged
Tracey: f off Rodent
rodent:i would of flew it to bill gates and shoved it up his a$$

Offline FOOKz™

  • Hardware Modder
  • Research & Development
  • E = MC² Mad Scientist
  • *
  • Posts: 2070
  • Post quality +37/-2
  • Electronics Expert Electrical Engineer
Re: What is this thing on my mobo?
« Reply #10 on: November 30, 2012, 10:00:34 PM »
Matt is right: don't try to get it off. 3D0, you just got lucky i guess lol

I think that is just some kind of epoxy to keep people from bridging connections on the circuit board or trying to probe into the electronics.

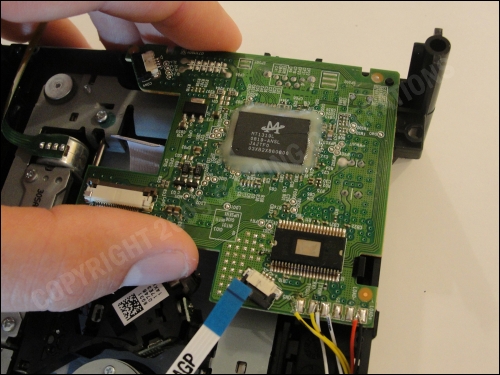

You see this stuff all the time on CD drive motherboards:

Logged

Follow my Instagram and subscribe to my YouTube

Offline Rodent

  • XBOX,XBOX360,PS3,WII
  • Acidmods Alumni
  • Around the block
  • *
  • Posts: 2983
  • Post quality +75/-5
  • Gender: Male
  • MODDER, REPAIR, CUSTOM IDEAS.
Re: What is this thing on my mobo?
« Reply #11 on: November 30, 2012, 10:09:29 PM »
Quote from: FOOKz™ on November 30, 2012, 10:00:34 PM
Matt is right: don't try to get it off. 3D0, you just got lucky i guess lol

I think that is just some kind of epoxy to keep people from bridging connections on the circuit board or trying to probe into the electronics.

You see this stuff all the time on CD drive motherboards:



i guess you missed what i said the first reply...lol
Logged

 Tracey: I cant believe Rodent of all people made my damn day
3D0: snacks cartoons and naps  lol sounds like rodents typcial day :rofl:
Rodent consoles mods

Offline 3D0kassiah

  • Acid Modder
  • *
  • Posts: 809
  • Post quality +19/-2
  • Gender: Male
  • Acidmods User
Re: What is this thing on my mobo?
« Reply #12 on: December 01, 2012, 06:44:33 AM »
or maybe its the inside of an oreo  :rofl:
jk
Logged
Tracey: f off Rodent
rodent:i would of flew it to bill gates and shoved it up his a$$

Offline SweetIvy

  • ½ Pint
  • *
  • Posts: 31
  • Post quality +1/-0
  • Gender: Female
  • Model Kit Painter/Wii Soft Modder
Re: What is this thing on my mobo?
« Reply #13 on: December 01, 2012, 12:24:34 PM »
yeah the epoxy was sooo huge I couldn't put the new back case on.

I guess sometime I should get a dsi xl when I get the money. >_<
