Author Topic: JDM-055 not working, not charging anymore only work with usb cable  (Read 11056 times)

Offline babayfd

  • Guppy
  • *
  • Posts: 3
  • Post quality +0/-0
  • Gender: Male
  • Acidmods User
i used a cell phone fast charger, so thats the problem right there.
Now is there something it can be done? a resistor or fuse? or I leave it for parts.

Offline RDC

  • Administrator
  • Around the block
  • *
  • Posts: 2609
  • Post quality +90/-2
  • Gender: Male
  • The CGnome Project
Re: JDM-055 not working, not charging anymore only work with usb cable
« Reply #1 on: November 19, 2019, 08:04:17 AM »
If it killed only the charging ability, but the USB data lines and powering it from the USB cable are still intact, that seems odd, as all of the power regulation and charging is handed by a single chip in there.

There is a fuse on the small JDS board, the USB/LED board, but if it were bad you couldn't power it from the USB cable as that would kill the 5v to the controller completely.

Which fast charger exactly? Some of those are still 5v and that shouldn't have done anything to it. The 9v ones might not cause any issues, but since you can't find any datasheets on the chips Sony uses in these things it's only guesswork as to what can actually take or does what in there. Some of those faster chargers I could see them causing issues for sure as they can be 20v and I doubt the DS4 was designed with them in mind.
Screwing up is one of the best learning tools, so long as the only thing you're not learning is how to screw up.

Offline babayfd

  • Guppy
  • *
  • Posts: 3
  • Post quality +0/-0
  • Gender: Male
  • Acidmods User
Re: JDM-055 not working, not charging anymore only work with usb cable
« Reply #2 on: November 19, 2019, 03:14:40 PM »
Thanks RDC but i changed small board and same problem i know some thing wrong in mainboard  but i don't know it

Offline VaNDAL_UK

  • ½ Pint
  • *
  • Posts: 30
  • Post quality +0/-0
  • Gender: Male
  • Acidmods User
    • UBER MICRO REPAIRS
Re: JDM-055 not working, not charging anymore only work with usb cable
« Reply #3 on: February 06, 2020, 05:27:57 AM »
Plug in the controller and put a drop of alcohol on IC s2pg001a see if it evaporates quickly?

Currently having this with several JDM-055's

Offline RDC

  • Administrator
  • Around the block
  • *
  • Posts: 2609
  • Post quality +90/-2
  • Gender: Male
  • The CGnome Project
Re: JDM-055 not working, not charging anymore only work with usb cable
« Reply #4 on: February 06, 2020, 06:12:46 AM »

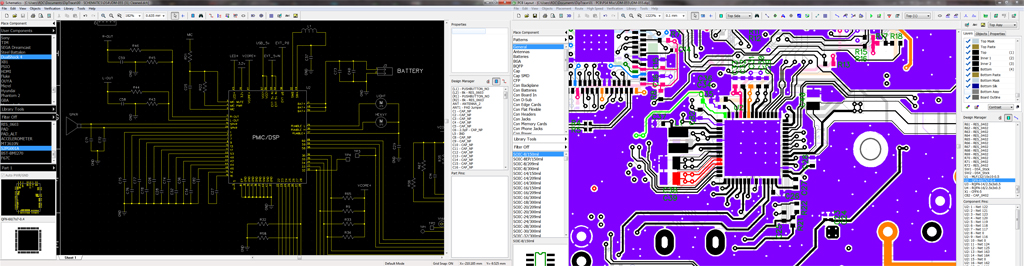

That chip is quite the mess, seems to be handing all the PMIC and Audio functions of the controller.

Screwing up is one of the best learning tools, so long as the only thing you're not learning is how to screw up.

Offline jose-r80

  • Guppy
  • *
  • Posts: 1
  • Post quality +0/-0
  • Gender: Male
  • Acidmods User
Re: JDM-055 not working, not charging anymore only work with usb cable
« Reply #5 on: May 23, 2020, 12:58:34 PM »
That chip is quite the mess, seems to be handing all the PMIC and Audio functions of the controller.




hello, where did you get the scheme? can you pass it ?.

Offline RDC

  • Administrator
  • Around the block
  • *
  • Posts: 2609
  • Post quality +90/-2
  • Gender: Male
  • The CGnome Project
Re: JDM-055 not working, not charging anymore only work with usb cable
« Reply #6 on: May 23, 2020, 01:21:41 PM »
I made it from a JDM-055 board (1-982-707-31) that I stripped down. It is not a complete schematic, it is missing most of the passive component values and would be pretty useless without images of the way I designated the components on the board. When/If I finish it, or just get sick of working on it, then I may post it.
Screwing up is one of the best learning tools, so long as the only thing you're not learning is how to screw up.

Offline NEOCRIVI

  • Guppy
  • *
  • Posts: 3
  • Post quality +0/-0
  • Gender: Male
  • Acidmods User
Re: JDM-055 not working, not charging anymore only work with usb cable
« Reply #7 on: September 12, 2020, 01:09:41 PM »
I made it from a JDM-055 board (1-982-707-31) that I stripped down. It is not a complete schematic, it is missing most of the passive component values and would be pretty useless without images of the way I designated the components on the board. When/If I finish it, or just get sick of working on it, then I may post it.

You need any measure in working 055 controller?

BR




Offline RDC

  • Administrator
  • Around the block
  • *
  • Posts: 2609
  • Post quality +90/-2
  • Gender: Male
  • The CGnome Project
Re: JDM-055 not working, not charging anymore only work with usb cable
« Reply #8 on: September 12, 2020, 01:59:53 PM »
Measuring the component values with them on the board will not be accurate.

If you have any components removed from a working board and measured, you can add them to this thread and I'll check them and update the schematic when I get the time. https://www.acidmods.com/forum/index.php/topic,44645.0.html
Screwing up is one of the best learning tools, so long as the only thing you're not learning is how to screw up.

Offline NEOCRIVI

  • Guppy
  • *
  • Posts: 3
  • Post quality +0/-0
  • Gender: Male
  • Acidmods User
Re: JDM-055 not working, not charging anymore only work with usb cable
« Reply #9 on: September 14, 2020, 01:16:22 PM »
Wow, nice and hard work!  :clap:

I read many point measures for search shorts,

Thanks for share and best regards!
