PS4 1216A SAC 001 Missing capacitors in HDMI area
« on: December 04, 2020, 05:38:02 AM »

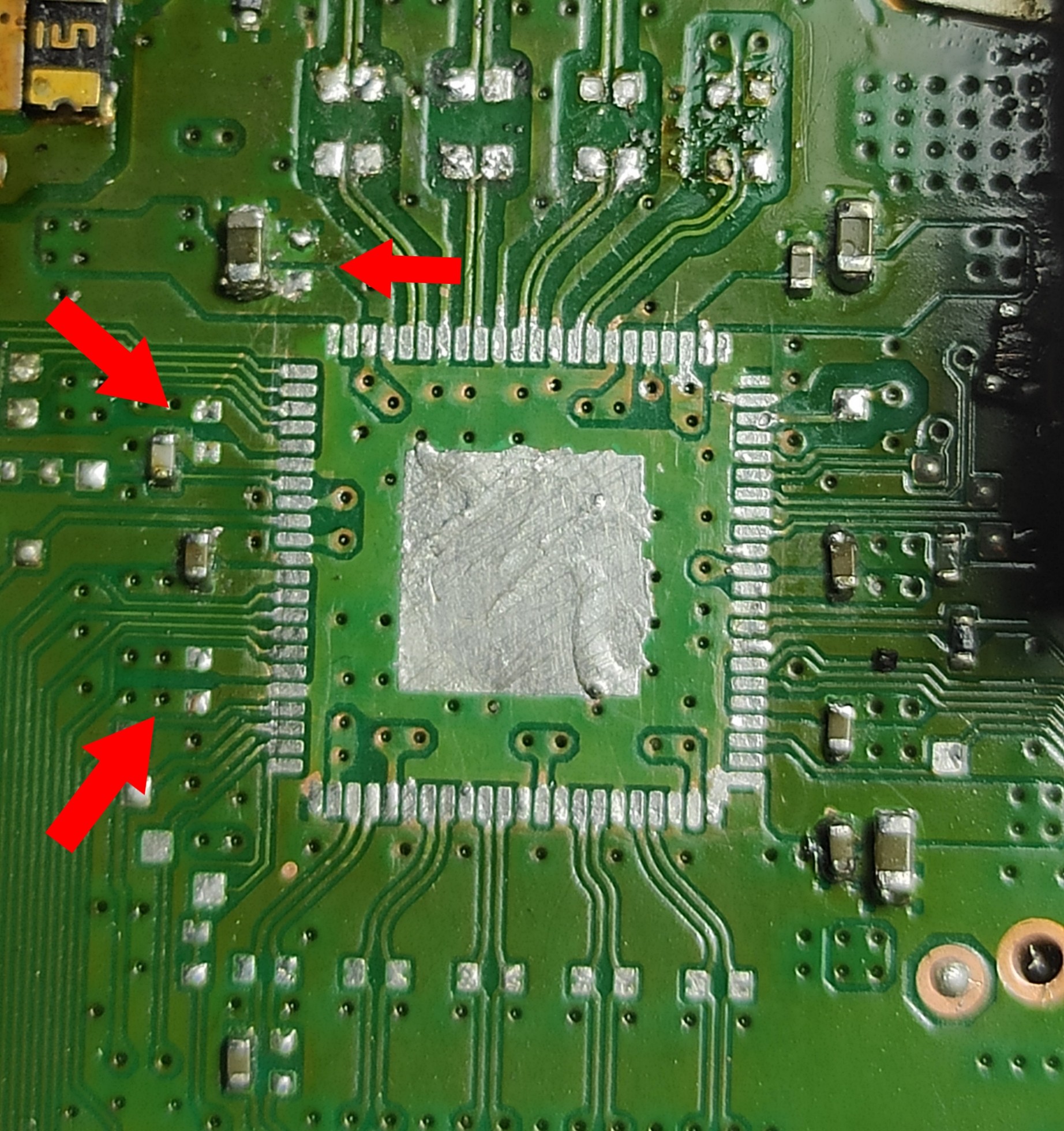

Missing 3 capacitors in the HDMI IC area. PS4 model 1216a SAC-001

Anybody know the values?

I have a first series PS4 from where I can hypothetically get the replacement capacitors.

Thanks


Logged

Offline RDC

  • Administrator
  • Around the block
  • *
  • Posts: 2611
  • Post quality +90/-2
  • Gender: Male
  • The CGnome Project
Re: PS4 1216A SAC 001 Missing capacitors in HDMI area
« Reply #1 on: December 04, 2020, 12:02:11 PM »
They are just for decoupling, so their exact values aren't really critical. Something like 16v and anything from 1uF to 10uF would work fine there.
Logged
Screwing up is one of the best learning tools, so long as the only thing you're not learning is how to screw up.

Offline jayg

  • Chief squatting Hard
  • *
  • Posts: 14
  • Post quality +0/-0
  • Acidmods User
Re: PS4 1216A SAC 001 Missing capacitors in HDMI area
« Reply #2 on: December 07, 2020, 06:20:55 AM »
Thanks for the reply. I'm trying to find the 1uf / 10uf caps from the other CUH 1100 SAB 001 board, but until now I've only found some 100nf caps from the HDMI IC area. I continue to search or the 100nf caps will still be ok?
Logged

Offline wickated

  • King of the Wii-tards
  • *
  • Posts: 176
  • Post quality +0/-1
  • Acidmods User
Re: PS4 1216A SAC 001 Missing capacitors in HDMI area
« Reply #3 on: December 07, 2020, 08:57:38 AM »
ok
Logged

Offline RDC

  • Administrator
  • Around the block
  • *
  • Posts: 2611
  • Post quality +90/-2
  • Gender: Male
  • The CGnome Project
Re: PS4 1216A SAC 001 Missing capacitors in HDMI area
« Reply #4 on: December 07, 2020, 10:37:07 AM »
1nF to 10uF, anything will be fine in there really as they are just decoupling, that is filtering on some DC voltage rail.
Logged
Screwing up is one of the best learning tools, so long as the only thing you're not learning is how to screw up.
