Author Topic: Need Help Identifying Components for DualShock 4 and JDM-011  (Read 1110 times)

Offline Wensday

  • Guppy
  • *
  • Posts: 5
  • Post quality +0/-0
  • Gender: Male
  • Acidmods User
Need Help Identifying Components for DualShock 4 and JDM-011
« on: January 25, 2023, 06:57:47 AM »
Hi all, I need help in identifying the component and the value of this component.https://imgur.com/a/iIyUk4n
« Last Edit: January 25, 2023, 07:29:19 AM by Wensday »
Logged

Offline Wensday

  • Guppy
  • *
  • Posts: 5
  • Post quality +0/-0
  • Gender: Male
  • Acidmods User
Re: Need Help Identifying Components for DualSense and JDM-011
« Reply #1 on: January 25, 2023, 07:03:07 AM »

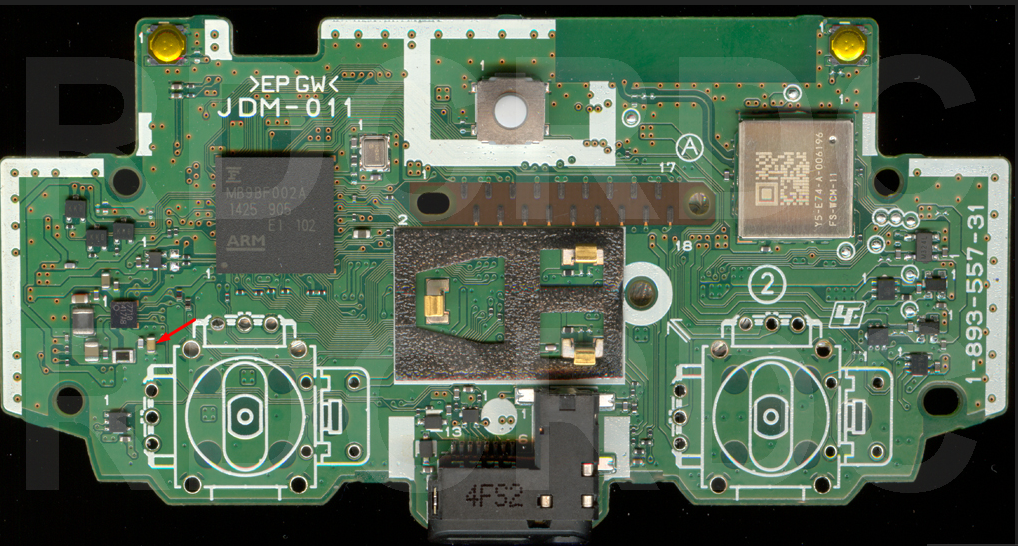

if the tumblr link doesn't work here's the image.
« Last Edit: January 25, 2023, 07:11:22 AM by Wensday »
Logged

Offline RDC

  • Administrator
  • Around the block
  • *
  • Posts: 2609
  • Post quality +90/-2
  • Gender: Male
  • The CGnome Project
Re: Need Help Identifying Components for DualShock 4 and JDM-011
« Reply #2 on: January 25, 2023, 08:29:18 AM »
It's a Capacitor, 10uF
Logged
Screwing up is one of the best learning tools, so long as the only thing you're not learning is how to screw up.

Offline Wensday

  • Guppy
  • *
  • Posts: 5
  • Post quality +0/-0
  • Gender: Male
  • Acidmods User
Re: Need Help Identifying Components for DualShock 4 and JDM-011
« Reply #3 on: January 25, 2023, 08:31:45 AM »
thanks for replying.
any other specifications for the component??

« Last Edit: January 25, 2023, 08:37:17 AM by Wensday »
Logged

Offline RDC

  • Administrator
  • Around the block
  • *
  • Posts: 2609
  • Post quality +90/-2
  • Gender: Male
  • The CGnome Project
Re: Need Help Identifying Components for DualShock 4 and JDM-011
« Reply #4 on: January 25, 2023, 03:24:31 PM »
You'll have to ask Sony if you want real component details. The only other real thing that's easily measurable is it's size, 0603. The ESR, and other technical things would all be guesses. The voltage rating is also a guess, but just needs to be higher than what's floating around in there most places, which is only around 5v, so having it rated 25v or higher there is the safer bet.
Logged
Screwing up is one of the best learning tools, so long as the only thing you're not learning is how to screw up.

Offline Wensday

  • Guppy
  • *
  • Posts: 5
  • Post quality +0/-0
  • Gender: Male
  • Acidmods User
Re: Need Help Identifying Components for DualShock 4 and JDM-011
« Reply #5 on: January 25, 2023, 11:14:01 PM »
thanks for the help dude.
Logged

Offline Wensday

  • Guppy
  • *
  • Posts: 5
  • Post quality +0/-0
  • Gender: Male
  • Acidmods User
Re: Need Help Identifying Components for DualShock 4 and JDM-011
« Reply #6 on: January 26, 2023, 10:21:17 AM »

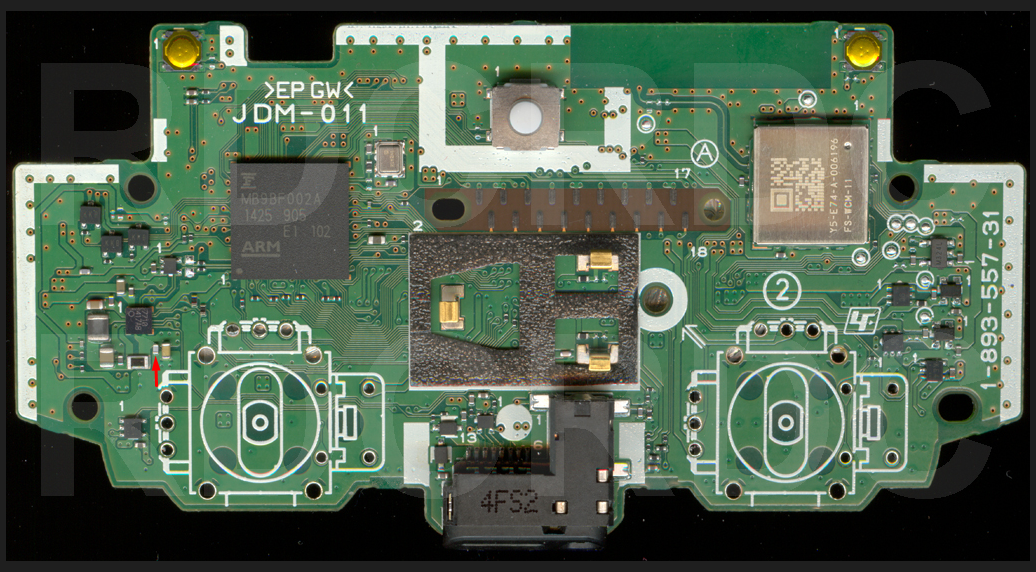

What is the value and name of this component thanks in advance for replying.
Logged

Offline RDC

  • Administrator
  • Around the block
  • *
  • Posts: 2609
  • Post quality +90/-2
  • Gender: Male
  • The CGnome Project
Re: Need Help Identifying Components for DualShock 4 and JDM-011
« Reply #7 on: January 26, 2023, 05:16:45 PM »
Cap, 10pF, 0402

Do not cross post the same question in multiple places on the forum.
« Last Edit: January 26, 2023, 05:25:30 PM by RDC »
Logged
Screwing up is one of the best learning tools, so long as the only thing you're not learning is how to screw up.
