Author Topic: JDM 040 request for resistors identification  (Read 449 times)

Offline And00

  • Guppy
  • *
  • Posts: 3
  • Post quality +0/-0
  • Acidmods User
JDM 040 request for resistors identification
« on: June 26, 2023, 06:49:38 AM »


Does anyone know the value of these resistors? they are right above the left stick.
I've accidentally desoldered and lost a few of them and can't find the values since this is the only jdm 040 i have.
Logged

Offline RDC

  • Administrator
  • Around the block
  • *
  • Posts: 2609
  • Post quality +90/-2
  • Gender: Male
  • The CGnome Project
Re: JDM 040 request for resistors identification
« Reply #1 on: June 26, 2023, 12:37:12 PM »

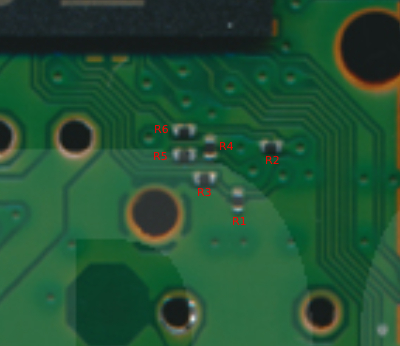

R1 - 100k
R2 - 100k
R3 - 100
R4 - 100k
R5 - 100
R6 - 100
Logged
Screwing up is one of the best learning tools, so long as the only thing you're not learning is how to screw up.

Offline And00

  • Guppy
  • *
  • Posts: 3
  • Post quality +0/-0
  • Acidmods User
Re: JDM 040 request for resistors identification
« Reply #2 on: June 27, 2023, 12:29:02 AM »
Thanks a lot man. Appreciate it👍
