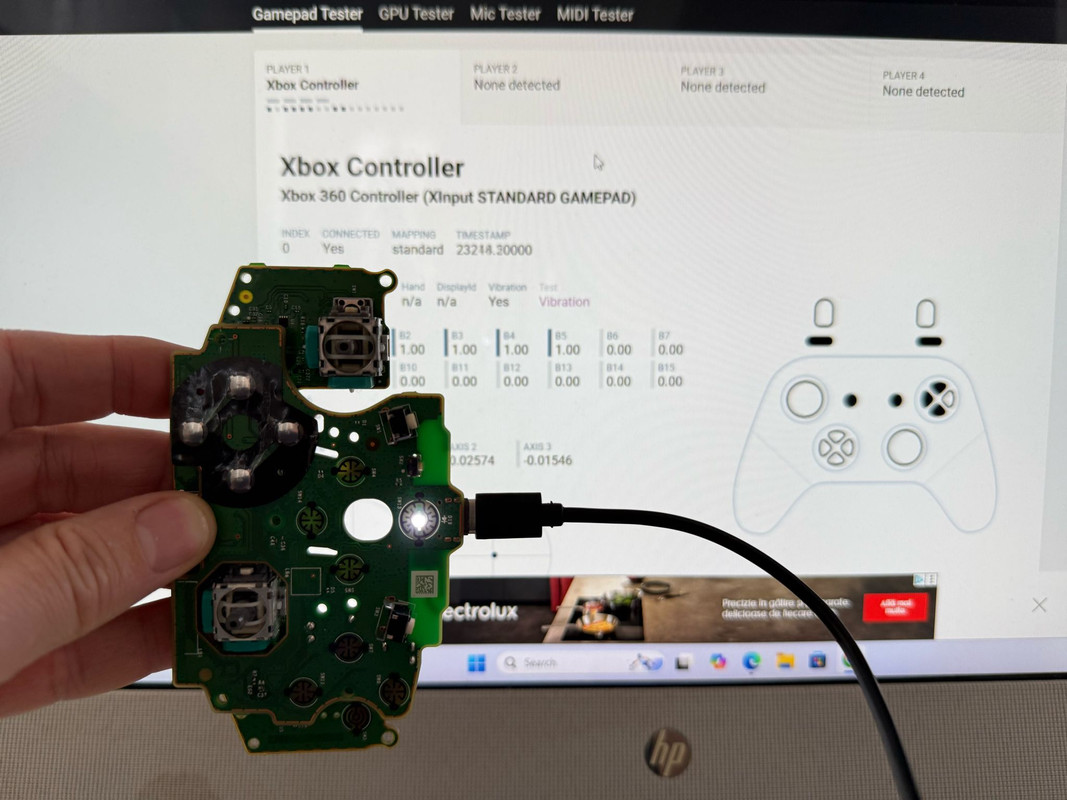

Xbox One controllers/Xbox One Rapid fire Controllers / Re: XBOX Series Controller 1914 - Microsoft calibration tool breaks controller ?

« Last post by zeromant on July 21, 2024, 06:48:10 PM »

Hello, i was to ask the same thing, i replaced the Y axis pot of my right stick, i've tested my controler and then after i calibrated my controller, it shows the same issue as you showed in your video. i even replaced the pot again and the issue persists.

52

PS4 / Re: JDM-055 no Headset output

« Last post by Ivanlakersss2016 on July 18, 2024, 12:42:38 PM »

Uppp!!! I'm interested, I have the same problem, I changed the new minijack connector and it's still the same, can someone help with the jdm-055 model?

53

Xbox One / Re: Rumble not working

« Last post by RDC on June 22, 2024, 08:11:46 AM »

Schematic for the 1914 is here - https://acidmods.com/forum/index.php/topic,44711.0.html


A crash or disconnect in the middle of an update could cause any number of issues, or none at all depending on where it was in the process.


On the top board, check U6p4 for 3.6v output, as that thing provides power for the Rumble motors. But it also provides power for the LED, so if it's working then the 3.6v is probably there.

If it is not there, suspect U6, it's support components or a short on the bottom board on that 3.6v rail. You'd also have no Guide button LED if this is bad.

If it is there, then find an XBOX to toggle the Rumble off/on and/or run update again from it. I'd doubt that all of the control lines to both motor driver chips would be wrecked, but I've seen worse things.

54

PS4 Controllers/PS4 Rapid Fire Controllers / Re: DualSense 5 Controller PCB Scans

« Last post by Portu40 on June 22, 2024, 03:07:19 AM »

good morning. I have a BDM 030 board. It works and charges normally when the battery has some charge. The problem comes when the battery is completely discharged. I connect it via USB and it doesn't do anything at all.
I tried different batteries and it does the same

55

Xbox One / Rumble not working

« Last post by InternetC on June 20, 2024, 04:03:03 PM »

Hello, I'm repairing a series S/X controller (model 1914), and during my final tests the rumbles aren't working. Unfortunately I'm not sure if they were working prior or not. I've tested each rumble and they all work with 3.3v. Also, tried a different MCU and that didn't didn't work, so it seems to be something with the power board I would guess? Where else can I look/test?

In the accessories app, vibration is turned to on. I'm wondering if it's possible that the controller was previously turned to "off" on the xbox, and that is causing the issues? Unfortunately I don't have an xbox to test this.

Also to note, I was performing an update on my controller and the computer crashed. I loaded it back up and finished the update. Wondering if that f'd things up. Everything else on the controller works as they should though.

56

PS4 Controllers/PS4 Rapid Fire Controllers / Re: DualSense 5 Controller PCB Scans

« Last post by Kraaz on June 06, 2024, 12:28:08 AM »

@ Kraaz - Top side of the board, remove the marked capacitor and retest.

Thank you for your response, but unfortunately, it didn't work; it remains the same. Sad

57

PS4 Controllers/PS4 Rapid Fire Controllers / JDM-040

« Last post by future.centre on June 01, 2024, 11:16:21 PM »

Hello
I have JDM-040 and the charging voltage Under 4.0V and not stable voltage
who can help me?

58

PS4 Controllers/PS4 Rapid Fire Controllers / Re: DualSense 5 Controller PCB Scans

« Last post by RDC on May 26, 2024, 07:05:22 AM »

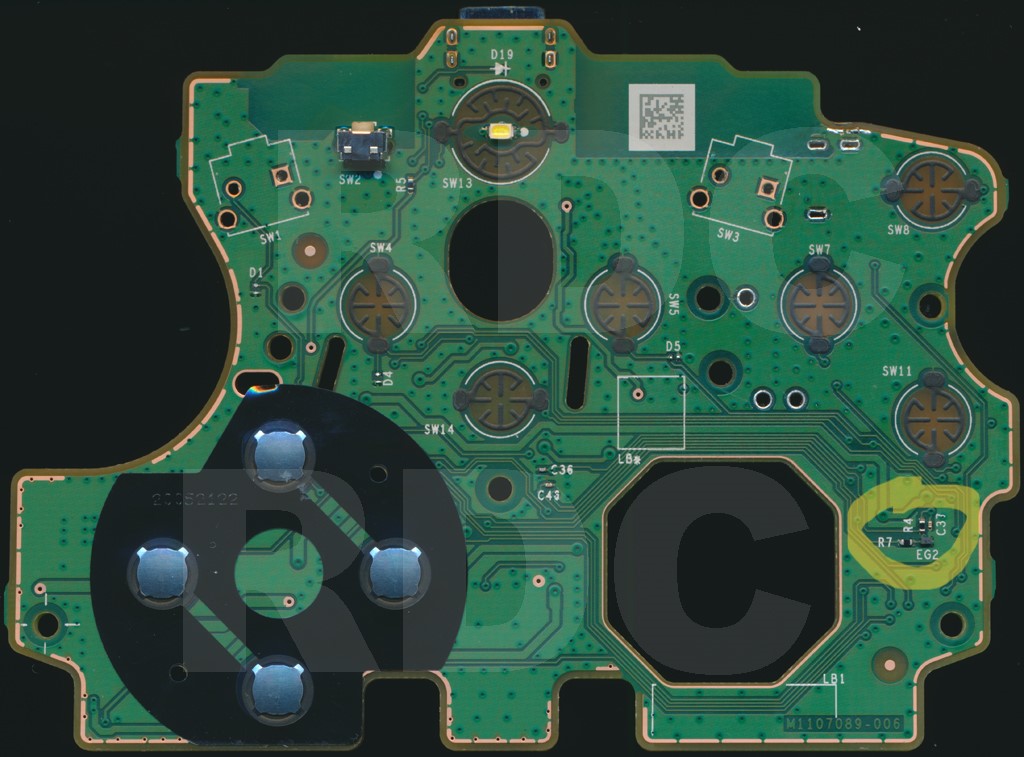

@ Kraaz - Top side of the board, remove the marked capacitor and retest.

59

PS4 Controllers/PS4 Rapid Fire Controllers / Re: DualSense 5 Controller PCB Scans

« Last post by LethalPrime on May 26, 2024, 05:38:16 AM »

The problem is not the flex cable; even on the bare motherboard, it stays pressed.

It is shorted somewhere. You?ll have to find where the short is and fix it.

60

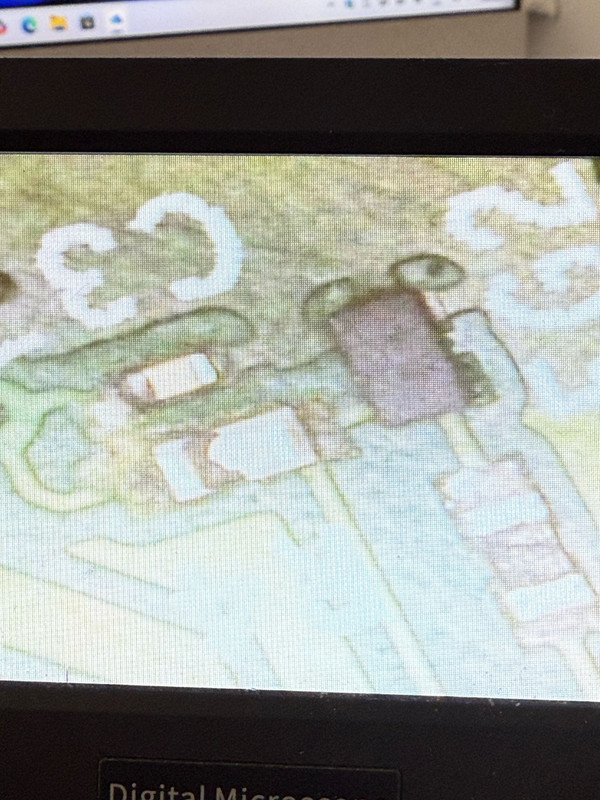

Xbox One controllers/Xbox One Rapid fire Controllers / Re: XBX/XBS Controller PCB Scans, Traces and Info - 1914

« Last post by ZhenyaKa on May 23, 2024, 03:00:15 PM »

Very strange RSY behavior.

When potentiometer soldered I have about 1V at middle pin, but gamepad test shows me min position of RY.

When I move stick and got about 1.7V at middle pin tester show middle position of RY

At max pos of RY I got 1.8V and max position in tester.

Movement in range 1.65-1.8V only. At other range - min position.

13 pin at 1914 SOC BOARD board have the same voltage and resistanse about 0.1Ohm between middle pin of RY.

By sheme this point goes directly to ARM chip.

Is it ARM damaged by this line? Or bad contact and maybe rebolling will help?
