Author Topic: AcidMods SpitFire 360 Controller Tutorial (Read 230090 times)

sniper07 · « **Reply #90 on:** May 28, 2008, 04:32:29 PM »

Thanks for the points man. Really appreciate it. ;D

l0rdnic0 · « **Reply #91 on:** May 30, 2008, 12:04:05 PM »

Quote from: kingmike_os on April 30, 2008, 11:21:40 AM

Here some more Picture

Hahah remind me not to make fun or your Spaghetti!

Want some sauce? Just kidding. Its to bad I don't have my camera here at work today because I have my controller with me I could take it apart now, I guess I'll post pictures of mine tonight I actually don't know why I never did before!!

EJohnso647 · « **Reply #92 on:** June 03, 2008, 10:28:23 AM »

I am getting the parts and the balls to attempt this mod with a few friends. Does the 16F84A come precoded from the linked site?

SYSTEM aka (Cyberpyrot) · « **Reply #93 on:** June 03, 2008, 03:48:21 PM »

Quote from: EJohnso647 on June 03, 2008, 10:28:23 AM

I am getting the parts and the balls to attempt this mod with a few friends. Does the 16F84A come precoded from the linked site?

you can get it pre-flashed here http://wiredinput.com/ShopUSA/

Serb · « **Reply #94 on:** June 04, 2008, 06:10:40 PM »

that website you posted charges you 30 dollars to ship a .1lb package to canada for one of those preprogrammed chips... are they crazy? i tried to order and it wont let me pick anything other then 29.95 shipping
????

SYSTEM aka (Cyberpyrot) · « **Reply #95 on:** June 04, 2008, 06:31:21 PM »

Quote from: Serb on June 04, 2008, 06:10:40 PM

that website you posted charges you 30 dollars to ship a .1lb package to canada for one of those preprogrammed chips... are they crazy? i tried to order and it wont let me pick anything other then 29.95 shipping
????

Sorry I will get it fixed also contact them personaly to bypass the web till we get it fixed..

KingMike_OS · « **Reply #96 on:** June 04, 2008, 09:56:42 PM »

Yeah for outside USA contact me kingmike@wiredinput.com

the shipping is about $2.00 just email me and i fix it for you

Here your options for canada

Priority Mail® International Flat-Rate Envelope 6 - 10 Days $9.95
First-Class Mail® International Letters Varies $1.92

EJohnso647 · « **Reply #97 on:** June 05, 2008, 06:06:05 AM »

Quote from: Cyberpyrot on June 03, 2008, 03:48:21 PM

you can get it pre-flashed here http://wiredinput.com/ShopUSA/

Thanks for the site. I/we appreciate it.

|dw| · « **Reply #98 on:** June 06, 2008, 10:15:13 AM »

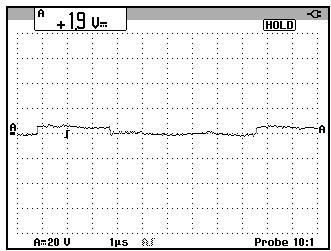

Im trying to get my controller to respond as fast as the one in the video but im not having any luck. Im using CCS compiler and I think that might be my problem using predefined commands. Please connect one of the output pin and post the output

Ignore the 1.9V thats just the transition if i zoom in further i see the hi to low

LUDATIC81 · « **Reply #99 on:** June 07, 2008, 02:38:54 AM »

whats the best vdd and gnd points to use for this mod. thanks for the help

Nemesis · « **Reply #100 on:** June 07, 2008, 07:04:05 AM »

will a tut for sixaxis or dualshock 3 be made? i so wanna attempt this but i have a sixaxis, which modding it would be so much easier than 360 controller as it has huge amounts of space seeing as there is no rumble of course

KingMike_OS · « **Reply #101 on:** June 07, 2008, 08:34:07 AM »

Quote

whats the best vdd and gnd points to use for this mod. thanks for the help

I hope this help

KingMike_OS · « **Reply #102 on:** June 07, 2008, 08:55:29 AM »

Quote

will a tut for sixaxis or dualshock 3 be made? i so wanna attempt this but i have a sixaxis, which modding it would be so much easier than 360 controller as it has huge amounts of space seeing as there is no rumble of course

I'm working on a PS3 controller Black not a dualshock 3 . I have a Japanese Playstation 3 System (Ceramic White) Which i'm not about to open my only Dualshok 3 just to make a Tut.

any way once i get my PS3 controller done i post pictures and you can use it as a example to do yours

your next option is Hori Pad 3 Turbo White $30.00

Quote :
The official SixAxis controllers are priced at about US$50 in Japan and the USA. Still costly. To give gamers a price break, Hori releases a standard PS3 controller which sports the same design sensibilities as the Dual Shock with a turbo-fire enhancement that may prove invaluable to certain gamers.
The cord that's attached to the Hori Pad 3 Turbo measures 3m and the turbo-fire can be toggled for all buttons on the pad with three gradations of speed - 5, 12, or 20 shots per second.
end Quote

You can order it here : http://www.ncsxshop.com/cgi-bin/shop/HP3-34.html

your 3rd option you can send me your an i build it

j/k i know you want to build it your self its more fun that way

Nemesis · « **Reply #103 on:** June 07, 2008, 12:04:34 PM »

Quote from: KingMike_OS on June 07, 2008, 08:55:29 AM

I'm working on a PS3 controller Black not a dualshock 3 . I have a Japanese Playstation 3 System (Ceramic White) Which i'm not about to open my only Dualshok 3 just to make a Tut.

any way once i get my PS3 controller done i post pictures and you can use it as a example to do yours

your next option is Hori Pad 3 Turbo White $30.00

Quote :
The official SixAxis controllers are priced at about US$50 in Japan and the USA. Still costly. To give gamers a price break, Hori releases a standard PS3 controller which sports the same design sensibilities as the Dual Shock with a turbo-fire enhancement that may prove invaluable to certain gamers.
The cord that's attached to the Hori Pad 3 Turbo measures 3m and the turbo-fire can be toggled for all buttons on the pad with three gradations of speed - 5, 12, or 20 shots per second.
end Quote

You can order it here : http://www.ncsxshop.com/cgi-bin/shop/HP3-34.html

your 3rd option you can send me your an i build it j/k i know you want to build it your self its more fun that way

well i was looking for a tut for the sixaxis seeing as i dont own a dualshock 3, so awesome, and thanks!

Spartan13xxx · « **Reply #104 on:** June 19, 2008, 10:01:27 AM »

hey can you give me a good step by step guide to do this mod and the cods for halo 3 thank

Tri-edge · « **Reply #105 on:** June 22, 2008, 09:12:33 PM »

Quote from: Spartan13xxx on June 19, 2008, 10:01:27 AM

hey can you give me a good step by step guide to do this mod and the cods for halo 3 thank

did you actually look for it at all? it's on the FIRST page! how can anyone miss that?!

tanil27 · « **Reply #106 on:** June 24, 2008, 11:21:25 PM »

Yo, amazin mod. cant wait to test on my mates. But, im not to sure... do you have to remove the rumble things that vibrate the controller coz if u do is it not possible to not remove it. ???

KingMike_OS · « **Reply #107 on:** June 25, 2008, 10:49:37 PM »

you can do it with the rumble but it just harder to get everything sit nice

i did it with just one rumble and still came out fine so i use the space for one rumble only

also i'm doing this mod with the new hiveboard with is coming out soon which it make it lot more

nicer and faster to do and can have both rumble i will have picture soon.

Rapid Controllerz · « **Reply #108 on:** June 27, 2008, 07:16:37 AM »

im sorry, but i can not find a tutorial on an 8 pin, im not looking to have changing PIC's either...Can someone point my in the direction of an 8 pin tutorial? Just for dual rapid fire where u push the bottons not the triggers? also where can i get hex files for 8 pin PIC's? i can tell u a more specefic PIC if needed

Nemesis · « **Reply #109 on:** June 27, 2008, 08:44:32 AM »

Quote from: Rapid Controllerz on June 27, 2008, 07:16:37 AM

im sorry, but i can not find a tutorial on an 8 pin, im not looking to have changing PIC's either...Can someone point my in the direction of an 8 pin tutorial? Just for dual rapid fire where u push the bottons not the triggers? also where can i get hex files for 8 pin PIC's? i can tell u a more specefic PIC if needed

pm'ed

ifrgtmyname · « **Reply #110 on:** June 28, 2008, 01:34:59 AM »

This mod looks awesome and quite straight forward

but I cannot work out how you would wire this:

Would I solder one of the pins on the switch to the GRN after putting the switch in series to the hot? (with a 10k resistor in between the switch and the GRN)

I also am not sure about the grounding, looking at KingMike's pictures on page 2, it looks like only 2 wire are soldered to the ground whereas on the systematic there are 7/8 wires that need to be grounded. Have you used a different grounding point or have you simply merged the wires down to 1 wire and then soldered that to the ground? Or do some wires just not need to be grounded?

Pictures would be appreciated showing merging or an alternate ground.

thanks

-ifrgt

SYSTEM aka (Cyberpyrot) · « **Reply #111 on:** June 28, 2008, 05:09:47 AM »

Quote from: ifrgtmyname on June 28, 2008, 01:34:59 AM

Would I solder one of the pins on the switch to the GRN after putting the switch in series to the hot? (with a 10k resistor in between the switch and the GRN)

Yu you got it the reason for the ground here is to prevent a floating pin meaning with out it you would get random button presses when you have not do anything to the button.

ifrgtmyname · « **Reply #112 on:** June 28, 2008, 07:22:41 AM »

Quote from: SYSTEM on June 28, 2008, 05:09:47 AM

Yu you got it the reason for the ground here is to prevent a floating pin meaning with out it you would get random button presses when you have not do anything to the button.

good good, thanks very much!

Also what about the ground wires thingy?

thanks

-ifrgt

KingMike_OS · « **Reply #113 on:** June 28, 2008, 07:50:58 AM »

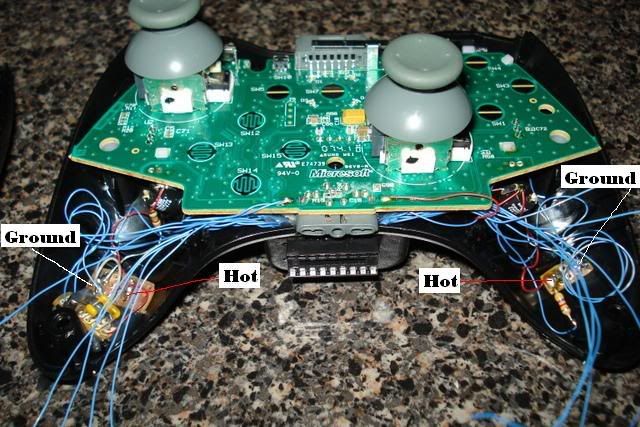

I put all my ground and all my hots together ..

saves time and space. as you can see i have hot and ground on both side that i can

Use.

ifrgtmyname · « **Reply #114 on:** June 28, 2008, 10:07:06 AM »

Thank you very much

ifrgtmyname · « **Reply #115 on:** July 04, 2008, 08:46:01 AM »

Sorry for asking so many questions but I want to be sure, where do I solder the leads from the socket to the controller I/O board for the right trigger ect, is it on the underside of the I/O board because I cannot see any pictures of the leads being soldered to the board. Any pictures would be great

KingMike_OS · « **Reply #116 on:** July 04, 2008, 05:36:46 PM »

here is a picture from sniper07 controller , i'm to lazy to open my controller again hope this help.

I will open my tonight and take a picture once i get back home .

ifrgtmyname · « **Reply #117 on:** July 05, 2008, 08:53:08 AM »

That is brilliant, thank you

ifrgtmyname · « **Reply #118 on:** July 14, 2008, 03:46:18 AM »

Ah! now I can't get the solder to stick to the I/O board for the Y button

. Anyone got any tricks up their sleeve for that?

thanks

KingMike_OS · « **Reply #119 on:** July 14, 2008, 08:09:15 AM »

scrape it with exacto knife I/Q board than apply flux to the wire that should do the trick
