Blazinkaos · « **on:** April 16, 2009, 09:55:18 PM »

Hey guys i got this mod i been working on for like 3 weeks i had issues with the solid not coming up. This isnt my slim its one of my customers. Heres some pics and video. Tell me what you think.

This is the the diagram of this and its proven to work i had to edit several times cuz of the solid.

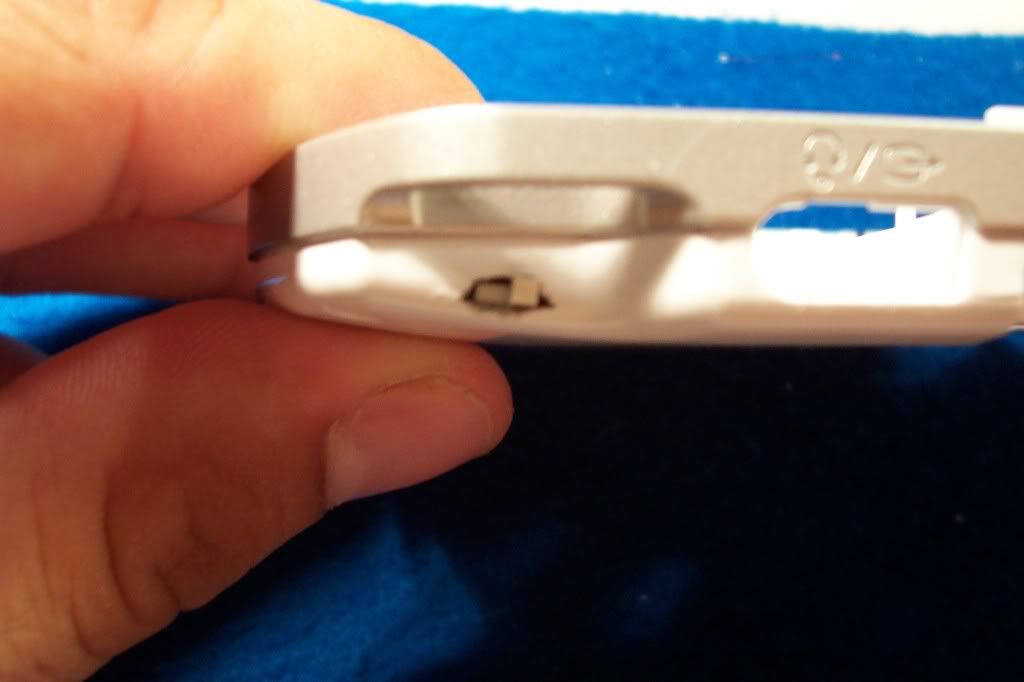

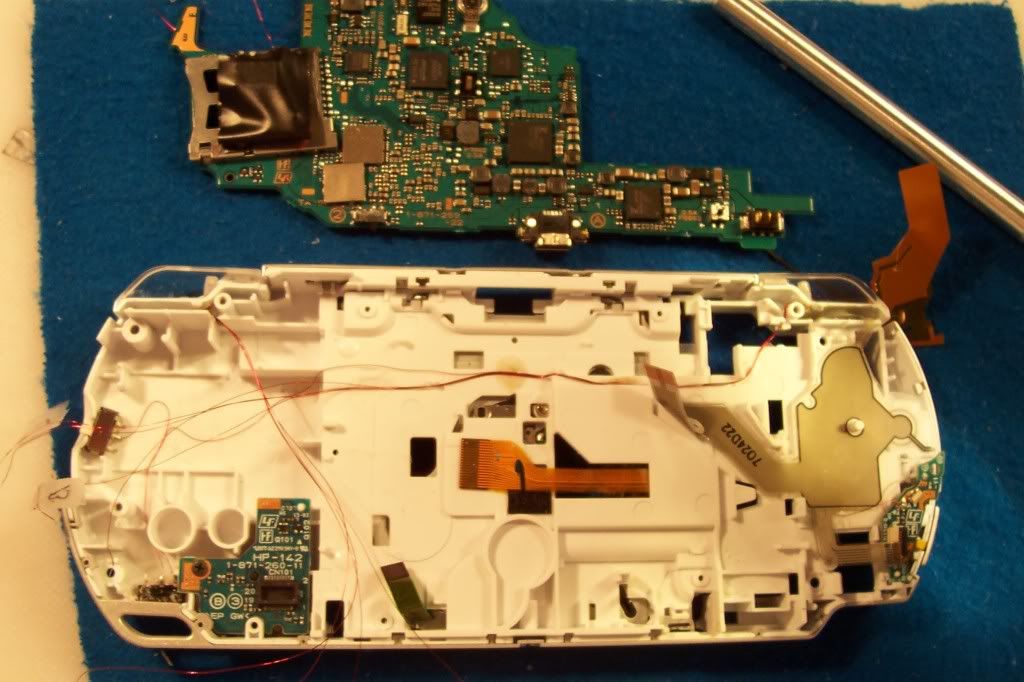

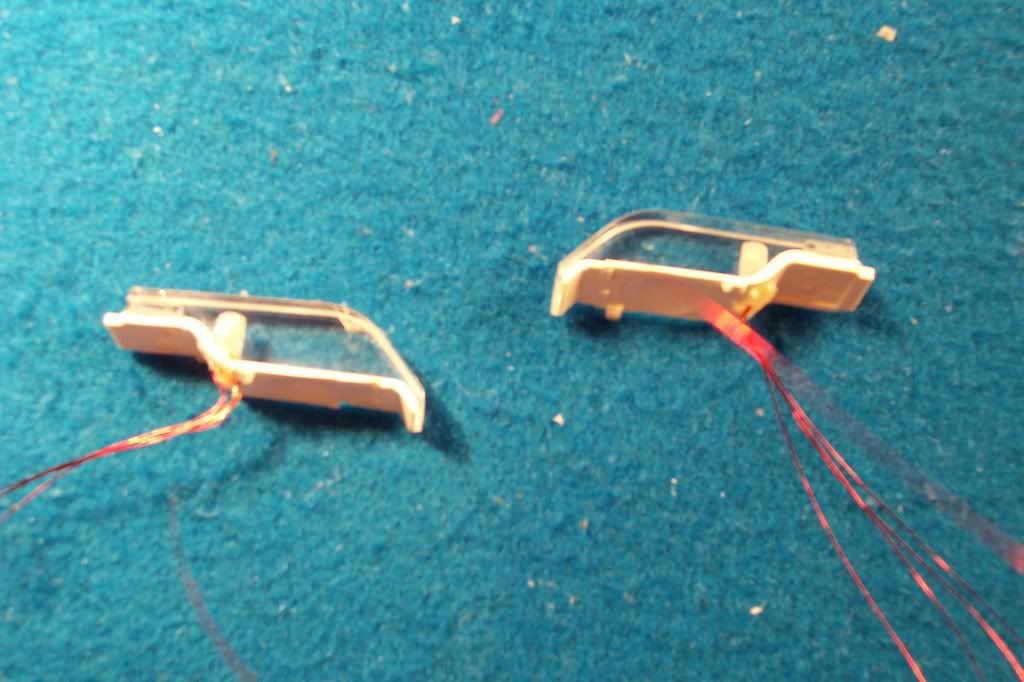

Now pics of the psp.

The pic with the purple was done PS cuz my camera wont catch the purple light for some reason it always came out blue some with the pixels i i guess but taht is the pic of the lights when there purple except it came blue and i edit it as purple in PS.

Heres the video.
PSP Slim SR/Solid Two Set Led ROL

xSLICKVICx · « **Reply #1 on:** April 16, 2009, 11:42:30 PM »

damn thats a sick psp good work on that man.

Blazinkaos · « **Reply #2 on:** April 17, 2009, 12:18:07 AM »

thanks bro

DarkShot · « **Reply #3 on:** April 17, 2009, 01:20:25 PM »

Looks great man.

I was wondering where this PSP went off to.

Magnet wire seemed to work quite well for you. How do you go about stripping the enamel coating off of it? I've read you just use the heat from the soldering iron. Is that right?

Blazinkaos · « **Reply #4 on:** April 17, 2009, 08:16:11 PM »

thanks, it went off to one of my customers from youtube. yea you first dup lil flux on the tip of the wire and use a blob of solder to melt the enamel off. its not hard at all.

EliteGamer83 · « **Reply #5 on:** April 17, 2009, 09:21:14 PM »

dude thats really nice! I'd buy it.

I NEED to know where you got those light blue LEDs, I need some of that exact color!

Blazinkaos · « **Reply #6 on:** April 17, 2009, 09:23:09 PM »

yea it not mine tho and i got my blue leds from uniqueleds.com

bustinthejustin · « **Reply #7 on:** April 17, 2009, 10:13:54 PM »

Lol Elite, that blue is like an average blue.

Great job on the mod though, Blazin. Got the RoL from shatteredmods.com?

Blazinkaos · « **Reply #8 on:** April 17, 2009, 10:52:51 PM »

Quote from: bustinthejustin on April 17, 2009, 10:13:54 PM

Lol Elite, that blue is like an average blue.

Great job on the mod though, Blazin. Got the RoL from shatteredmods.com?

yea hes kinda right..
tahnks bustin umm no i actually made that my self home made.

ApheX · « **Reply #9 on:** April 18, 2009, 02:58:01 AM »

Thats a sweet looking slim Blazinkaos!

DarkShot · « **Reply #10 on:** April 18, 2009, 04:58:07 AM »

Yeah home made FTW

I use acrylic for any home made jewel, and I gotta say you're lucky you got something of a drill press.

Cutting everything with a dremmel by hand is a pain.

EliteGamer83 · « **Reply #11 on:** April 18, 2009, 06:35:27 AM »

Yeh I have a drill press too really handy, they have one for only $79 at Home Depot if you guys want one.

Blazinkaos · « **Reply #12 on:** April 18, 2009, 12:03:34 PM »

Quote from: ApheX on April 18, 2009, 02:58:01 AM

Thats a sweet looking slim Blazinkaos!

thanks man

Quote from: DarkShot on April 18, 2009, 04:58:07 AM

Yeah home made FTW

I use acrylic for any home made jewel, and I gotta say you're lucky you got something of a drill press.

Cutting everything with a dremmel by hand is a pain.

well i used to do it with a knife and that till i got my dremel station but its still kinda home made cuz the machine is doing half and ur guiding it instead having the machine do it all by its self.

Quote from: EliteGamer83 on April 18, 2009, 06:35:27 AM

Yeh I have a drill press too really handy, they have one for only $79 at Home Depot if you guys want one.

u serious $79 mine was like $30 on sale and its original $40 thats out rages

gx470 · « **Reply #13 on:** April 18, 2009, 08:49:40 PM »

heyy, can u cut the UMD door with a drillpress?

Blazinkaos · « **Reply #14 on:** April 18, 2009, 08:52:04 PM »

yea with the right bit you can.

MARIOPARTY53 · « **Reply #15 on:** April 18, 2009, 09:14:03 PM »

dude, nice wiring! I going to put a switch where you put one(under the trim loop thing

Thanks for giying me the idea where to put a switch!

gx470 · « **Reply #16 on:** April 18, 2009, 10:19:48 PM »

wuts easier? dremel or drillpress?

MARIOPARTY53 · « **Reply #17 on:** April 18, 2009, 10:39:18 PM »

Quote from: gx470 on April 18, 2009, 10:19:48 PM

wuts easier? dremel or drillpress?

i think dreamel, just cut the hole round, then spend 5-10 mins sanding for perfect fit

EliteGamer83 · « **Reply #18 on:** April 19, 2009, 05:36:54 AM »

Quote from: Blazinkaos on April 18, 2009, 12:03:34 PM

thanks manwell i used to do it with a knife and that till i got my dremel station but its still kinda home made cuz the machine is doing half and ur guiding it instead having the machine do it all by its self.u serious $79 mine was like $30 on sale and its original $40 thats out rages

WHAT!? $79 is CHEAP some are up to $500.

Blazinkaos · « **Reply #19 on:** April 19, 2009, 03:41:41 PM »

Quote from: MARIOPARTY53 on April 18, 2009, 09:14:03 PM

dude, nice wiring! I going to put a switch where you put one(under the trim loop thing

Thanks for giying me the idea where to put a switch!

thanks man and ur welcome.

79 idk man u must have on heck og machine if it cost that much.

qharr · « **Reply #20 on:** April 25, 2009, 01:45:05 PM »

thanks man... perfect tut

Blazinkaos · « **Reply #21 on:** April 27, 2009, 05:26:00 PM »

np man and thanks

ryan · « **Reply #22 on:** May 03, 2009, 05:25:03 PM »

Well first off, for the tenth time, very nice job. But I have a few Q's if you got a sec. Did you say that was the dremel drill press add on? Cause i have a dremel and if thats what you used, looks like a good investment. Also I heard magnet wire wasn't a good idea did you have any probs with it. What gauge did you use cause it looked so small? Did you use something different for the ground and power? Sorry for all the questions, just always lookin for a quicker, smarter, better way to do things. Thanks,
ryan aka crzywitboy3

EliteGamer83 · « **Reply #23 on:** May 03, 2009, 05:42:05 PM »

Ryan, I can answer one of your questions! He used magnet enamel wire.

bustinthejustin · « **Reply #24 on:** May 03, 2009, 06:34:20 PM »

Quote from: ryan on May 03, 2009, 05:25:03 PM

Well first off, for the tenth time, very nice job. But I have a few Q's if you got a sec. Did you say that was the dremel drill press add on? Cause i have a dremel and if thats what you used, looks like a good investment. Also I heard magnet wire wasn't a good idea did you have any probs with it. What gauge did you use cause it looked so small? Did you use something different for the ground and power? Sorry for all the questions, just always lookin for a quicker, smarter, better way to do things. Thanks,
ryan aka crzywitboy3

Yeah I do think he had a dremel drill-press add on. Magnet wire is supposedly easier to short and stuff, but it seems to work for him. For the magnet wire gauge, looks about 30. And for the ground and power, I'm not sure.

Blazinkaos · « **Reply #25 on:** May 03, 2009, 10:43:48 PM »

Quote from: ryan on May 03, 2009, 05:25:03 PM

Well first off, for the tenth time, very nice job. But I have a few Q's if you got a sec. Did you say that was the dremel drill press add on? Cause i have a dremel and if thats what you used, looks like a good investment. Also I heard magnet wire wasn't a good idea did you have any probs with it. What gauge did you use cause it looked so small? Did you use something different for the ground and power? Sorry for all the questions, just always lookin for a quicker, smarter, better way to do things. Thanks,
ryan aka crzywitboy3

Ok yes that is a dremel press you can get this at home depot or lowes under 50 bucks works very well in drilling stuff and easier to sand as well since you can use both your hands to hold the object. The wire isnt 30 gauge it is 38 gauge its really really small but it works fine for me but i would suggest if you havent had much experience to go with 30 gauge as a start. Also i may have pointed this out below before about how to remove the enamel from the magnetic wire ill say it again. You simple dip or scrap lil piece of flux place it on the tip if the wire and take a blob of solder and simple let the tip of the wire sit in the blob it will smoke some from the fluz and youll start to see a dark liguid appear in your blob of solder. Thats the enamel being removed from the wire so pretty much have tined that wire and its ready to solder on. For the ground i used the wifi switch and the power i used the 5v point on the mobo for both sound reactive and solid. The digram below should help you out.

EliteGamer83 · « **Reply #26 on:** May 04, 2009, 07:01:15 AM »

Dude this was the only thing I could find, is this what you used?

http://www.homedepot.com/webapp/wcs/stores/servlet/ProductDisplay?storeId=10051&langId=-1&catalogId=10053&productId=100609334&N=10000003+90401

ryan · « **Reply #27 on:** May 04, 2009, 09:35:24 AM »

Thank you all very much for the answers. The only thing is when I asked about the power and ground I ment what kind of wire did you use because I was told that if you have more than 4 leds in parrallel that you should use at least 26 awg to handle the current. But thanks again everyone.
crzywitboy3

EliteGamer83 · « **Reply #28 on:** May 04, 2009, 10:43:36 AM »

Quote from: ryan on May 04, 2009, 09:35:24 AM

Thank you all very much for the answers. The only thing is when I asked about the power and ground I ment what kind of wire did you use because I was told that if you have more than 4 leds in parrallel that you should use at least 26 awg to handle the current. But thanks again everyone.
crzywitboy3

Nah you can handle up to like 10 + 0603's with 30 AWG kynar wire which is what I use.

Blazinkaos · « **Reply #29 on:** May 04, 2009, 11:22:22 AM »

Quote from: EliteGamer83 on May 04, 2009, 07:01:15 AM

Dude this was the only thing I could find, is this what you used?

http://www.homedepot.com/webapp/wcs/stores/servlet/ProductDisplay?storeId=10051&langId=-1&catalogId=10053&productId=100609334&N=10000003+90401

No that not the one heres a pic of the one i used.

Quote from: ryan on May 04, 2009, 09:35:24 AM

Thank you all very much for the answers. The only thing is when I asked about the power and ground I ment what kind of wire did you use because I was told that if you have more than 4 leds in parrallel that you should use at least 26 awg to handle the current. But thanks again everyone.
crzywitboy3

No dnt use 26 to big 30 is your best shot go with that.
