Xbox 360 Controller Sync Button Help
« on: March 15, 2012, 10:21:50 PM »
I have this controller from a while back, I was changing the ring of light.
When I was removing the first smd on a cg2 controller, I burned out a
Small resistor or diode whatever it is. There small as a smd, well I burned it down
In a accident. So now when I try to sync it to the Xbox it wont sync. I'm guessing
It has to do something with the sync button, since that's the only thing that
Got messed up.
  I was wondering if there's any way to add a resistor wire or something to make it
Work. Hope to get some positive replies.
Logged

Offline snowcolt17

  • Moderator
  • Acid Modder
  • *
  • Posts: 552
  • Post quality +16/-1
  • Gender: Male
  • If all else fails, reflow it
Re: Xbox 360 Controller Sync Button Help
« Reply #1 on: March 15, 2012, 10:30:36 PM »
o boy. yay. not.. lol

but anyways. look next to the smd that is missing/bad. and itll say like d25..
d-diode
c-capacitor
r-resistor.

it will need replacing. dont know the values. but can check..
Logged

Offline tempermodz

  • Motor Mouth
  • *
  • Posts: 81
  • Post quality +0/-2
  • Gender: Male
  • Acidmods User
Re: Xbox 360 Controller Sync Button Help
« Reply #2 on: March 15, 2012, 10:42:41 PM »
lol. Its a capasitor C28
Logged

Offline Hazer

  • x4675636B4E7574
  • Acidmods Alumni
  • Acid Modder
  • *
  • Posts: 583
  • Post quality +59/-0
Re: Xbox 360 Controller Sync Button Help
« Reply #3 on: March 16, 2012, 02:46:37 AM »
Try to just remove it. It sounds like it is shorted. It is possible to run without the capacitor, so just float it off and see if the controller works.
Logged
[Quote from Gamermodz via Viking forums]
Don't be jealous your not half as smart. I hate ****tards like you. An ignorant redneck. Your nothing but a posing ******. Get the **** out of here, really, your claim to fame is an open source rapid fire code? You make me laugh. You think you have control over the modding market?  You couldn't create what I can and do. You are too ignorant with your outrageous assumptions and accusations. [/Quote]

Offline tempermodz

  • Motor Mouth
  • *
  • Posts: 81
  • Post quality +0/-2
  • Gender: Male
  • Acidmods User
Re: Xbox 360 Controller Sync Button Help
« Reply #4 on: March 16, 2012, 07:36:19 AM »
Quote from: Hazer on March 16, 2012, 02:46:37 AM
Try to just remove it. It sounds like it is shorted. It is possible to run without the capacitor, so just float it off and see if the controller works.

The capisitor is removed. When it burned out it just dissapeared.
I guess it burned. The controller turns on etc.. it just wont sync to
A Xbox, neither with the charge & play kit. It needs a capisitor or something
There
Logged

Offline Rodent

  • XBOX,XBOX360,PS3,WII
  • Moderator
  • Around the block
  • *
  • Posts: 2983
  • Post quality +75/-5
  • Gender: Male
  • MODDER, REPAIR, CUSTOM IDEAS.
Re: Xbox 360 Controller Sync Button Help
« Reply #5 on: March 16, 2012, 08:00:12 AM »

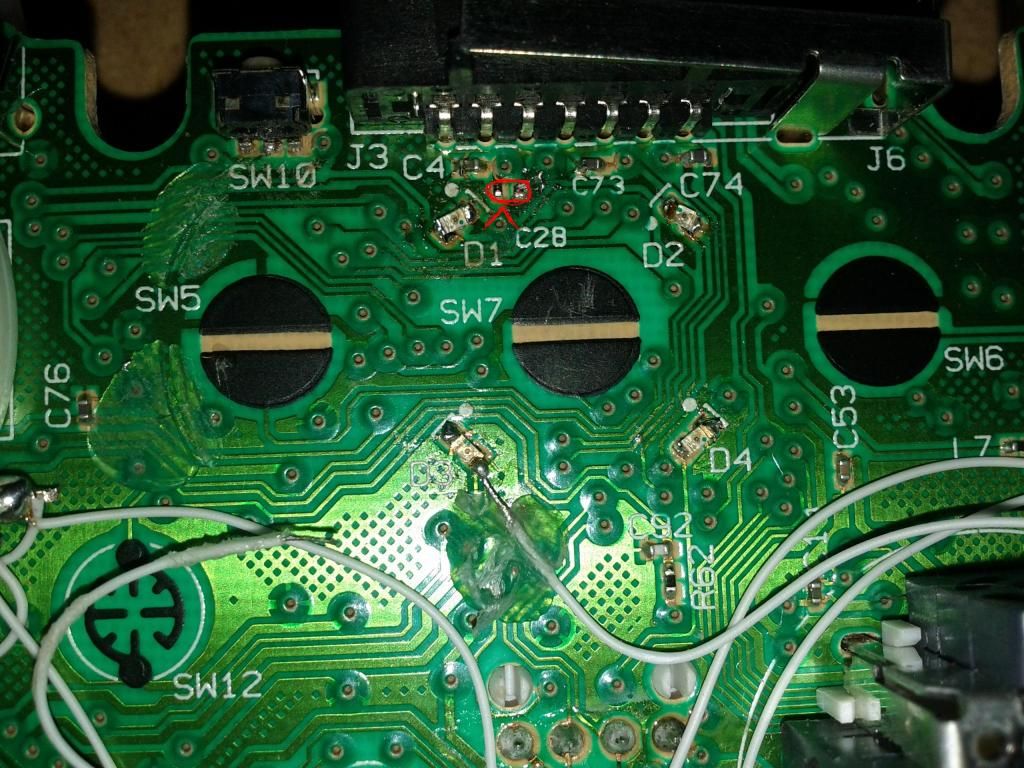

Take a pic help us more understand where its at exactly
Logged

 Tracey: I cant believe Rodent of all people made my damn day
3D0: snacks cartoons and naps  lol sounds like rodents typcial day :rofl:
Rodent consoles mods

Offline tempermodz

  • Motor Mouth
  • *
  • Posts: 81
  • Post quality +0/-2
  • Gender: Male
  • Acidmods User
Re: Xbox 360 Controller Sync Button Help
« Reply #6 on: March 16, 2012, 11:31:50 AM »




EDIT:
So does any one have any thoughts, ideas for this ?

[mod]PLEASE DO NOT DOUBLE POST Click modify to edit post, you have previously been warned for this. Please help us keep the forum in order by not double posting.[/mod]
« Last Edit: March 19, 2012, 05:42:33 PM by Modded Matt »
Logged

Offline RDC

  • Administrator
  • Around the block
  • *
  • Posts: 2601
  • Post quality +90/-2
  • Gender: Male
  • The CGnome Project
Re: Xbox 360 Controller Sync Button Help
« Reply #7 on: April 01, 2012, 04:08:28 PM »
You're chasing a ghost. ;) C28 was never there to begin with, it wasn't installed from the factory.

Plug up a PnC cable to the controller and 360 and see if it will force the Sync.
Logged
Screwing up is one of the best learning tools, so long as the only thing you're not learning is how to screw up.
