Author Topic: JDM-055 (1-982-707-31) Schematic (Read 119692 times)

RDC · « **on:** May 26, 2020, 06:10:34 PM »

Not complete, may never be honestly. If you find any errors or have any known component values to contribute go for it, but I'm not in any kind of race to make this thing 100% complete, so it'll get updated when it gets updated as I'll have to verify any errors/values anyway before making changes.

SCHEMATIC- https://www.acidmods.com/RDC/DS4/JDM-055/1-982-707-31%20small/JDM-055__(31)__SOME__VALUES.pdf

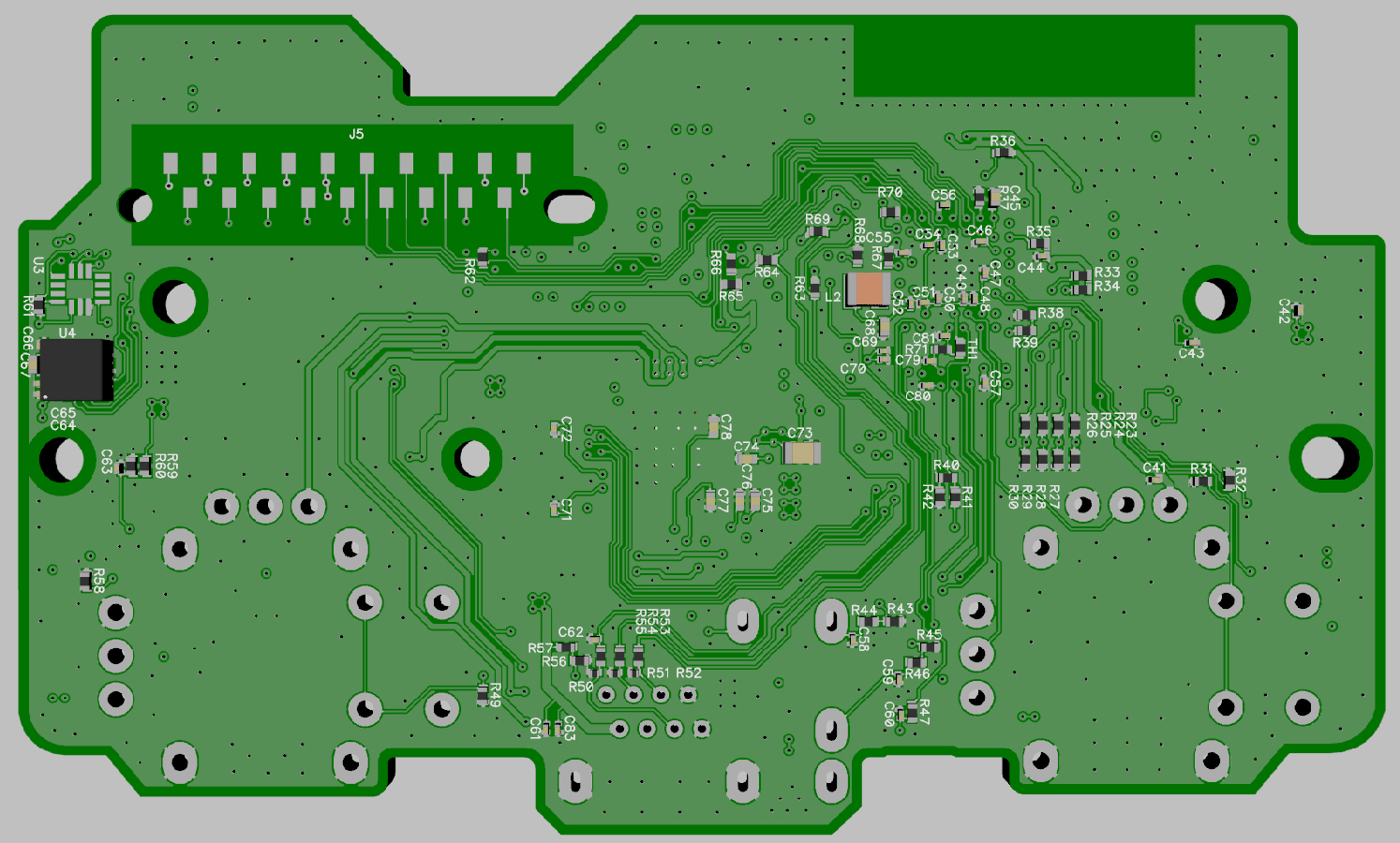

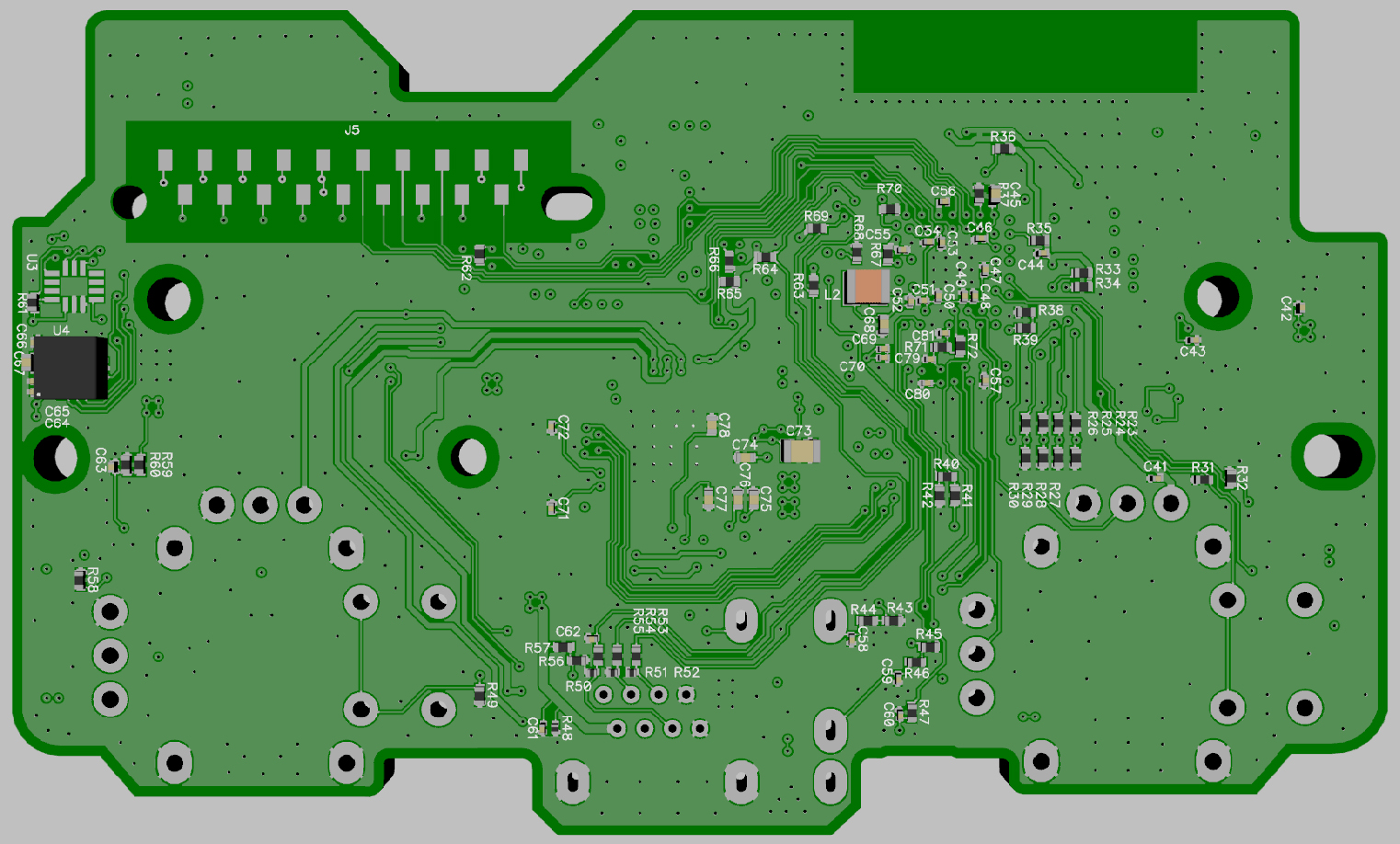

TOP DESIGNATORS - https://www.acidmods.com/RDC/DS4/JDM-055/1-982-707-31%20small/JDM-055_1-982-707-31_Top_Designations.jpg

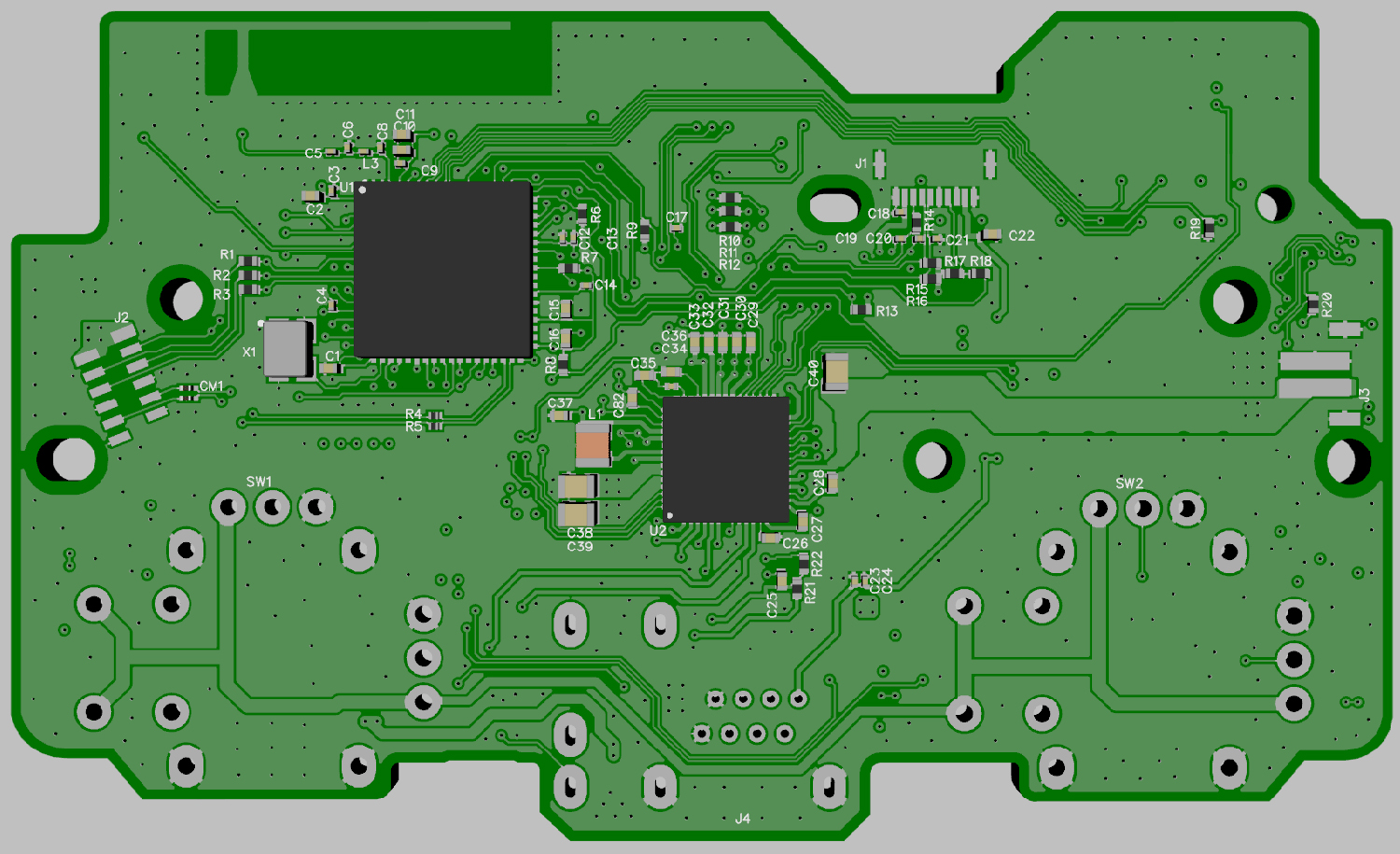

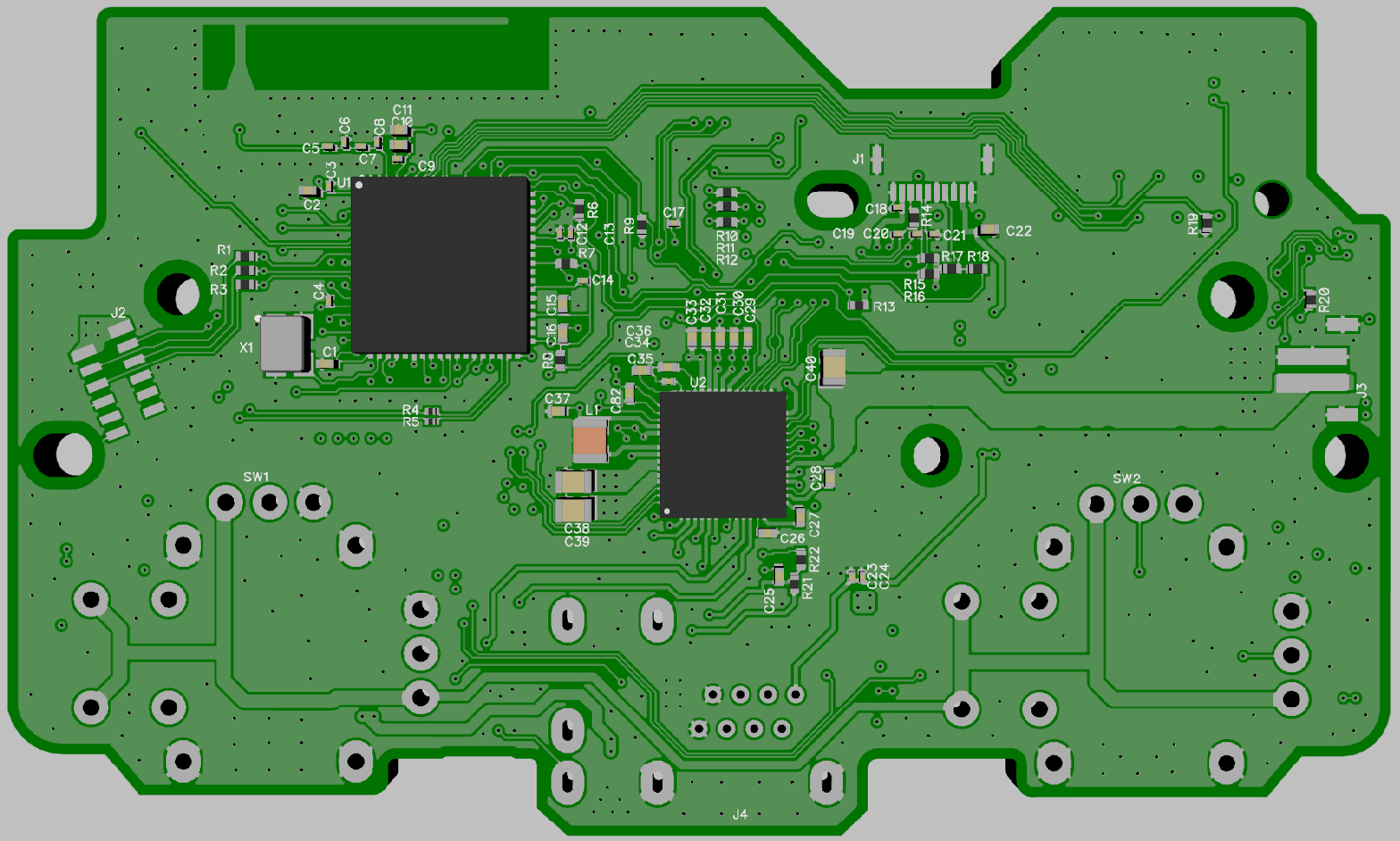

BOTTOM DESIGNATORS - https://www.acidmods.com/RDC/DS4/JDM-055/1-982-707-31%20small/JDM-055_1-982-707-31_Bottom_Designations.jpg

The PCB was basically stripped and reversed from a hardware standpoint, so I could make sure I knew where everything was connected. At that point I could have gone component by component to get all of the values recorded, but I just wasn't in the mood and wiped the thing clean to get at the meat of it. Being a 4 layer PCB it's the best way to go about it, unless you have access to a flying probe machine that can do a million continuity checks in a minute, plus want to spend all day programming in all the spots it needs to check. The PCB has 774 vias, for anyone that was curious.

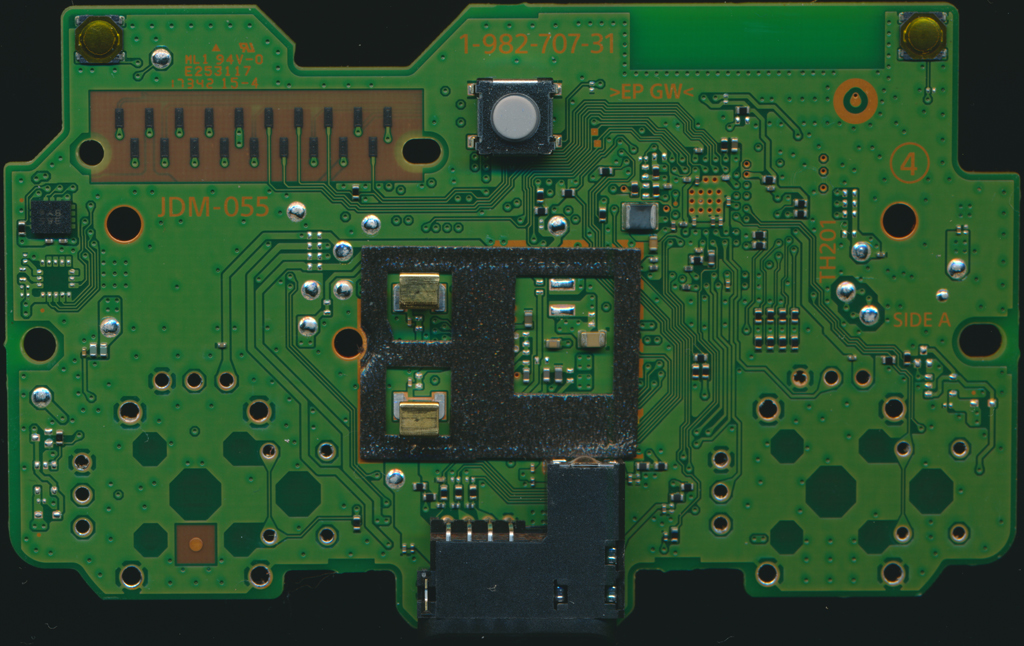

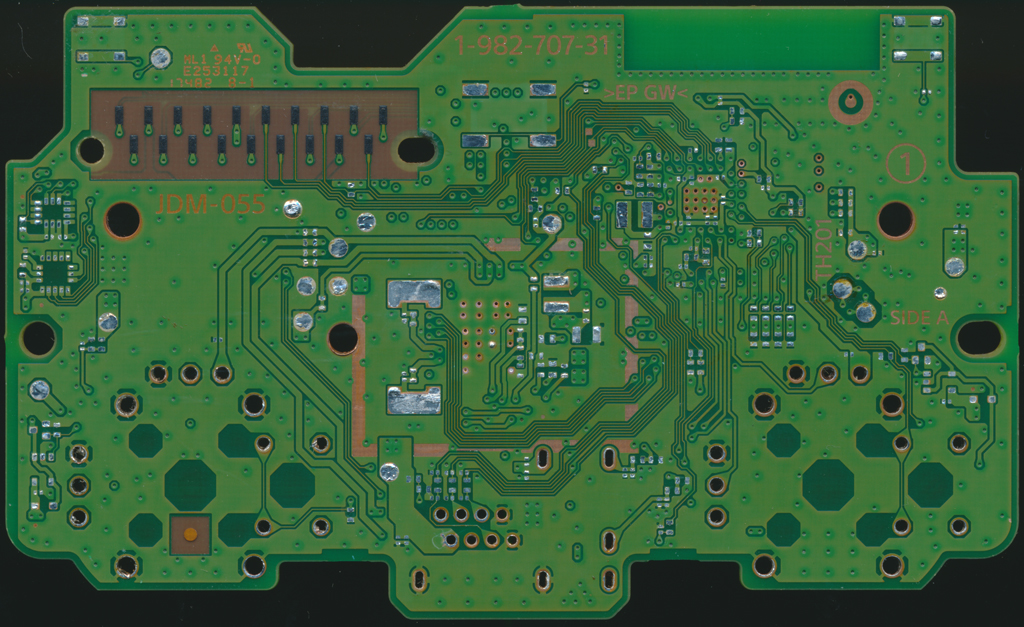

TOP

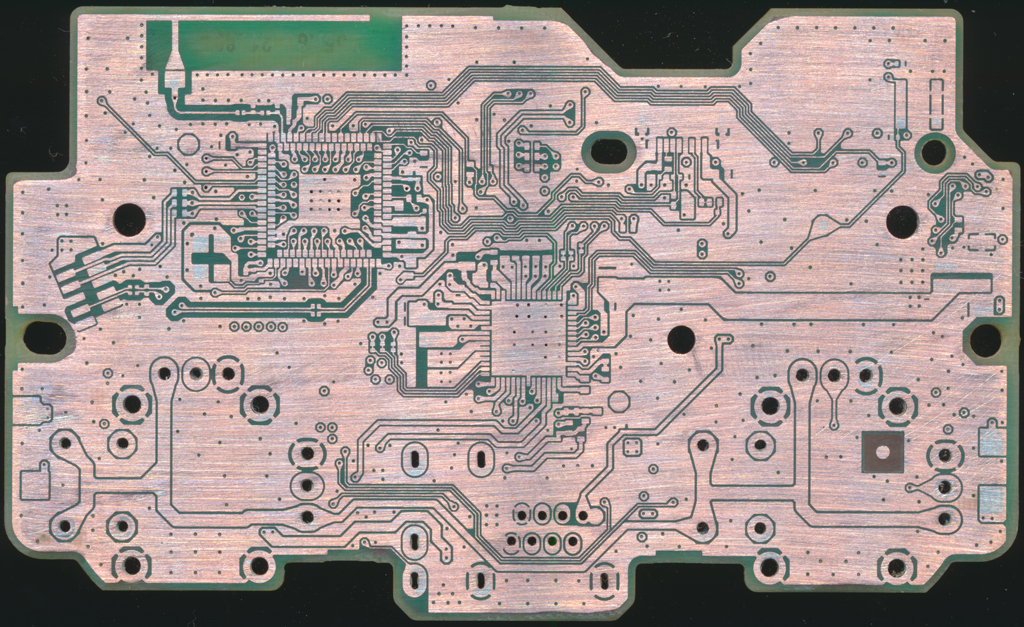

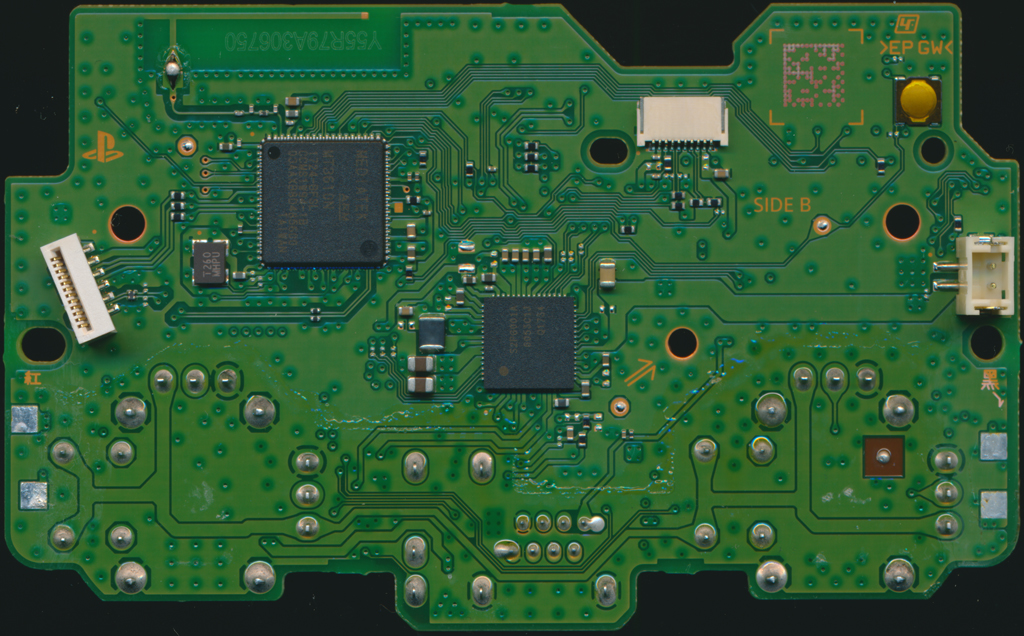

TOP CLEAN

TOP STRIPPED

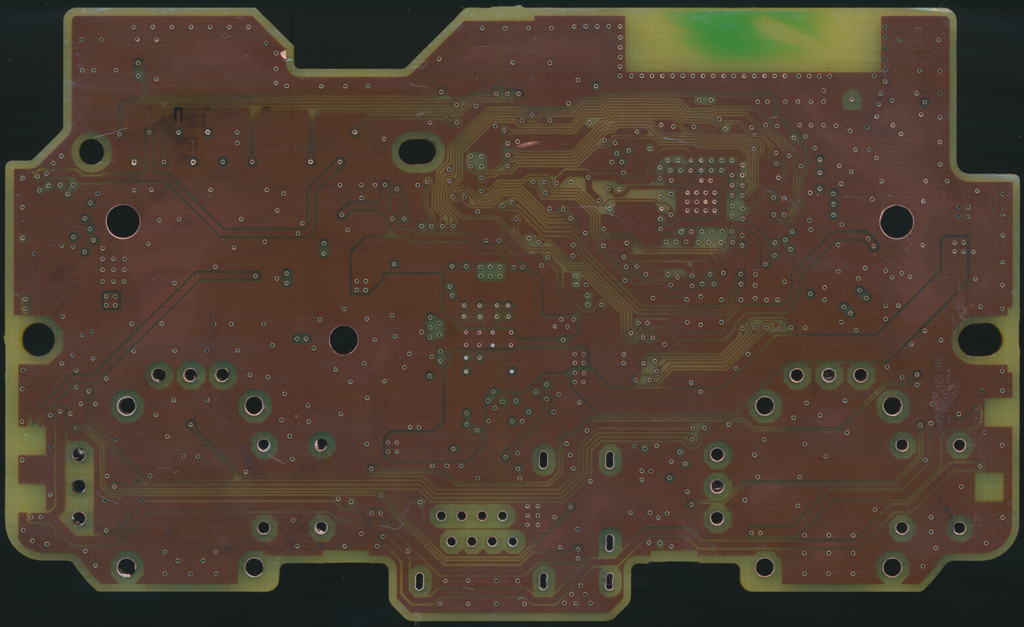

INNER 1

BOTTOM

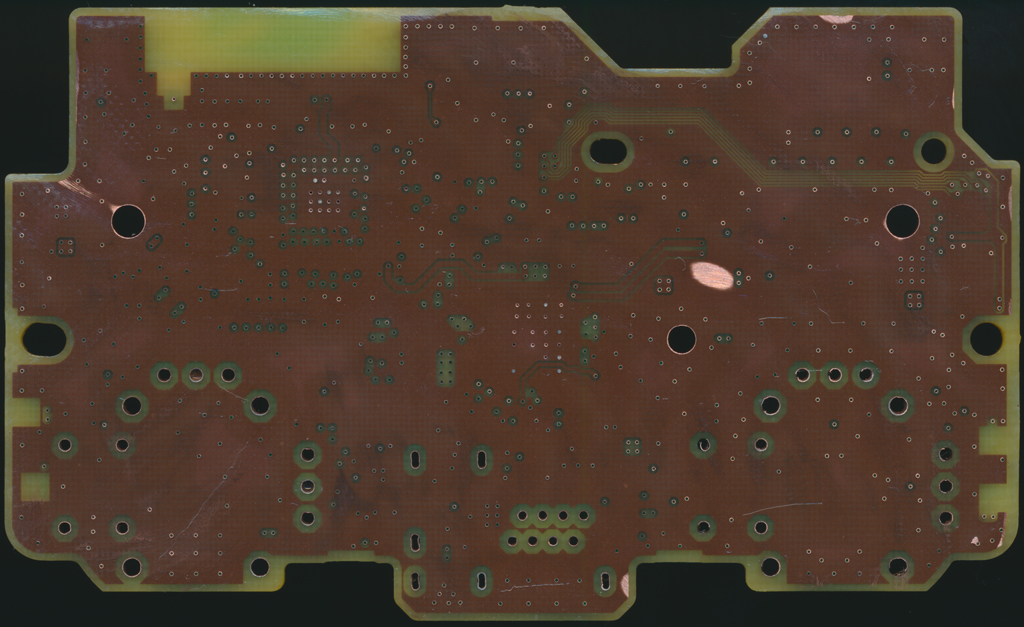

BOTTOM CLEAN

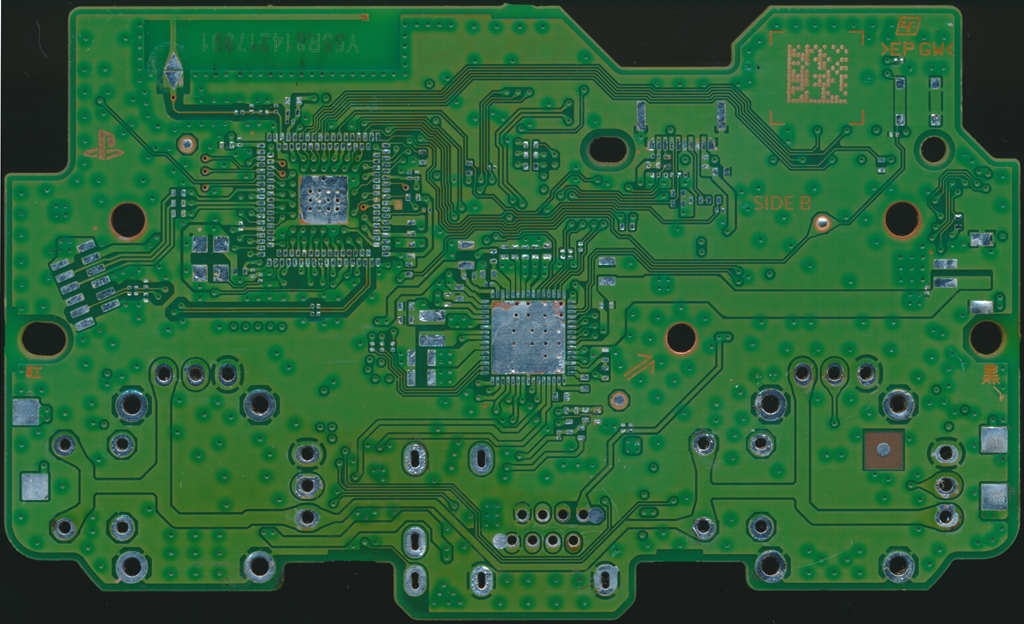

BOTTOM STRIPPED

INNER 2

Daywalk3r · « **Reply #1 on:** May 26, 2020, 10:21:17 PM »

OMG, how much time did it take?
Great job!

RDC · « **Reply #2 on:** May 27, 2020, 12:10:13 AM »

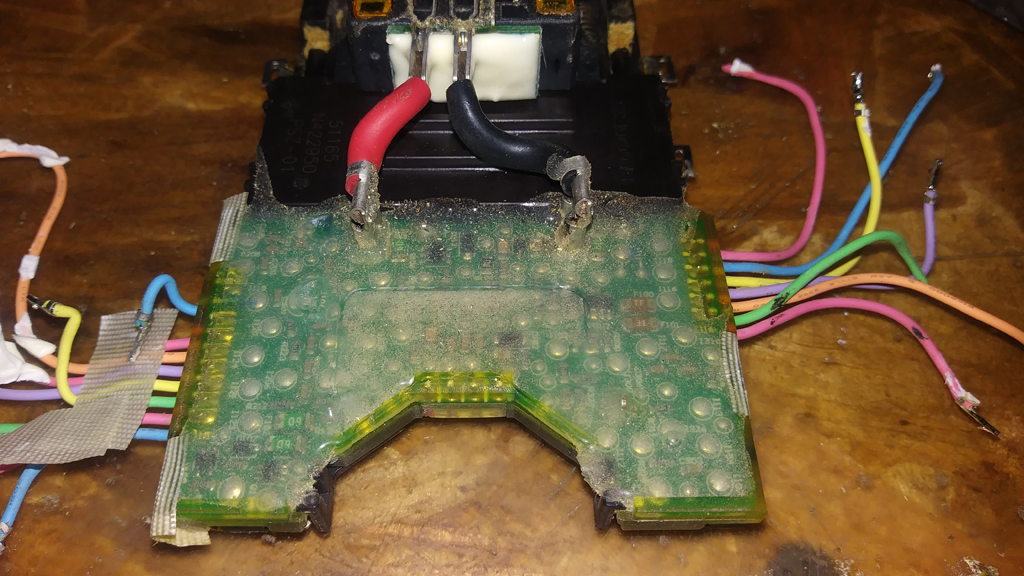

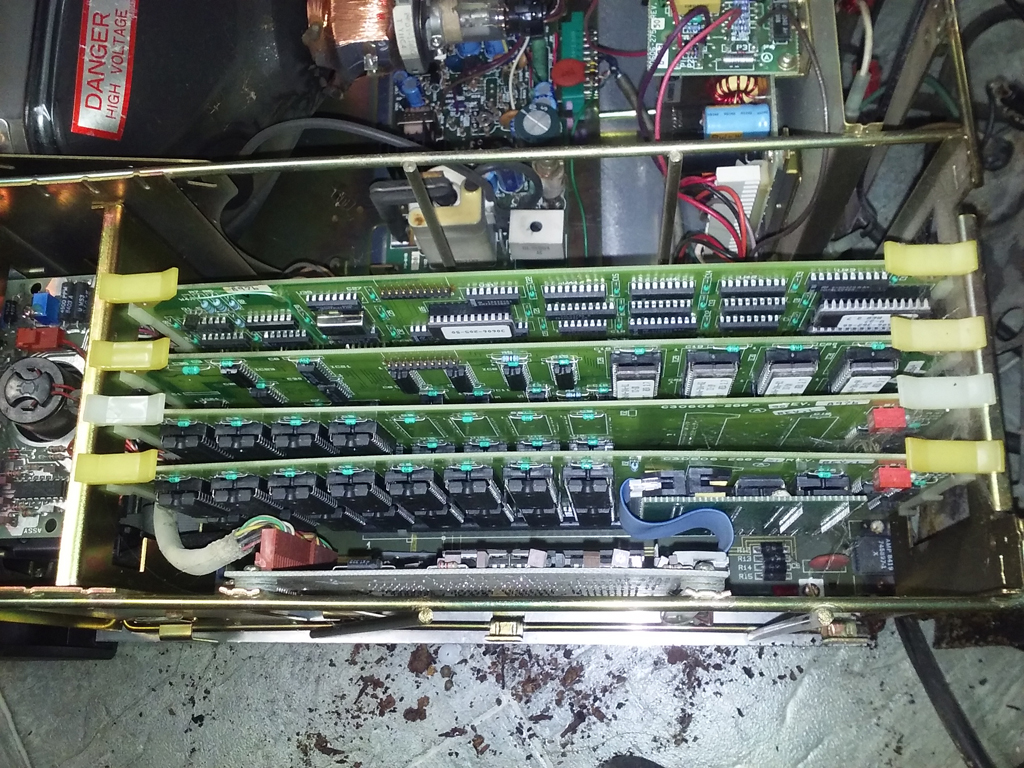

Didn't really keep track, but it's just more tedious than time consuming really. Also not my first go at figuring out a schematic from a PCB. One that did take a little awhile to do was a Square D 8010 SPR-300 programmer. It didn't work and I wanted to figure it out, so it had to all be done in a nondestructive manner. It came apart one component at a time, the component was tested and then after the PCB scans it all went back together. No SMT components in there and only 2 layer boards, but it had more than a few of them. Also not my first go at a 4 layer PCB, the one I did before this was out of a DeWalt DCB606 battery pack, which was potted on both sides, so loads more fun to be had there in that case.

Getting all of the component values and making the schematic 'presentable' is what will take the most time, as you don't know what layout will work best until you have it all on there and everything connected together. The core of the schematic doesn't take ages to do if all you want is a reference for where everything is connected, but then it looks like a plate of spaghetti topped with silly string wrapped with a bow on top in comparison to when it's cleaned up. Even that one is a little busy for my liking, but it's still not 'finished' as far as I'm concerned.

12sasha · « **Reply #3 on:** June 15, 2020, 12:46:08 AM »

Уважаемый!
Можете подсказать. у меня не работает кнопка R2.
Проблема именно в плате, так как ставил плату в другой геймпад, и там кнопка так же не работает.
Геймпад долго хранился на полке с прижатой кнопкой R2. И похоже из за этого она перестала работать....
Какой контакт J5 отвечает за нее?

wickated · « **Reply #4 on:** June 15, 2020, 04:16:54 AM »

Quote from: 12sasha on June 15, 2020, 12:46:08 AM

Уважаемый!
Какой контакт J5 отвечает за нее?

short this 2

sanjua_vino · « **Reply #5 on:** July 07, 2020, 04:01:23 AM »

Quote from: RDC on May 26, 2020, 06:10:34 PM

Not complete, may never be honestly. If you find any errors or have any known component values to contribute go for it, but I'm not in any kind of race to make this thing 100% complete, so it'll get updated when it gets updated as I'll have to verify any errors/values anyway before making changes.

Schematic- https://www.acidmods.com/RDC/DS4/JDM-055/1-982-707-31%20small/JDM-055%20(31)%20Cleaned%20SOME%20VALUES.pdf

Top Board Designations - https://www.acidmods.com/RDC/DS4/JDM-055/1-982-707-31%20small/JDM-055_1-982-707-31_Top_Designations.jpg

Bottom board Designations - https://www.acidmods.com/RDC/DS4/JDM-055/1-982-707-31%20small/JDM-055_1-982-707-31_Bottom_Designations.jpg

The PCB was basically stripped and reversed from a hardware standpoint, so I could make sure I knew where everything was connected. At that point I could have gone component by component to get all of the values recorded, but I just wasn't in the mood and wiped the thing clean to get at the meat of it. Being a 4 layer PCB it's the best way to go about it, unless you have access to a flying probe machine that can do a million continuity checks in a minute, plus want to spend all day programming in all the spots it needs to check. The PCB has 774 vias, for anyone that was curious.

IMPRESIONANTE tu aporte, tu voluntad, tu tiempo, lo que nos aportas...muchas gracias.
Luis de San Juan-Argentina

RDC · « **Reply #6 on:** July 08, 2020, 05:03:55 AM »

Bienvenidas

Zebulonite · « **Reply #7 on:** July 15, 2020, 03:42:22 PM »

Thanks but do you have JDM-030 schematic? Or what the difference between a Jdm-055 pcb? Components are differently soldered on.

RDC · « **Reply #8 on:** July 15, 2020, 09:32:12 PM »

Nope. Most everything is different between an -030 and the -055.

MCorgano · « **Reply #9 on:** August 12, 2020, 03:15:36 AM »

Holy

this is impressive work. Great job!

RDC · « **Reply #10 on:** August 12, 2020, 04:55:41 AM »

Thanks, though this is probably the easiest version DS4 board to do this to.

XaRaBaS · « **Reply #11 on:** August 15, 2020, 01:01:18 AM »

Awesome work!

Senén · « **Reply #12 on:** September 06, 2020, 05:22:49 AM »

Hi

Thanks for upload the circuit board info.

I unitentionally removed R58, and I don't know what is the value. Do someone know this resistor value?

Thanks in advance.

RDC · « **Reply #13 on:** September 06, 2020, 06:15:02 AM »

R58 = 100k

Senén · « **Reply #14 on:** September 06, 2020, 07:55:54 AM »

Hi

Thanks for the answer.

Are you sure? I've seen in another thread a post saying that, but I think that thread was about other model of controller.

Regards

RDC · « **Reply #15 on:** September 06, 2020, 09:07:29 AM »

Yeah, I'm not going there today. R58 = 100k.

Senén · « **Reply #16 on:** September 06, 2020, 09:20:11 AM »

Ok, I will solder a 100k. Thanks

NEOCRIVI · « **Reply #17 on:** September 14, 2020, 01:08:47 PM »

Some measurements in diodes for search shorts on pcb 055 ok:

BR

wickated · « **Reply #18 on:** September 14, 2020, 10:28:25 PM »

thats like measuring crocodiles with bananas.

ZhenyaKa · « **Reply #19 on:** October 06, 2020, 01:24:25 AM »

Great Job! Maybe try to collect donate for other models?

RDC · « **Reply #20 on:** October 07, 2020, 11:46:39 AM »

If anyone wishes to donate anything, they can do so to the site, so it's still around for when/if I decide to do any more of this type of thing in the future and so that what has already been done on here has a place to stay. Thanks. https://www.acidmods.com/forum/index.php

MadMaxGR · « **Reply #21 on:** October 15, 2020, 12:13:57 AM »

@RDC

Great job mate, as always

I assume now I can troubleshoot the famous, "connecting only with wire" issue of the JDM-055 pcbs.

Maybe you have figured already what is causing it?

The fact that the controller doesn't connect wirelessly, only with USB, and that even the battery is fully charged, it will not flash light, points to a short near the BT chip or the chip it self. People so far had some success by replacing the BT IC but it costs an arm and a leg to buy that IC. Doesn't worth it I believe.

RDC · « **Reply #22 on:** October 15, 2020, 12:59:27 AM »

Thanks.

I haven't seen or heard of anything specifically causing that issue. The BT is built into the MCU chip now, so unless the filter network for it right before the antenna is all messed up there's not really much that can be done when just that part of it goes bad. Same for if the battery charging is all that dies, you have to replace that entire PMIC chip that does everything else on there because that one little section of it decided to stop working. It's a bit worse when it comes to the MCU because it has to come from another controller so it's been programmed correctly, so you have to harvest that MCU from another working controller, or at least one that is damaged in some other way and the MCU is still good on, there's no other place to get that replacement part from.

MadMaxGR · « **Reply #23 on:** October 17, 2020, 12:47:32 PM »

Quote from: RDC on October 15, 2020, 12:59:27 AM

Thanks.

I haven't seen or heard of anything specifically causing that issue. The BT is built into the MCU chip now, so unless the filter network for it right before the antenna is all messed up there's not really much that can be done when just that part of it goes bad. Same for if the battery charging is all that dies, you have to replace that entire PMIC chip that does everything else on there because that one little section of it decided to stop working. It's a bit worse when it comes to the MCU because it has to come from another controller so it's been programmed correctly, so you have to harvest that MCU from another working controller, or at least one that is damaged in some other way and the MCU is still good on, there's no other place to get that replacement part from.

Yes I was afraid of that. There are some chips on the wild but with cost over ?20 each IC, doesn't worth it. It is better to make the controller parts than fix this or use a broken controller's working chip to replace the other's faulty.

gremlins · « **Reply #24 on:** November 25, 2020, 05:31:31 PM »

The PMIC is the S2PG001A chip isn't it. Are there any known places that do this chip cheap?

Only found it on aliexpress and its expensive

RDC · « **Reply #25 on:** November 25, 2020, 10:42:58 PM »

Correct. Nope.

You can look around for fragged controllers at places, but it could be a crap shoot if the PMIC on those boards is good on it or not. $20 to save a $60 controller is kind of getting on the high side, but I'd prefer that versus adding it to the pile that isn't helping anyone.

MexicanRG · « **Reply #26 on:** January 18, 2021, 04:36:29 PM »

Hello friend, thanks a lot!! Do you have information about JDM-040, 030, etc.?

How can I get them?

fantastic job

RDC · « **Reply #27 on:** January 18, 2021, 05:04:51 PM »

Hello, you're welcome. Nope, I have only done the -055 for now.

You can make them, like I did this one.

Thanks.

MCorgano · « **Reply #28 on:** January 18, 2021, 09:59:23 PM »

Quote from: MexicanRG on January 18, 2021, 04:36:29 PM

Hello friend, thanks a lot!! Do you have information about JDM-040, 030, etc.?

How can I get them?

fantastic job

While they're not the same, a lot of the same principles apply. So if a power rail goes from in 1 of one chip to pin 10 of the other, and both chips are also on the 040 version, they likely also have a power rail between them.

ChrisJavier · « **Reply #29 on:** May 24, 2021, 01:26:33 PM »

Can a missing R27 be responsible for an analog stick not working properly?
