DualSense 5 Controller PCB Scans

[kumpll2007]

Hello everyone! After replacing the left stick, it got stuck in the upper left position.


I noticed that some element is missing here, where I highlighted in red. What is this element?


Now, even when I unsoldered the stick, it still stays in the upper left position. Please tell me what I broke.

[RDC]

Missing part is just a capacitor, that's not needed and isn't causing the issue.

Stuck up/left either both axis lines are shorted to ground, or pulled the plating out of the holes for the voltage to the POTs or pulled the plating out of the holes for the axis.

[Para81szs]

@kumpll2007  Your problem is also with the mouths because from what I can see they are a little damaged, especially the lower ones, there is definitely something wrong.

[Para81szs]

Where exactly is it because I can't figure out the position?

[RDC]

Only 2 connectors on the board that size, and only one of them has anything to do with the R1 button. Also, that image was flipped as I did it top down thru the layers, it's fixed now.

[ZhenyaKa]

Hello!
Our patient BDM-010

Some times ago I've restore lost resitor for reset PULL-UP. And gamepad was repaired

Gamepad works fine a couple years.

Now I've installed hallsensor stick at left and gamepad randomly powered on or not at all

It doesn't turn on more often than it turns on.

Is any point near SIE (CPU) where I can test RESET line from reset button?

At upllup resistor I have 1.8V, at other side of it 0.8V

[Halotestin92]

hello, I got a dualsense bdm 030 with a torn USB socket, the solder pads from the left 4, 6, 8 and 9 were torn off. I regenerated 4, 6 and 8 but 9 probably has no signal because I can't see the path anywhere. Generally, the controller turned on until I soldered a new USB socket (compatible with dualsense). Now after connecting the battery or USB cable it blinks orange twice and doesn't turn on, I've already replaced the Dialog system but still the same. Can someone help?

[EGS2302]

Hello.

I?ve found one missing components on the PCB. Can someone maybe Meassure it for me or tell me what this component is.

Thank You

[RDC]

7.5k

[EGS2302]

Thank You

[Worf]

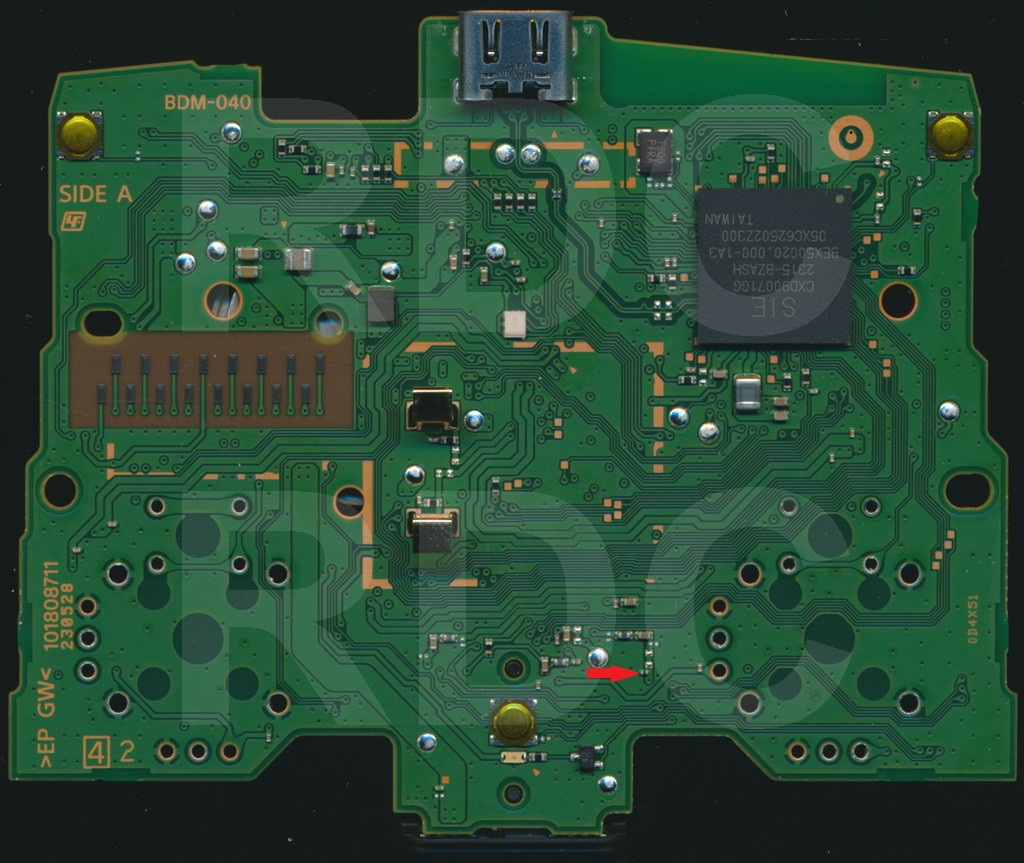

Hi. BDM-040 board, I lost this smd resistor when replacing the analogue joystick, the controller isn't recognised, flashes 3 orange lights and then turns off. What's the value?
